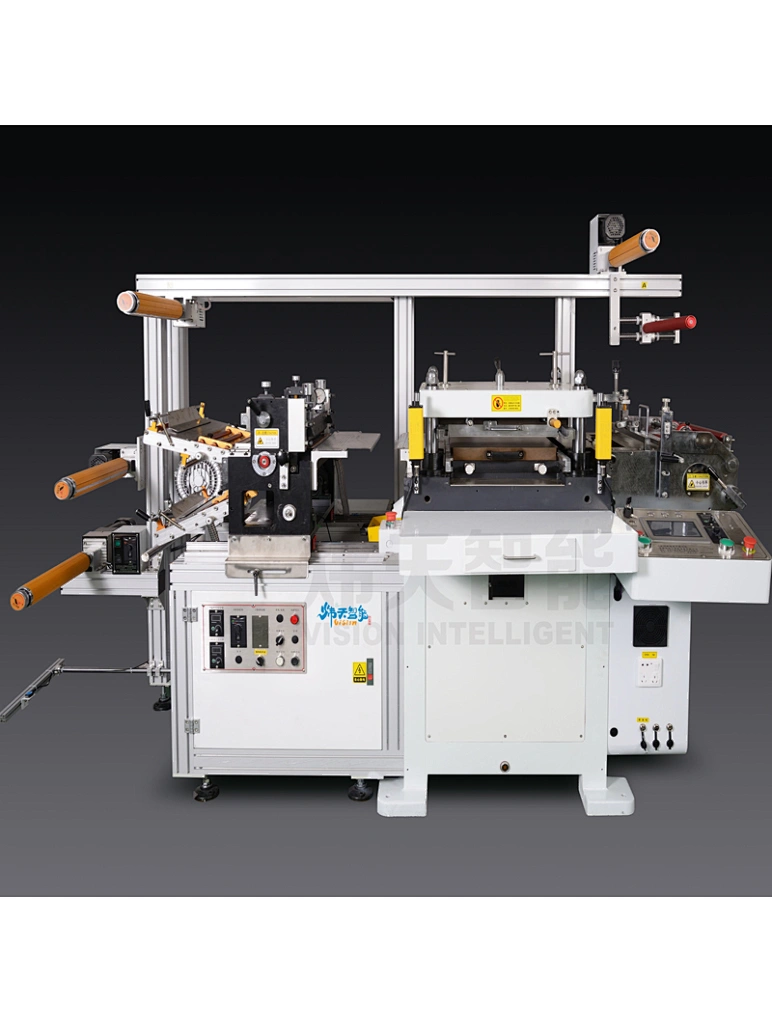

Asynchronization die cutter

Asynchronization die cutter

Model NO. RS-T

1.With in-mold asynchronous function, which can realize traced asynchrony and positioning asynchrony.

2.Double servo drive, low noise, stable pressure, accurate pulling material.

3.Die-cutting host, laminating machine, slicer, can achieve automatic connection.

4.Adopting electronically controlled pressure regulation and automatic lubrication system.

5.QDC dies can be installed

6.Stroke adjustment, one key switch, four kinds of die height selection.

Quantity

Name	RS-T300	RS-T350	RS-T450	Remark
Feed width	310mm	360mm	460mm	high speed precision die cutting
The maximum die cutting area	300mm*250mm	350mm*300mm	450mm*390mm
The maximum operating speed	18000pcs/h	18000pcs/h	12000pcs/h
Stroke of die seat	26mm	26mm	26mm
Stroke regulation quantity	30mm	30mm	30mm
Pulling material precision	±0.03mm	±0.03mm	±0.03mm
Integration seeking precision	75mm-95mm(Adjustable）	75mm-95mm(Adjustable）	84mm-104mm(Adjustable）
Closing height of hardware die	350mm270mm39.5mm	400mm320mm39.5mm	480mm410mm40mm
Dimensions of lower template	350mm270mm29mm	400mm320mm29mm	480mm410mm38mm
Dimensions of upper template	Automatic circulation and oil supply	Automatic circulation and oil supply	Automatic circulation and oil supply
Lubrication mode	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die
Applicable knife die	Auto pressure regulation	Auto pressure regulation	Auto pressure regulation

Name	RS-T300	RS-T350	RS-T450	Remark
Asynchronous feeding width	310mm	360mm	460mm	RST Asynchronization die
Asynchronous feeding precision	±0.03mm	±0.03mm	±0.03mm
Feeding method	Servo feeding	Servo feeding	Servo feeding
Control mode	Magnetic powder control tension	Magnetic powder control tension	Magnetic powder control tension
Rewinding axis	1set	1set	1set
Unwinding axis	2set	2set	2set
				RST Automatic in-die asynchronous die cutting+RSG high-speed machine
Total power	7.5kw	8.5kw	10.5kw
Outline dimensions	2400mm1400mm1700mm	2550mm1500mm1700mm	2550mm1500mm1700mm
Net weight of machine	2000kg	2300kg	2500kg
