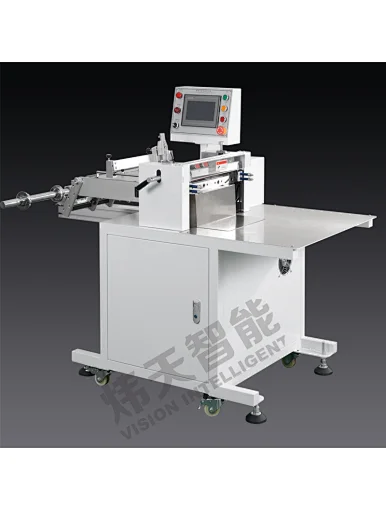

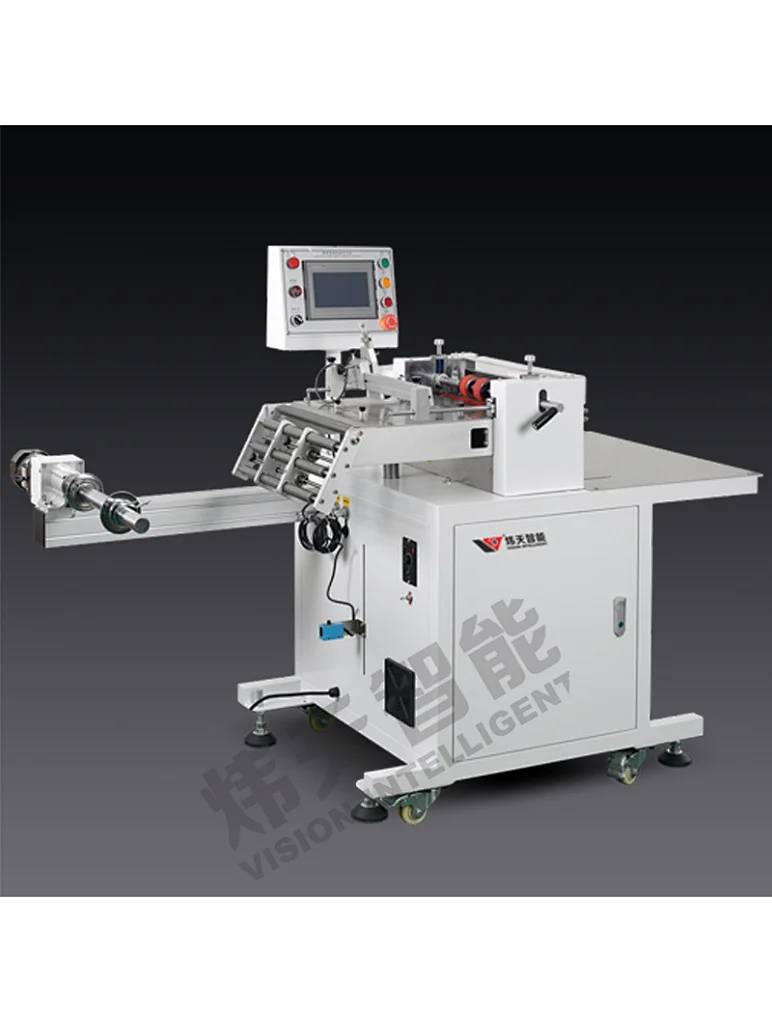

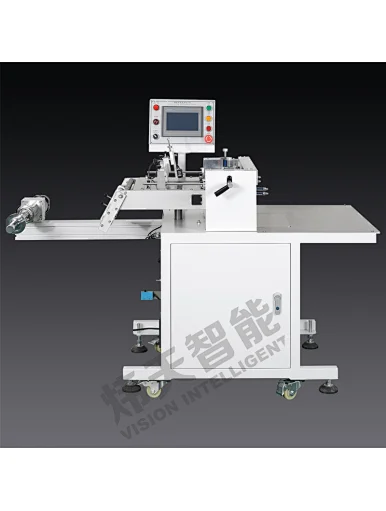

Automatic computer splicer
Automatic computer splicer
RSQ
1. This machine is a professional device of tape processing industry. It has high precision, reliable performance, durability and safety.

2. It can realize automatic and independent splicing automatically and easily.

3. It counts and splices automatically.

4. The maximum splicing speed reaches 180 times per minute.

Seeking target and fixed length splicing:

1. Only length shall be set when splicing by fixed length.

2. Precision is 0.4% of set length.

3. Seeking target splices are used to discharge waste product splices.

4. Any many products can be spliced as one sheet.

5. Trace products automatically or set other marks.

6. Be sure to splice in product gap quickly and in an orderly manner.
Quantity


name

RSQ-350

RSQ-450

The maximum feed width

350mm

450mm

Maximum slice width

300mm

450mm

Maximum Pullingspeed

≤80m/mim

≤50m/min

Maximum slice speed

≤12000pcs/h

≤12000pcs/h

Control mode

Independent servo drawing

Independent servo drawing

Positioning mode

Magic eye

Magic eye

Slicing precision

±0.1mm

±0.1mm

Material quality of rack

Square pass welds

Square pass welds

Outlinedimensions

1750mm*1000mm*1250mm

1750mm*1000mm*1250mm

Total power

1.1kw

1.1kw

Net weight

95kg

100kg



name

RSQ-550

RSQ-650

RSQ-1300

The maximum feed width

550mm

650mm

1200mm

Maximum slice width

500mm

600mm

12000mm

Maximum Pullingspeed

≤80m/mim

≤80m/mim

≤60m/mim

Maximum slice speed

≤12000pcs/h

≤12000pcs/h

≤6000pcs/h

Control mode

Independent servo drawing

Independent servo drawing

Independent servo drawing

Positioning mode

Magic eye

Magic eye

Magic eye

Slicing precision

±0.1mm

±0.1mm

±0.15mm

Material quality of rack

Square pass welds

Square pass welds

Square pass welds

Outlinedimensions

1200mm*1300mm*1000mm

1200mm*1400mm*1000mm

1700mm*1850mm*1000mm

Total power

2.5kw

2.5kw

3.5kw

Net weight

200kg

200kg

200kg
