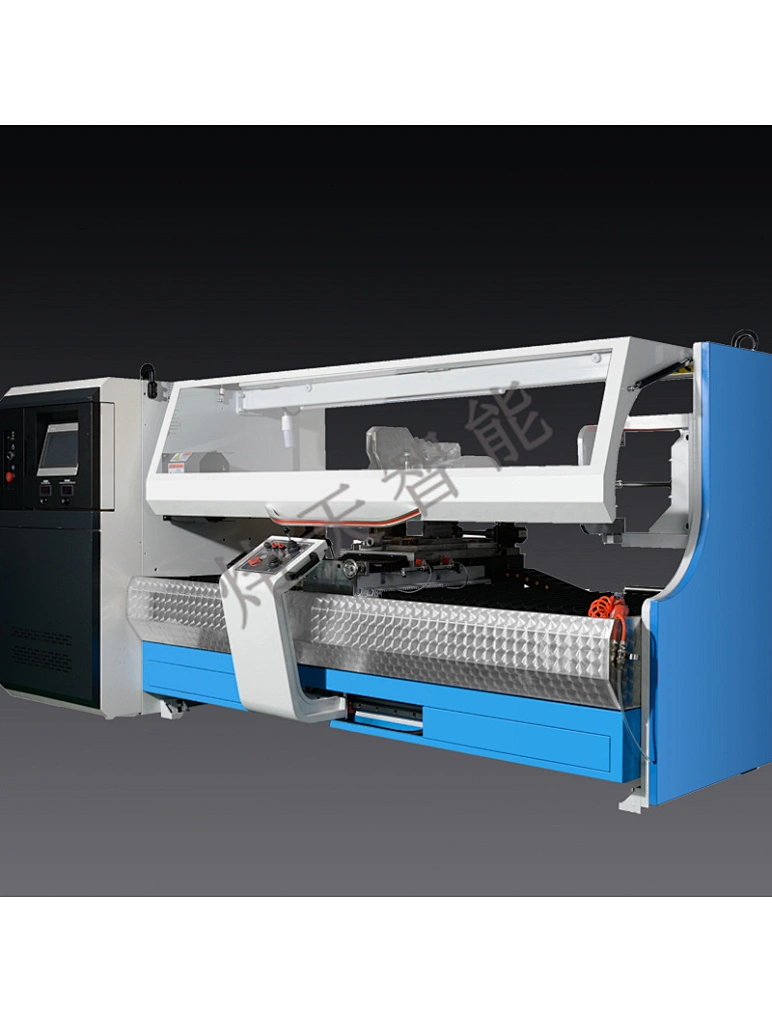

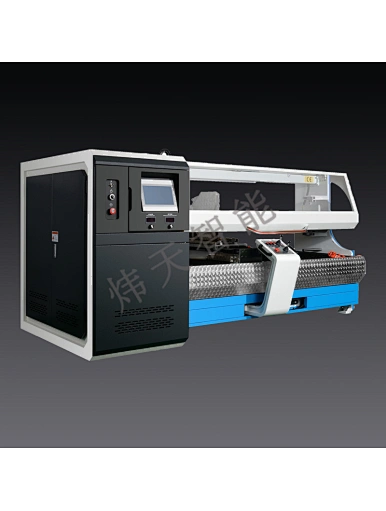

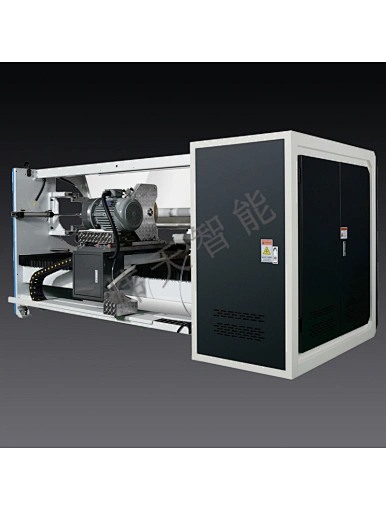

Automatic slitting machine
SLM-Q
1.The whole machine is with exclusive smooth system, which can extent the machine’s usage life.
2.Electrical equipment, Japan Siemens module, China Taiwan touch screen, Schneider handle switch to make the machine stable.
3. Use the latest improved operating system to make the device easier to operate.
4.The ball screw, the guide roller is all imported, and the accuracy is more guaranteed.
5.Signal transmission line is a dedicated bend-resistant shielded towline cable to reduce the failure in daily use.
6. Mainly for the slitting of the varnish film materials
2.Electrical equipment, Japan Siemens module, China Taiwan touch screen, Schneider handle switch to make the machine stable.
3. Use the latest improved operating system to make the device easier to operate.
4.The ball screw, the guide roller is all imported, and the accuracy is more guaranteed.
5.Signal transmission line is a dedicated bend-resistant shielded towline cable to reduce the failure in daily use.
6. Mainly for the slitting of the varnish film materials
Quantity
slitting for varnish glue, double-sided tape
| NO. | Name | SLM-Q1300 |
| 1 | web width | 1400mm |
| 2 | inner diameter of the paper core | 76mm(25mm-76mmCan be customized） |
| 3 | Max. unwind diameter | 320mm |
| 4 | Voltage | 380V 50HZ(Can be customized220V) |
| 5 | cutting width | 1mm-1350mm |
| 6 | cutting precision | ±0.1mm |
| 7 | Machine size | 2.9m*1.3m*1.5m |
| 8 | Machine weight | 1500kg |
| 9 | Machine total power | 8kw |
