Brief on Vision Solventless Laminator

Flexible Packaging Project

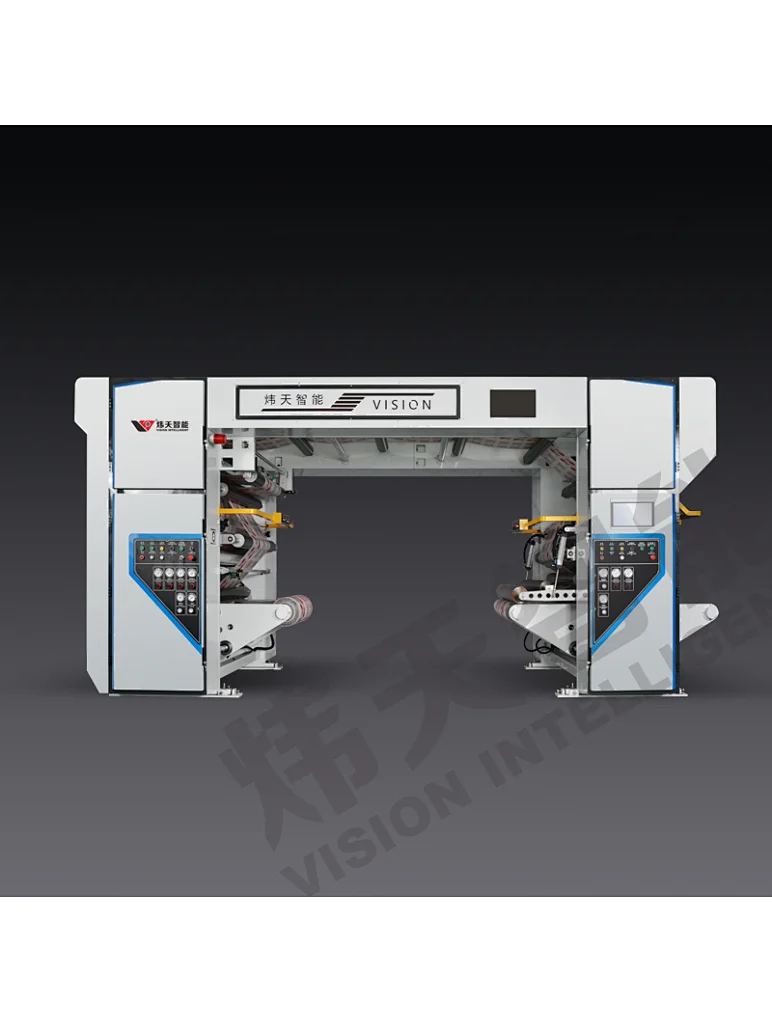

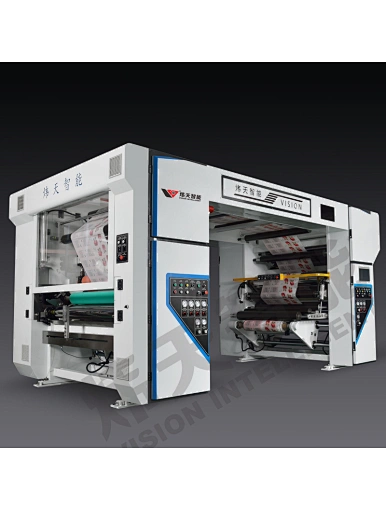

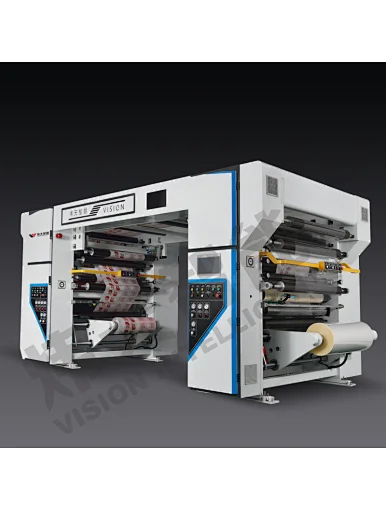

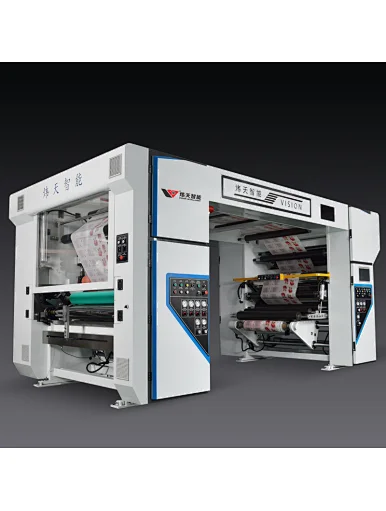

Brief on Vision Solventless Laminator
RSL1250B—400
1.Seven synchronous servo motors bring more accurate performance on tension control (less than 3N),more even coating, as well as more stable running and better results of lamination film or foil. Offering lower waste.

2.All key Steel Rollers which surface are all sprayed with tungsten carbide. That brings more wearable and better corrosion
resistant.

3.Special patented design for rubber roller changeover by handwork,safer and easier.

4.Dual protection of design for preventing hands-clamping when rubber roller cleaning,safer.

5.Suitable for PET laminating with AL foil if the adhesives is rightly selected.

6.Water Cooling system is designed for more choice on processing when need.

7.Special Low Friction Air Cylinders are applied for dancing roller of tension control.
Quantity
NameUnitRSL1250B—400

Web Width

mm

700~1250

Rollers Length

mm

1350

Max.Mechanical Speed

m/min

400

Unwinding and winding Diameter

mm

Max.φ800

Unwinding Paper Core , ID

mm

φ76(3”) & φ152(6”)

Winding Paper Core, ID

mm

φ152(6”) & φ76(3”)

 Glue cylinder  OD.

mm

φ150

Metering Roller OD.

mm

φ188

Adhesives Transferring Roller, OD.

mm

φ150

Coating Roller Diameter

mm

φ188

Diameter of Coating Pressure Rubber Roller

mm

φ160

Adhesives Coating Grammage

g/m2

1.0~5

Adhesives Type

Solvent-less Adhesives

Lamination Roller OD

mm

φ210

OD of Laminating Pressure Rubber Roller

mm

φ140

Cooling Roller OD

mm

φ240

Evenness on Winding Web Edge

mm

±1

Tension Tolerance

KG

±0.3

Tension Range

KG

3~30

Power Required

V

380v, 3 Phase 5 Lines,
Voltage Wave ±10%

Total Power around

KW

48

Overall approximate size (L*W*H)

mm

5250×2650×(2500~2800)

Machine Weight (approx.)

t

8
