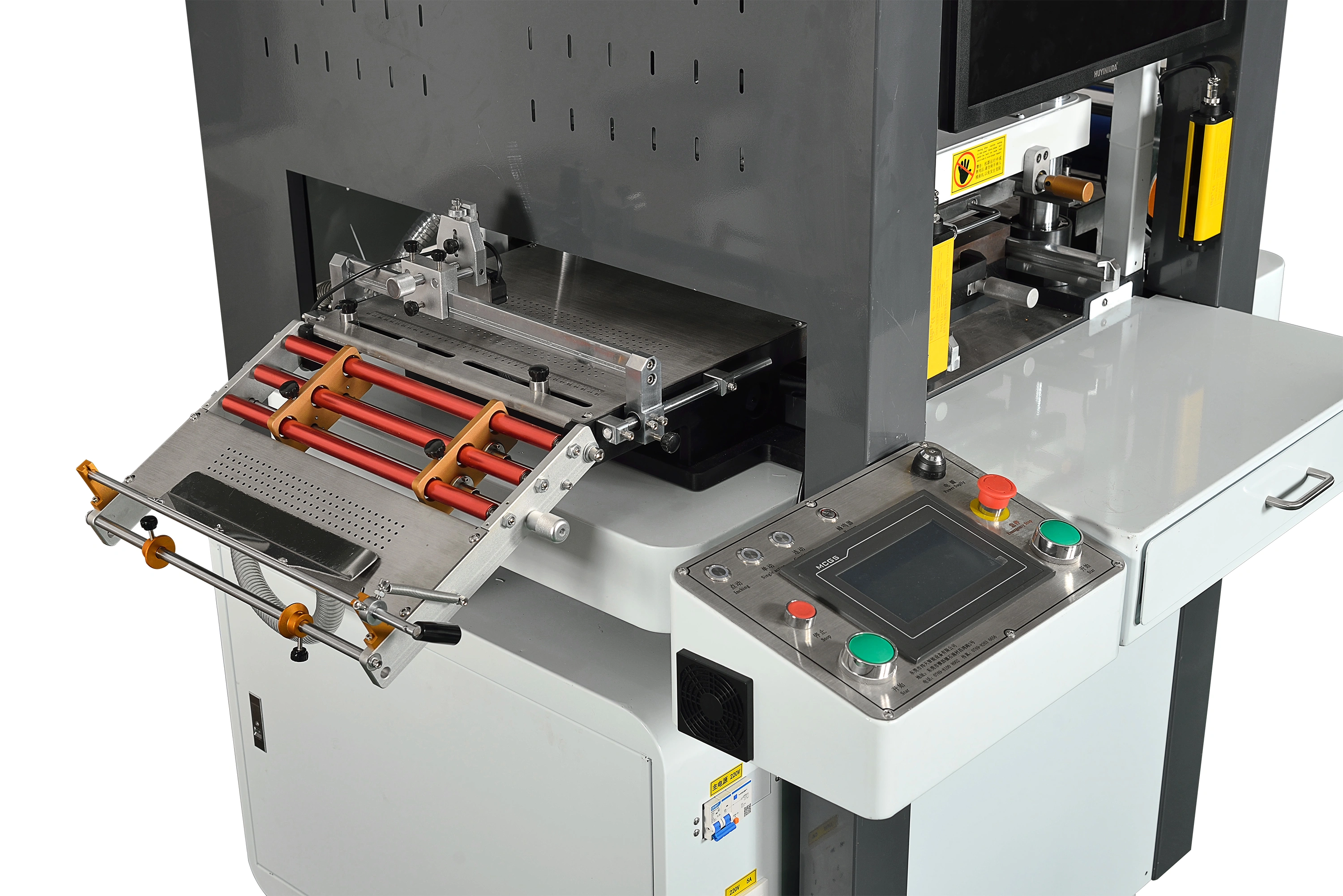

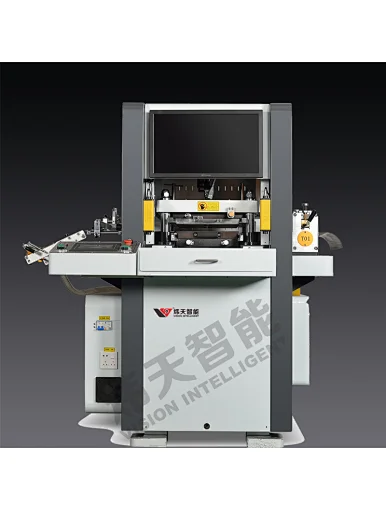

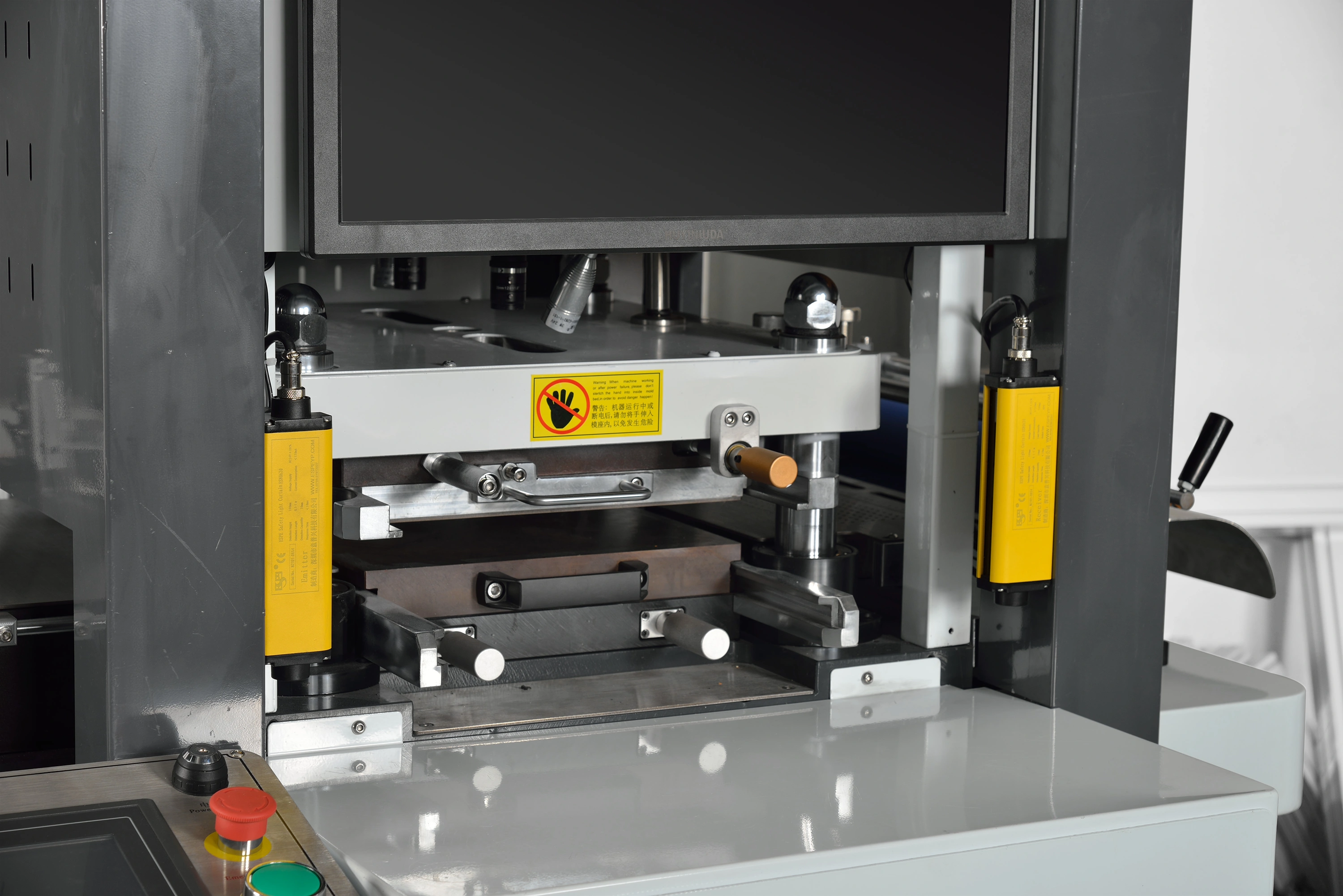

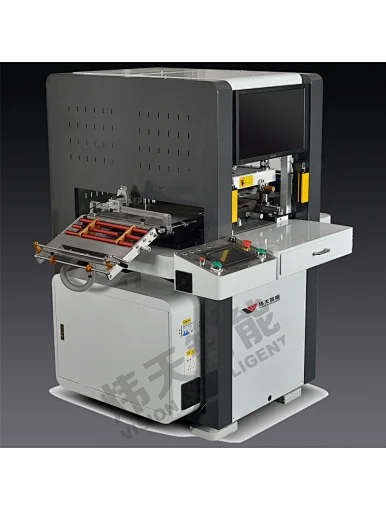

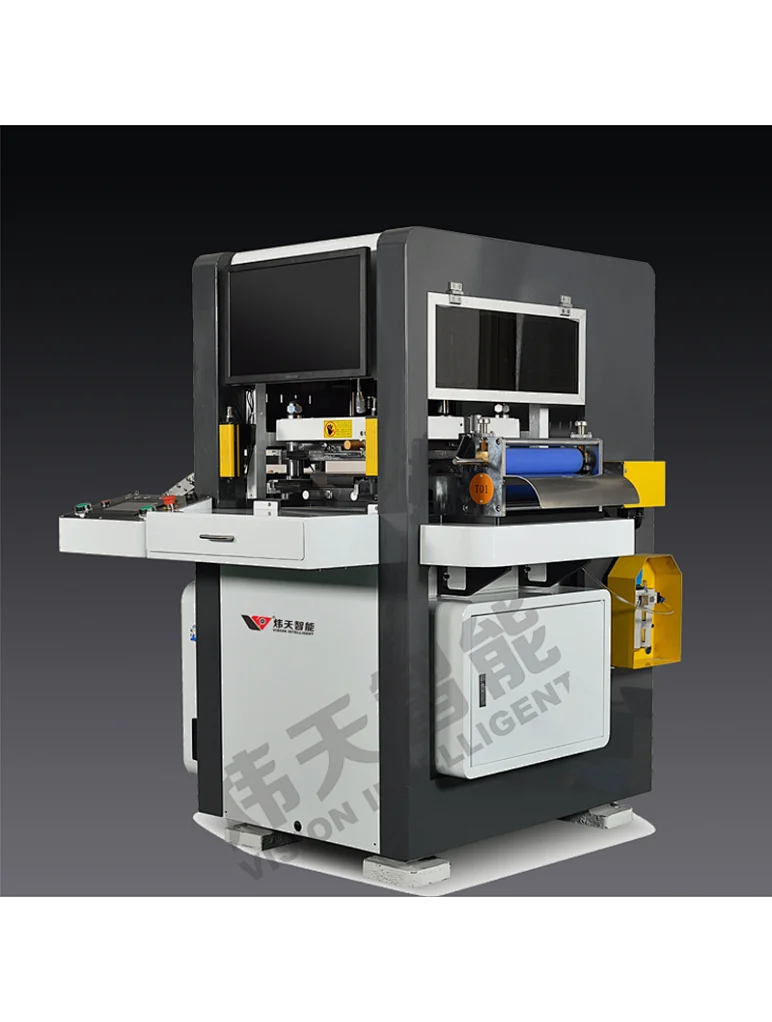

CCD camera inspection die cutting machine

CCD camera inspection die cutting machine
RS-C
1.Mold-cut products suitable for roll printing and precision requirements

2.Equipped with CCD visual identification alignment and high speed positioning system detection target deviation position

3.Automatically move the XY coordinates to the corrected fixed position
Quantity



name

RSC-350

RSC-450

Remark

Feed width

360mm

460mm

RSG high speed precision
die cutting

The maximum die cutting area

350mm*300mm

450mm*390mm

The maximum die cutting area

10000pcs/h

10000pcs/h

Stroke of die seat

26mm

26mm

Stroke of die seat

30mm

30mm

Pulling material precision

±0.03mm

±0.03mm

Integration seeking precision

75mm-95mm(Adjustable)

84mm-104mm(Adjustable)

Closing height of hardware die

400mm*320mm*40mm

480mm*410mm*40mm

Dimensions of lower template

400mm*320mm*29mm

480mm*410mm*38mm

Dimensions of upper template

Automatic circulation and oil supply

Automatic circulation and oil supply

Lubrication mode

Wooden plate die, rubber plate die,
AB die, hardware die, QDC die,
corrosion die,
etching die

Wooden plate die, rubber plate die,
AB die, hardware die,
 QDC die, corrosion die,
 etching die

Lubrication mode

Auto pressure regulation

Auto pressure regulation

Inspection width

290mm

360mm

YDPInspection

Correction accuracy

±0.1mm

±0.1mm

Pushing way

Servo pushing

Servo pushing

control mode

CCD Correction

CCD Correction

Total power

5.5kw

9.5kw

Outline dimensions

1650mm*1400mm*1700mm

1900mm*1600mm*1700mm

Net weight of machine

1900kg

2100kg
