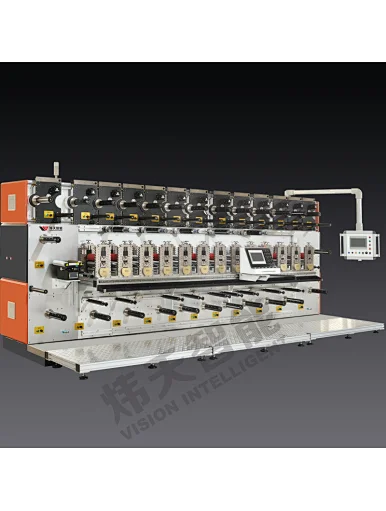

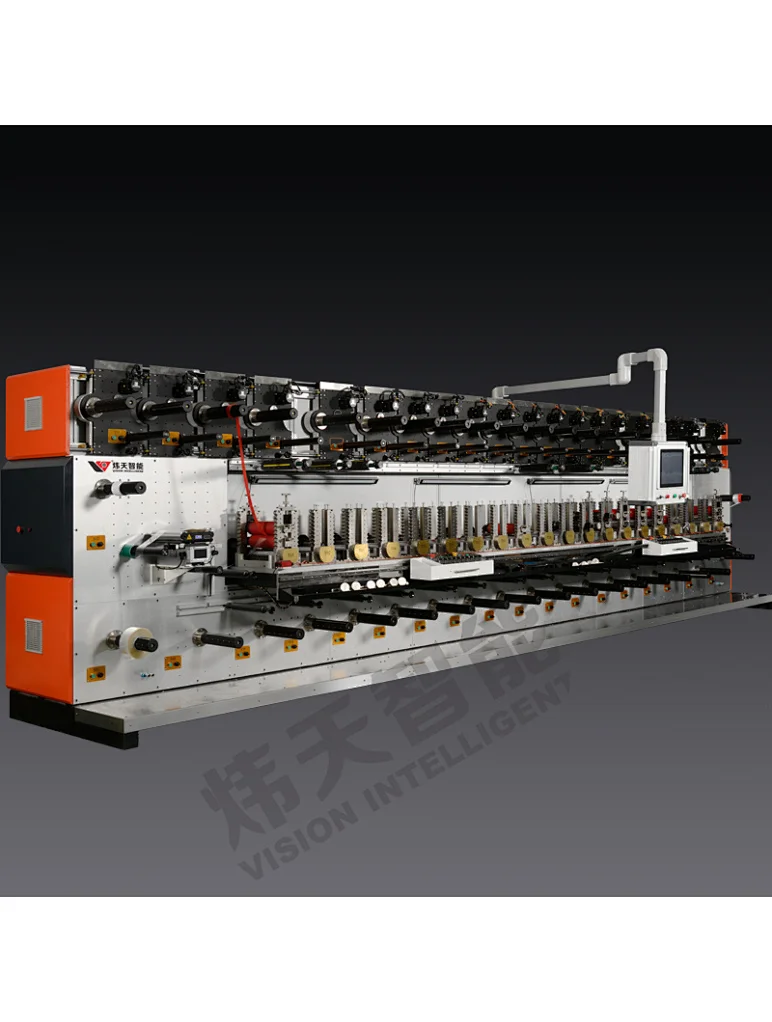

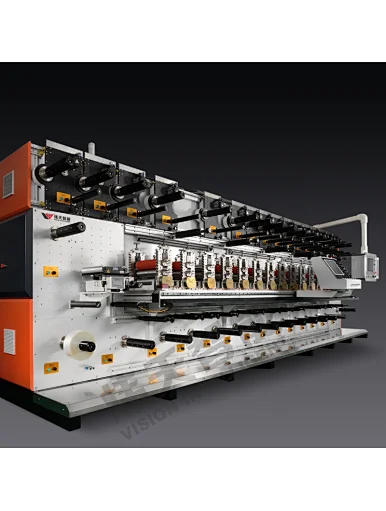

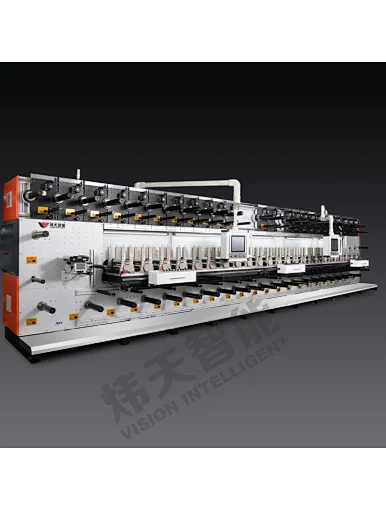

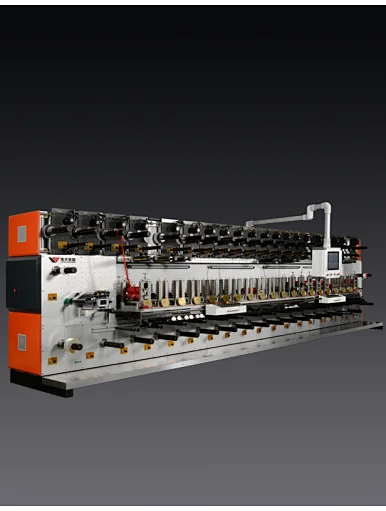

Circular knife die cutter
RS-Y
1
1.Constant tension control function "Dual control system of programmed automatic control and tension built-in sensor control, adjustable range 0~100N/m.

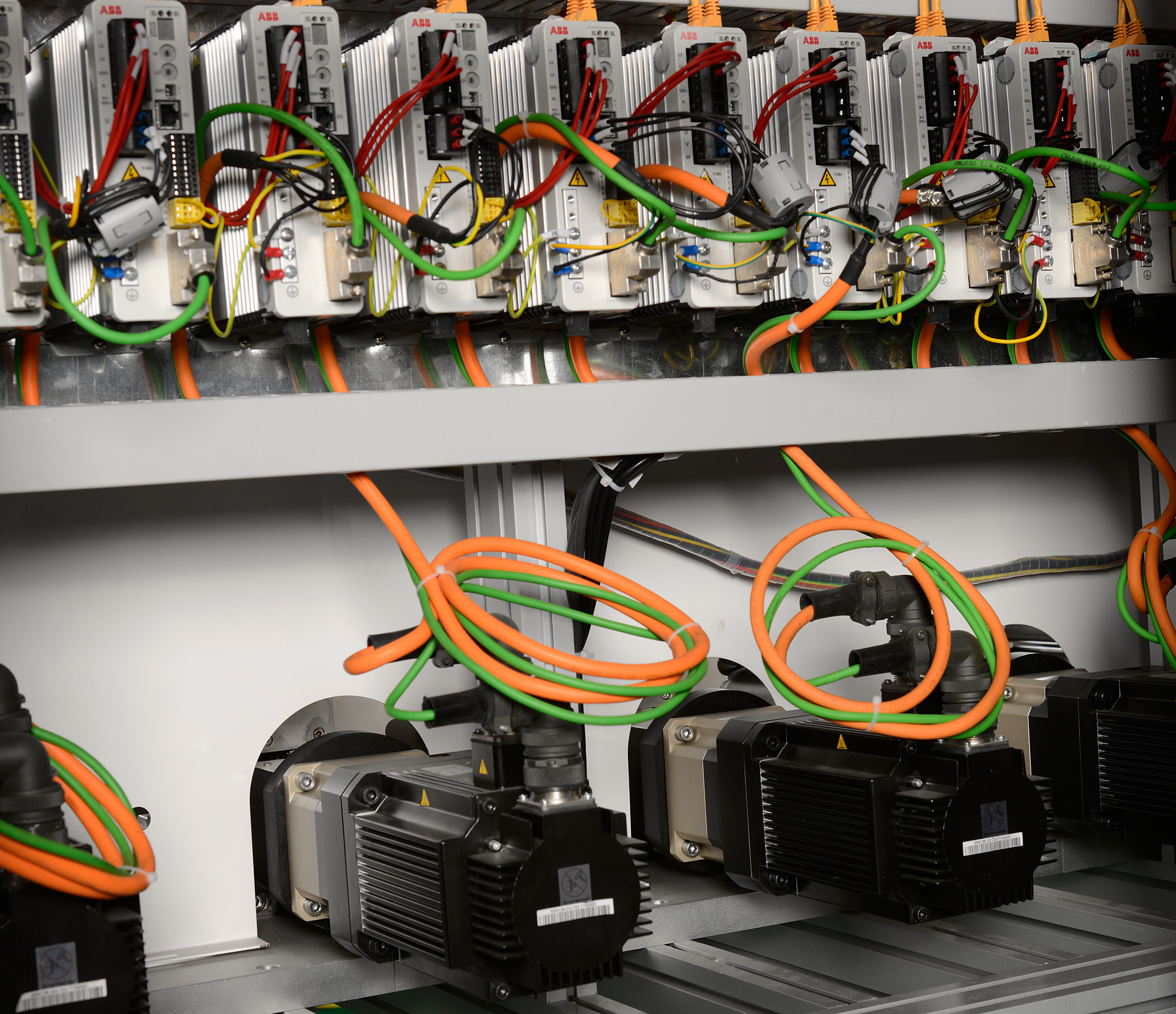

2. Independent servo drive control for each material axis "Power not less than 1kw, using ABB motors of leading international brands, quality reflected in the specification

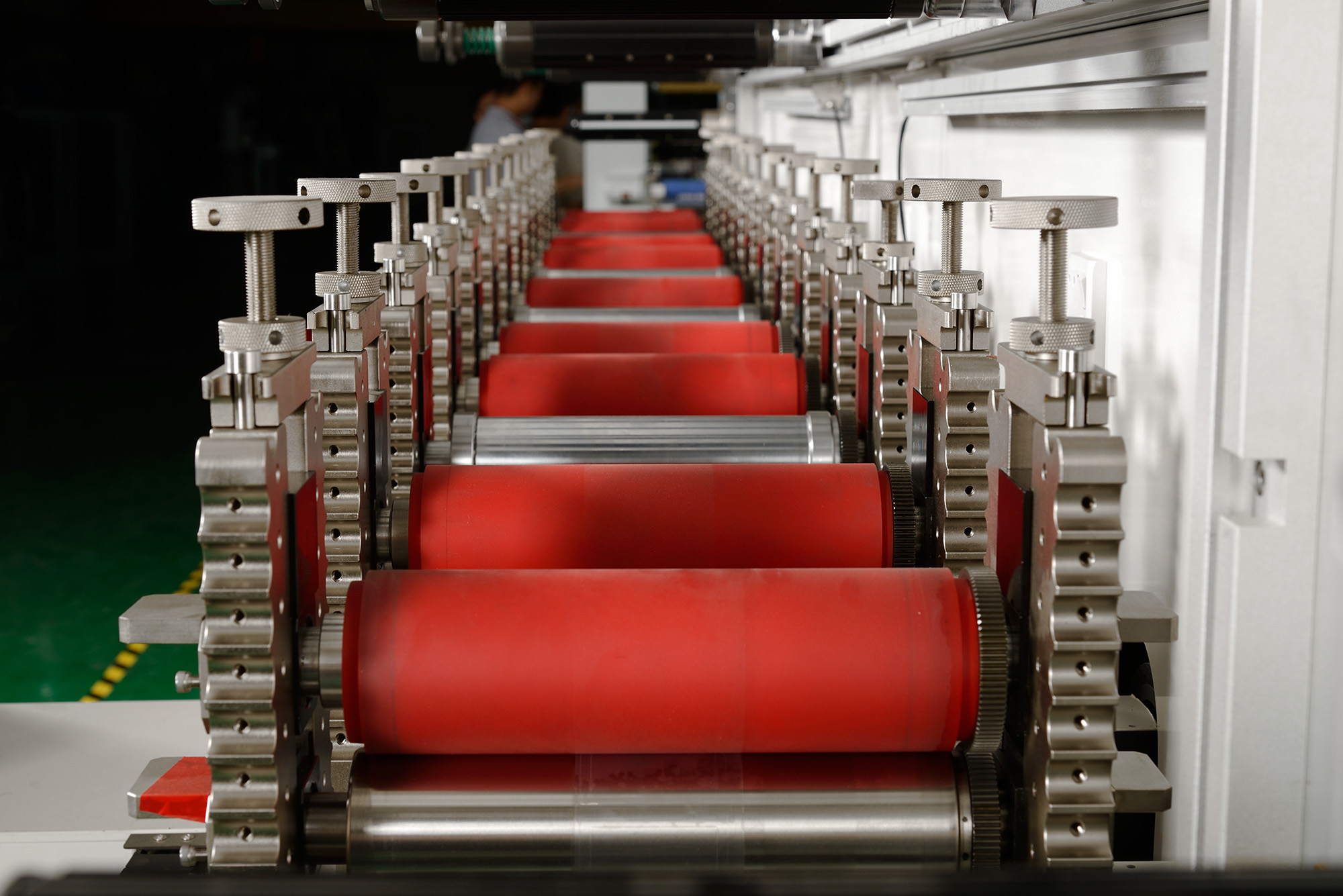

3.Independent servo motor control for each knife holder" power not less than 2kw, using leading international brand ABB motor, quality reflected in the specification,
4.Product counting & length metre counting function Yes
600 sets of order data can be stored.
5.Asynchronous / laminating function Yes
Fault alarm Fault alarm is shown on the display for troubleshooting
Independent operation of two
2. Independent servo drive control for each material axis "Power not less than 1kw, using ABB motors of leading international brands, quality reflected in the specification
3.Independent servo motor control for each knife holder" power not less than 2kw, using leading international brand ABB motor, quality reflected in the specification,
4.Product counting & length metre counting function Yes
600 sets of order data can be stored.
5.Asynchronous / laminating function Yes
Fault alarm Fault alarm is shown on the display for troubleshooting
Independent operation of two
Quantity
| name | RS-Y13T | RS-Y16T | RS-Y20T | RS-Y24T | RS-Y32T |
| Station die-cutting（set） | 13 | 16 | 20 | 24 | 32 |
| Receiving and discharging axis（set） | 26 | 32 | 40 | 48 | 64 |
| Die-cutting servo motor（1.5KW） | 13 | 16 | 20 | 24 | 32 |
| Die-cutting servo motor（0.75KW） | 26 | 32 | 40 | 48 | 64 |
| Max. speed （m/min) | 60 | 60 | 60 | 60 | 60 |
| Material type | inch | inch | inch | inch | inch |
| Reel diameter（inch） | 3 | 3 | 3 | 3 | 3 |
| Max. material weight（kg) | 20 | 20 | 20 | 20 | 20 |
| Max. material width （mm) | 250 | 250 | 250 | 250 | 250 |
| Range of teeth for loading | Non-simultaneous loading 600 mm, adjacent simultaneous loading 400 mm | Non-simultaneous loading 600 mm, adjacent simultaneous loading 400 mm | Non-simultaneous loading 600 mm, adjacent simultaneous loading 400 mm | Non-simultaneous loading 600 mm, adjacent simultaneous loading 400 mm | Non-simultaneous loading 600 mm, adjacent simultaneous loading 400 mm |
| Length, width, height Round knife teeth pitch | 1/8“ 3.175 | 1/8“ 3.175 | 1/8“ 3.175 | 1/8“ 3.175 | 1/8“ 3.175 |
| Rated voltage（V) | 380V-50HZ | 380V-50HZ | 380V-50HZ | 380V-50HZ | 380V-50HZ |
| Total power（KW) | 39 | 48 | 60 | 72 | 96 |
| Safety light curtain | Optional | Optional | Optional | Optional | Optional |
| Display screen | 10 | 10 | 10 | 10 | 10 |
