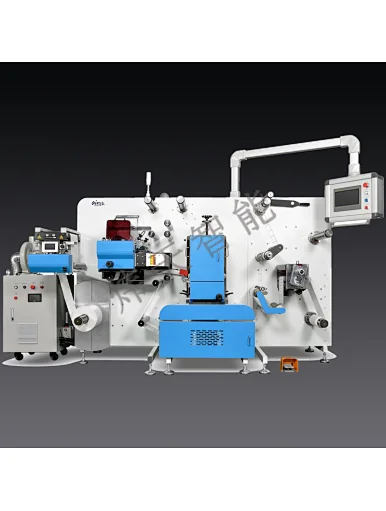

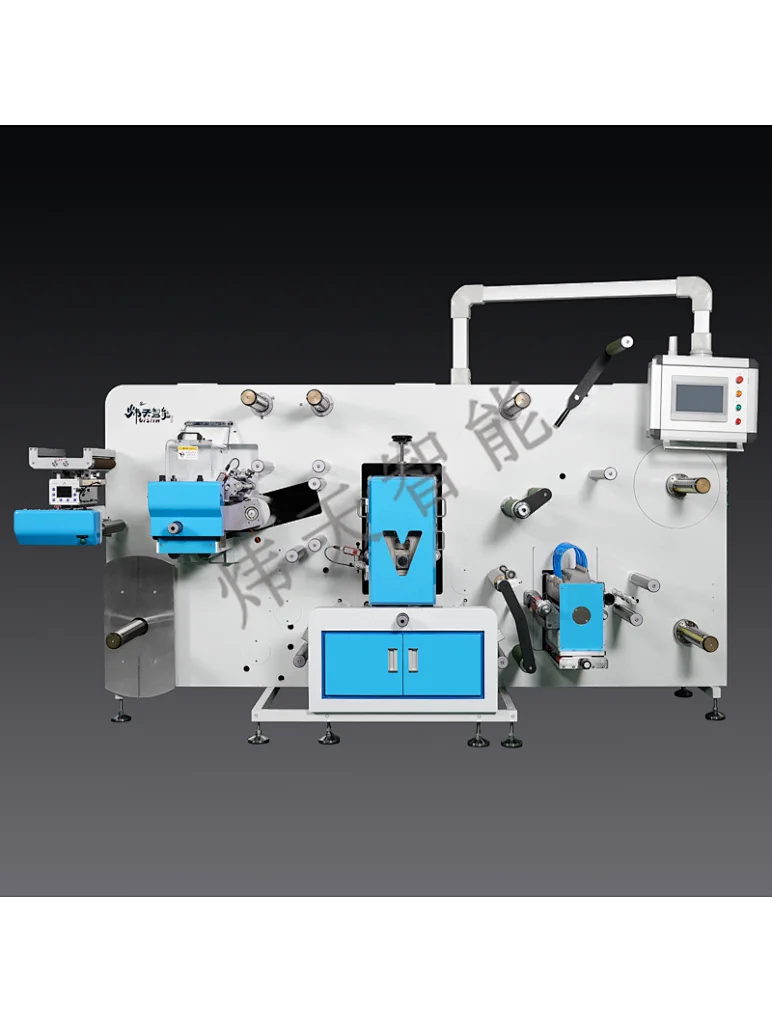

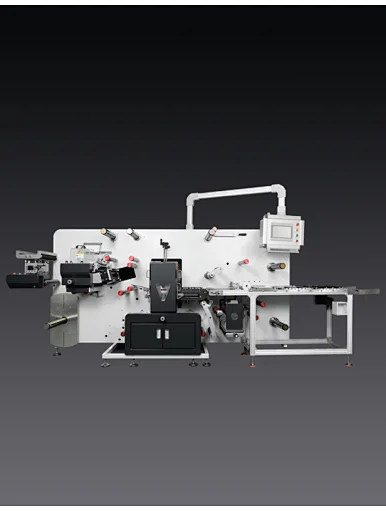

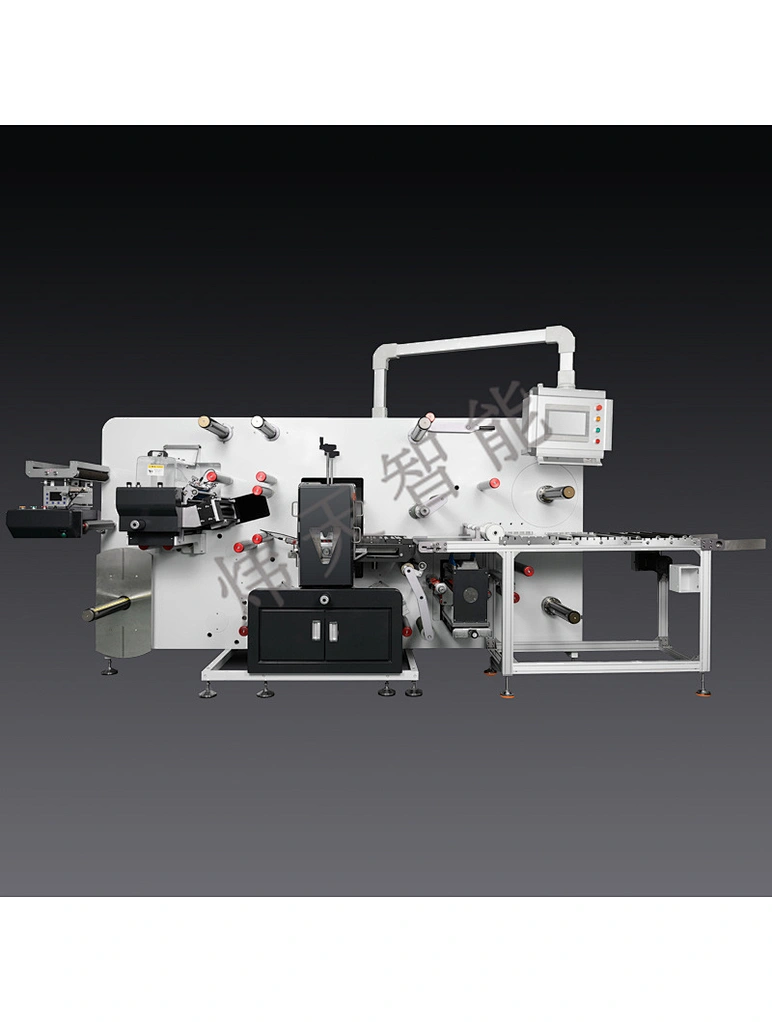

Digital finishing machine
RDF
1
1.All servo motor control
2.Print, cold foil, varnish and laminate
3.UV dryer

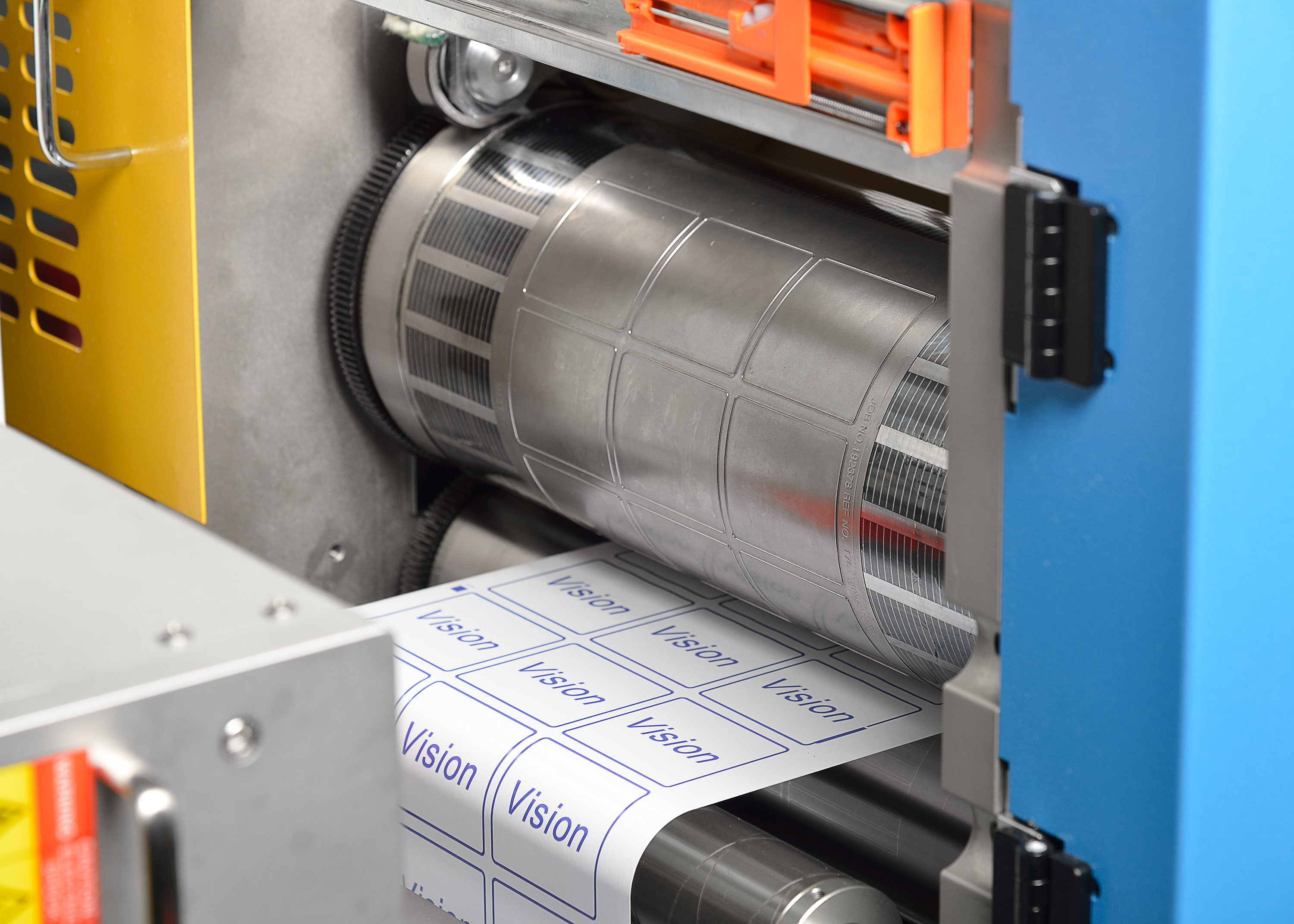

4.Full rotary and semi-rotary exchange

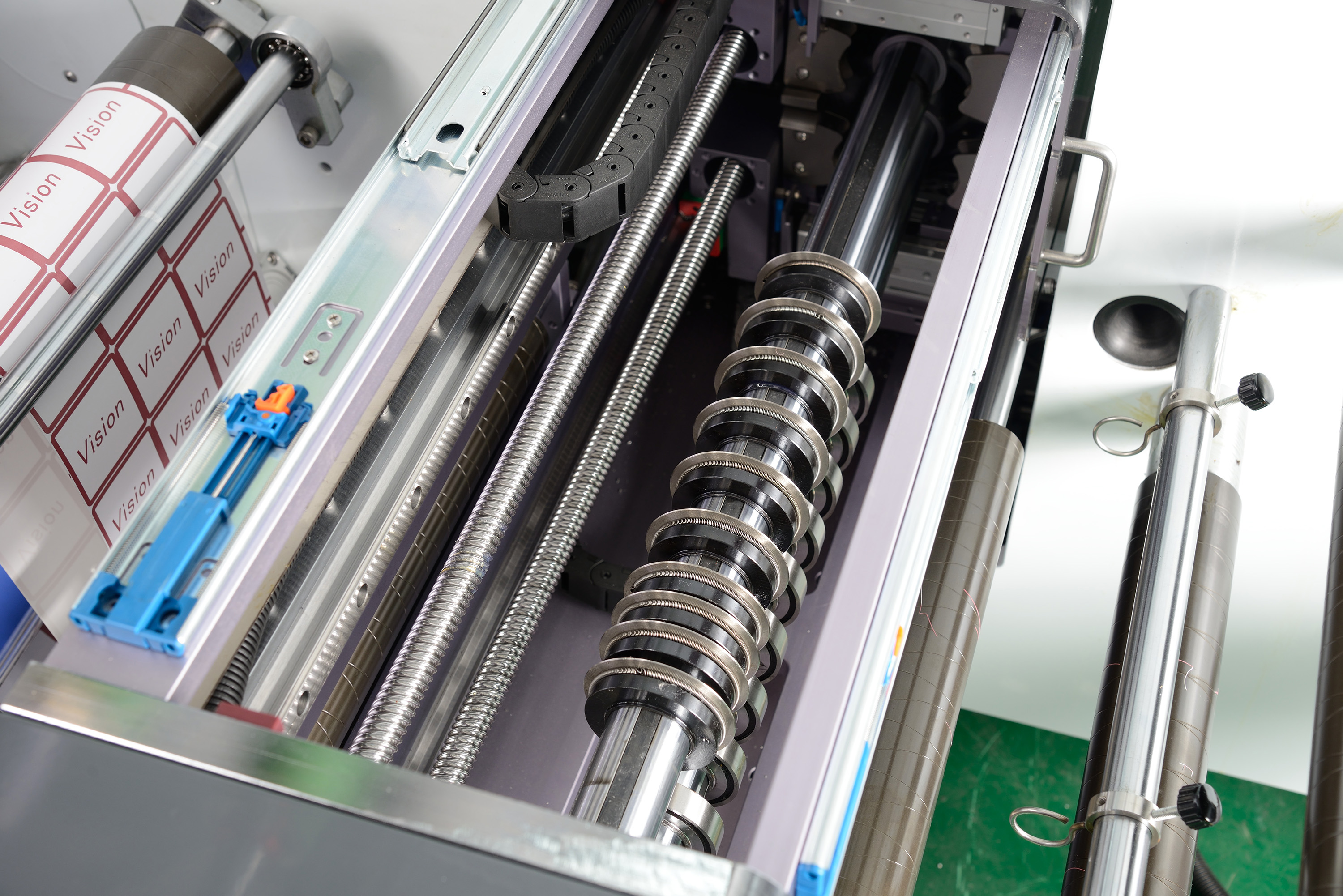

5.Shear knife and razor knife slitting
6.Servo control rewind shaft, bidirectional running
7.Online diagnosis and remote function
8.In line with digital printing system (HP, Xeikon etc.)
9.Optional on: roll lifter, web cleaner, corona, hot air drying, gap master, automatic slitting, IML, sheeting...etc.
2.Print, cold foil, varnish and laminate
3.UV dryer
4.Full rotary and semi-rotary exchange
5.Shear knife and razor knife slitting
6.Servo control rewind shaft, bidirectional running
7.Online diagnosis and remote function
8.In line with digital printing system (HP, Xeikon etc.)
9.Optional on: roll lifter, web cleaner, corona, hot air drying, gap master, automatic slitting, IML, sheeting...etc.
Quantity
Name | Unit | RDF330 | RDF420 |
Max. Roll Width | mm | 350 | 440 |
Max. Paper Width | mm | 330 | 420 |
Max. Unwind Diameter | mm | 800 | 800 |
Max. Rewind Diameter | mm | 600 | 600 |
Max die-cutting Speed(rotary) | m/min | 0~120 | 0~120 |
Max die-cutting Speed(semi-rotary) | m/min | 0~60 | 0~60 |
Die-cutting Accuracy | mm | ±0.15 | ±0.15 |
Max die cutting repeat length | mm | 457 | 457 |
Optional magnetic cylinder | T | 60-204 | 60-204 |
Standard magnetic cylinder | T | 176 | 176 |
Total power | Kw | 20 | 20 |
Dimension | mm | 3900 x 1700 x 2000 | 3900 x 1800 x 2000 |
Weight | Kg | 2800 | 3000 |
