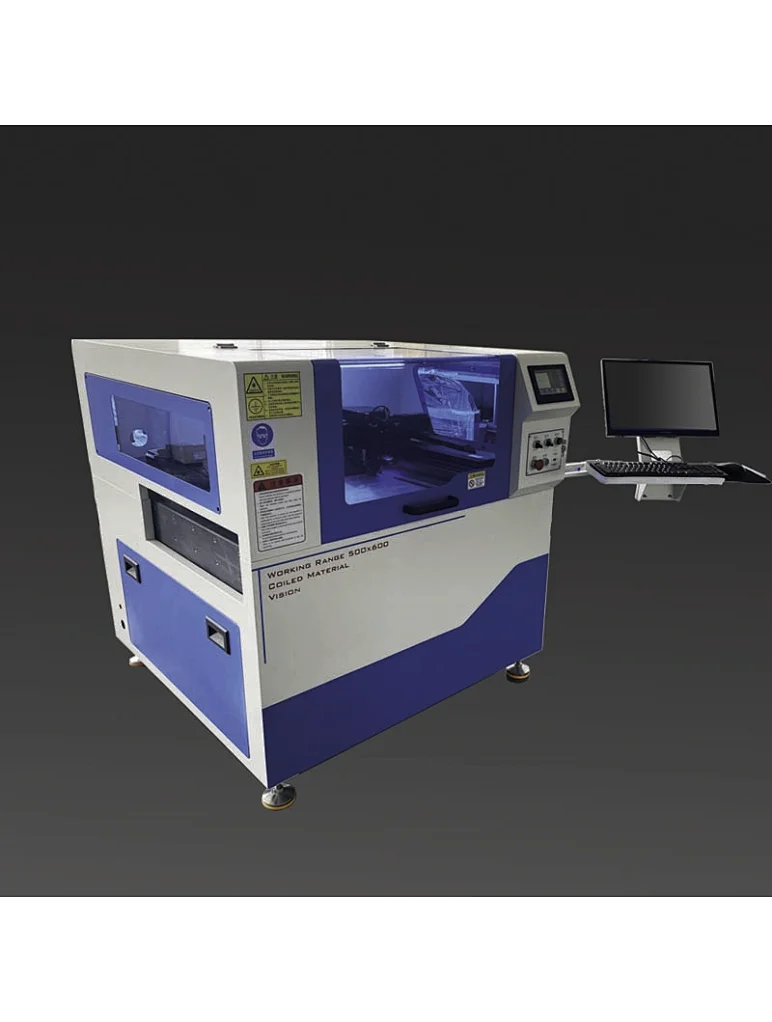

①The machine is a machine that uses a CO2 laser beam with a wavelength of 9.3μm to focus and fuse plastic-type films, combined with a precision-grade ball screw and a graphic track travel mechanism made up of a precision marble platform with an extremely small coefficient of volume expansion to complete the cutting function.

②Adopt the US new tax CO2 RF laser generator; the RF driver and laser cavity are integrated, thus forming a compact and robust laser generator, which can work in various harsh environments and meet 7x24 hours trouble-free production; the laser is air-cooled, saving you from all the worries caused by coolant.

③Wavelength photoelectric optics are used to ensure efficient transmission and low loss of optical path.

④Precision ball screw and slide rail are all made of Taiwan TBI grinding precision grade, high precision and long life; let the equipment keep running with high precision without decay.

⑤The machine is equipped with exhaust gas extraction pipeline, which can extract the exhaust gas generated during the material fusing process to the gas purification equipment to ensure that the workshop is free from exhaust gas pollution.

⑥Excellent laser control system with separate control of beam power and frequency can adapt to the cutting of various materials; seamless switching of CorelDRAW and AutoCAD documents for graphic editing; cutting parameters can be set according to line colour for full break, half break and engraving processing of film type materials. The system integrates CCD vision function, which can fully-automatically grasp the target and carry out secondary register processing with a register accuracy of up to 0.05mm.

⑦Servo motor adopts Delta motor Σ-7 series, 24-bit encoder, high resolution, to meet the requirements of high precision alignment.
Adapted to a wide range of film materials, such as: PET/EVA/OCA/polarising film/diffusion film/brightening film/ESR/anti-peep film/even light film/explosion-proof film/TPU/PP/FPC auxi
Quantity
NO.

Name

WT6050

WT8070

1

Feed width

500mm

700mm

2

Cutting range

600(X)x500(Y)mm

800(X)x700(Y)mm

3

Cutting speed

0~800mm/s

0~500mm/s

4

Laser power

30/60W

30/60W

5

Laser wavelength

9.3μm

9.3μm

6

Energy control

0~100%software setting

0~100%software setting

7

Laser Type

CO2 Metal Tube RF Lasers

CO2 Metal Tube RF Lasers

8

Laser Heat Dissipation

Air-cooled

Air-cooled

9

Slit settings

Colour layering settings

Colour layering settings

10

Cutting accuracy

≤0.05mm

≤0.05mm

11

Positioning accuracy

≤0.02mm

≤0.03mm

12

Suction cup type

Vacuum adsorption

Vacuum adsorption

13

Graphic format

DXF、BMP、AI、DST、PLT

DXF、BMP、AI、DST、PLT

14

Software support

CorelDRAW、AutoCAD

CorelDRAW、AutoCAD

15

Total power

4.4KW(include feeding)3.65KW(without feeding)

4.4KW(include feeding)3.65KW(without feeding)

16

Machine size

2100(L)x1900(W)x1900(H)

2300(L) x 2100(W) x 1900(H)

17

Overall weight

1300kg

1500kg
