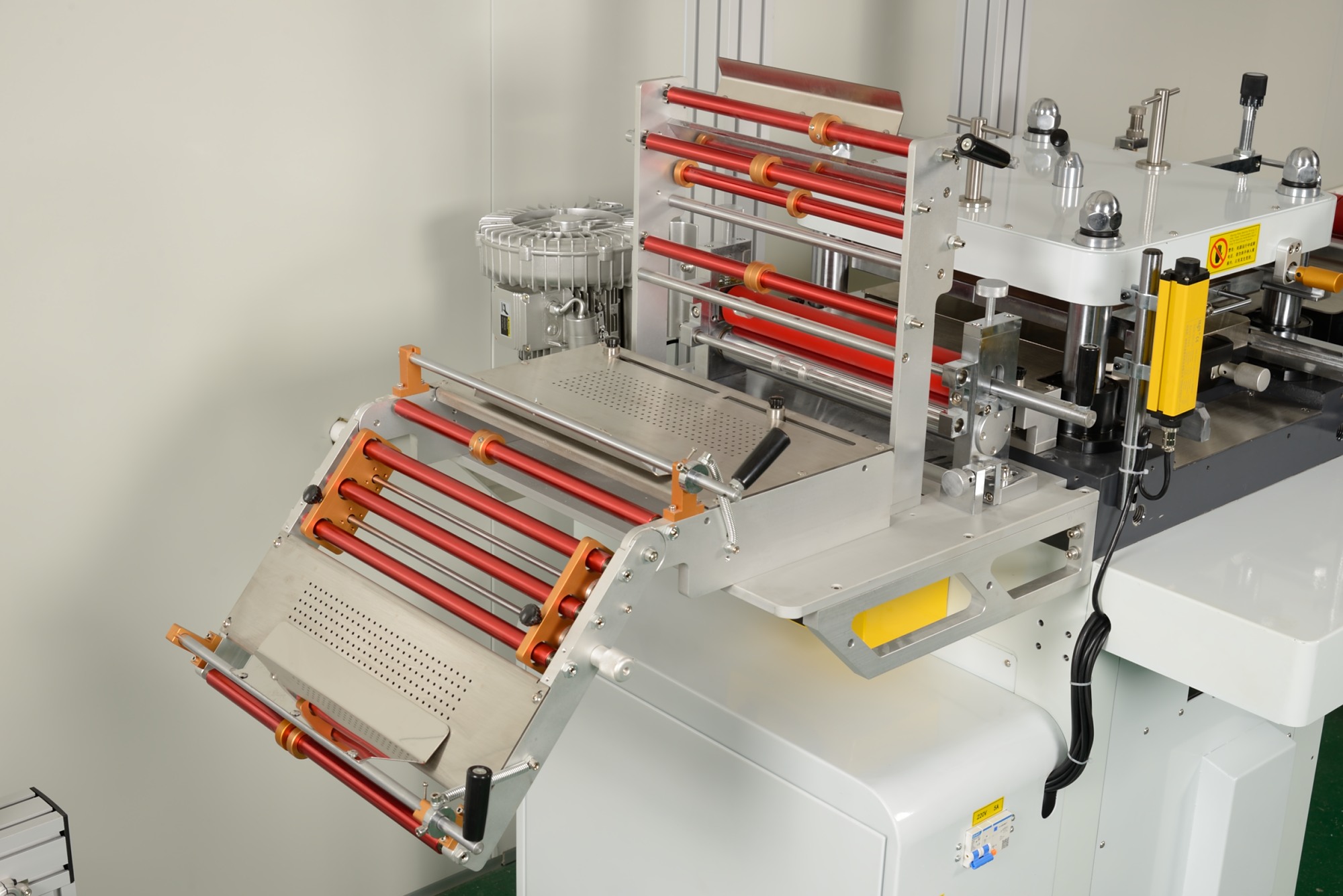

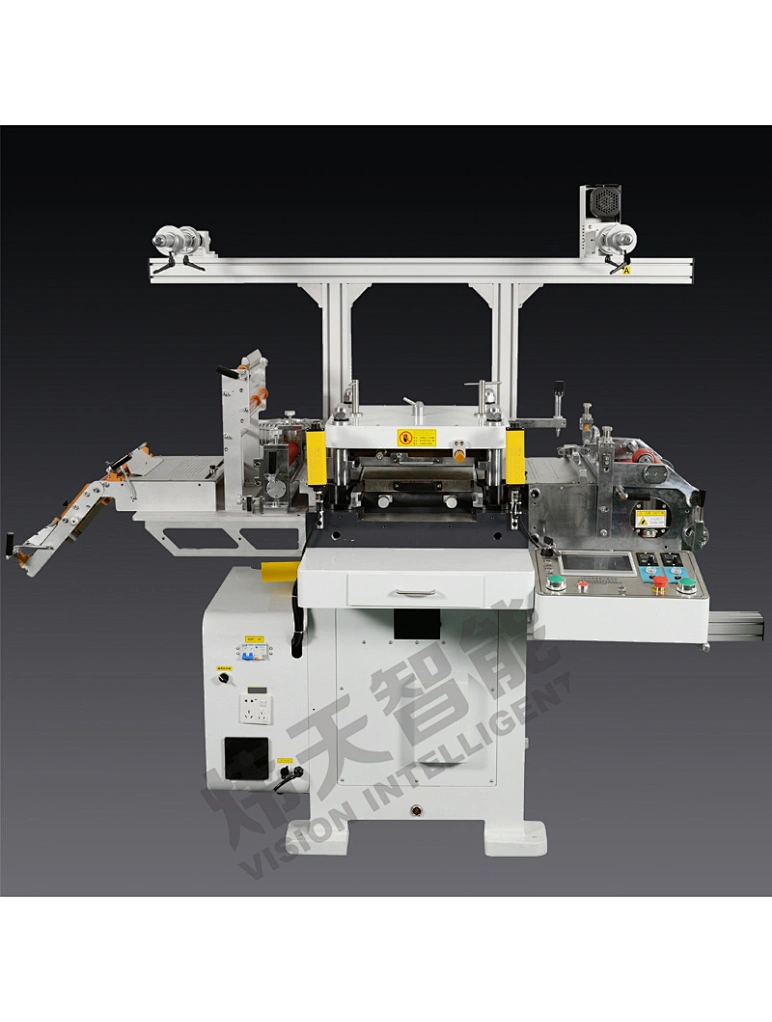

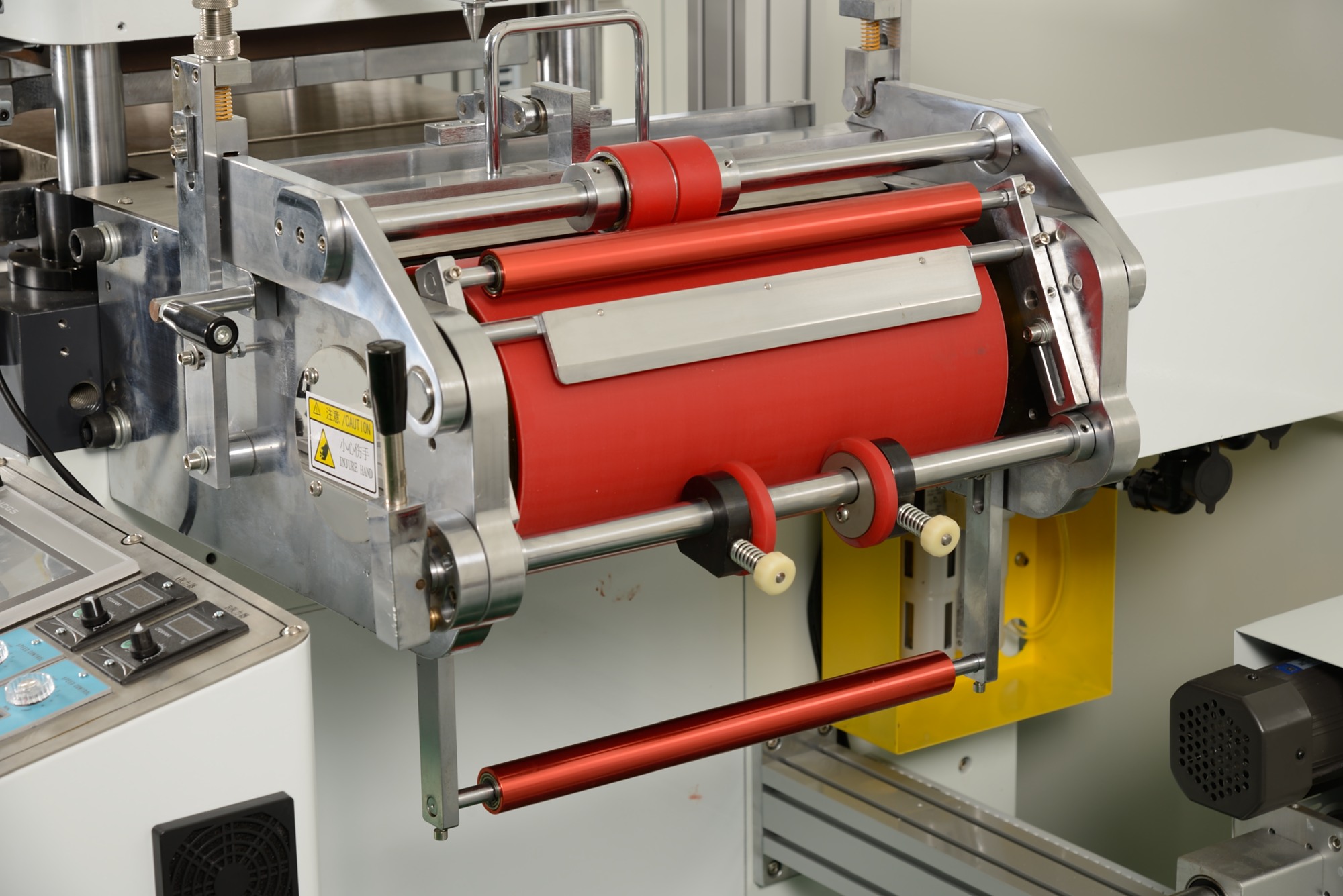

High Speed Die Cutting Machine

High Speed Die Cutting Machine

Model NO. RS-D

1. Single-punch use, stable pressure and strong punching force.

2. Automatic oil supply system reduces mechanical wearing.

3. Compact size and low noise.

Quantity

Name	RS-D300	RS-D350
Feed width	310mm	360mm
The maximum die cutting area	300mm*250mm	350mm*300mm
The maximum operating speed	18000pcs/h	18000pcs/h
Stroke of die seat	26mm	26mm
Stroke regulation quantity	30mm	30mm
Pulling material precision	±0.03mm	±0.03mm
Integration seeking precision	±0.05mm	±0.05mm
Closing height of hardware die	75mm-95mm(Adjustable）	75mm-95mm(Adjustable）
Dimensions of lower template	350mm270mm40mm	400mm320mm40mm
Dimensions of upper template	350mm270mm29mm	400mm320mm29mm
Lubrication mode	Automatic circulation and oil supply	Automatic circulation and oil supply
Applicable knife die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die
Pressure regulation mode	Auto pressure regulation	Auto pressure regulation
Total power	5.6kw	5.6kw
Outline dimensions	2280mm1300mm1950mm	2300mm1350mm1950mm
Net weight of machine	1600kg	1900kg

Name	RS-G350	RS-G450
Feed width	360mm	460mm
The maximum die cutting area	350mm*300mm	450mm*390mm
The maximum operating speed	18000pcs/h	12000pcs/h
Stroke of die seat	26mm	26mm
Stroke regulation quantity	30mm	30mm
Pulling material precision	±0.03mm	±0.03mm
Integration seeking precision	±0.05mm	±0.05mm
Closing height of hardware die	75mm-95mm(Adjustable）	84mm-104mm(Adjustable）
Dimensions of lower template	400mm320mm40mm	480mm410mm40mm
Dimensions of upper template	400mm320mm29mm	480mm410mm38mm
Lubrication mode	Automatic circulation and oil supply	Automatic circulation and oil supply
Applicable knife die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die
Pressure regulation mode	Auto pressure regulation	Auto pressure regulation
Total power	6.5kw	9.6kw
Outline dimensions	1600mm1350mm1350mm	1750mm1600mm1350mm
Net weight of machine	1800kg	2000kg
