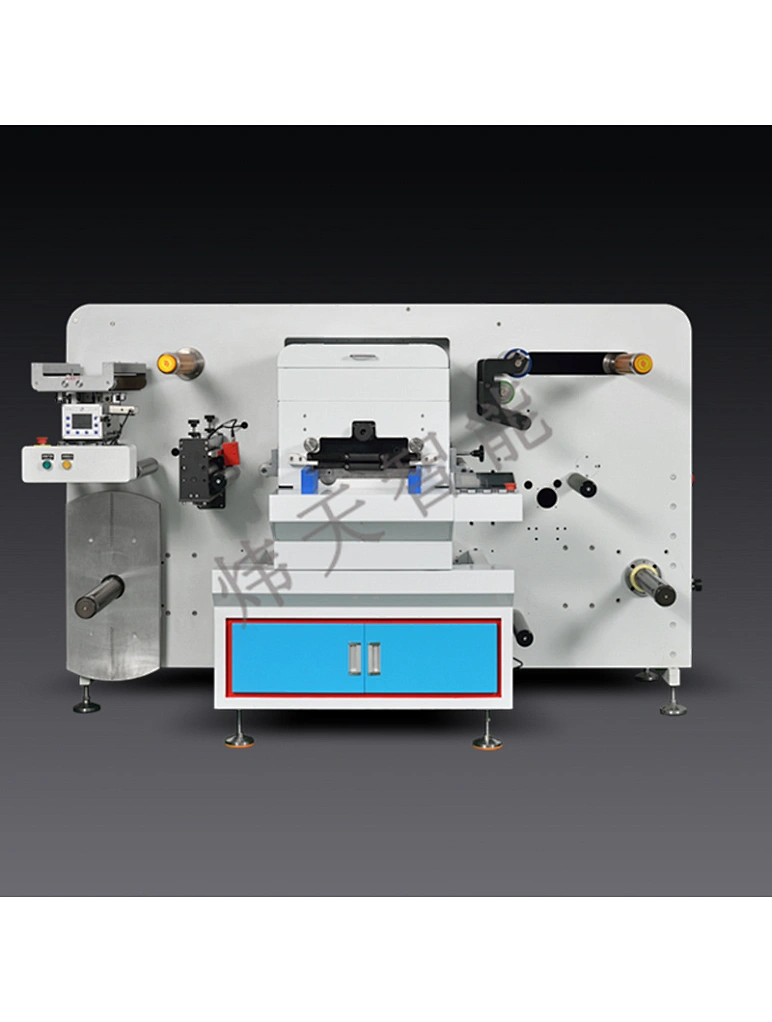

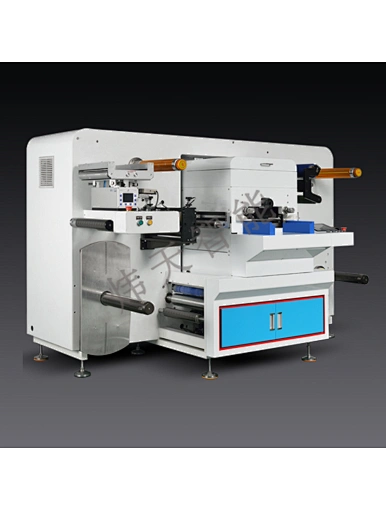

High speed intermittent flat-bed die cutting system
High speed intermittent flat-bed die cutting system
RD-330F
1. Modular design

2. High speed and low noise

3.Working pressure stability

4. Latest design, durable and reliable

5. Can update to double station die cutting

6. Optional conveyor sheeting
Quantity


Names

Unit

RD-330F

Max. Roll Width

mm

350

Max. Paper Width

mm

330

Max. Unwind Diameter

mm

800

Max. Rewind Diameter

mm

600

Max die-cutting Speed

m/min

0-120(500pcs/min)

Die-cutting Accuracy

 mm

±0.15

Total power

Kw

16

Dimension

 mm

2350*1300*1500mm

Dimension

Kg

2300
