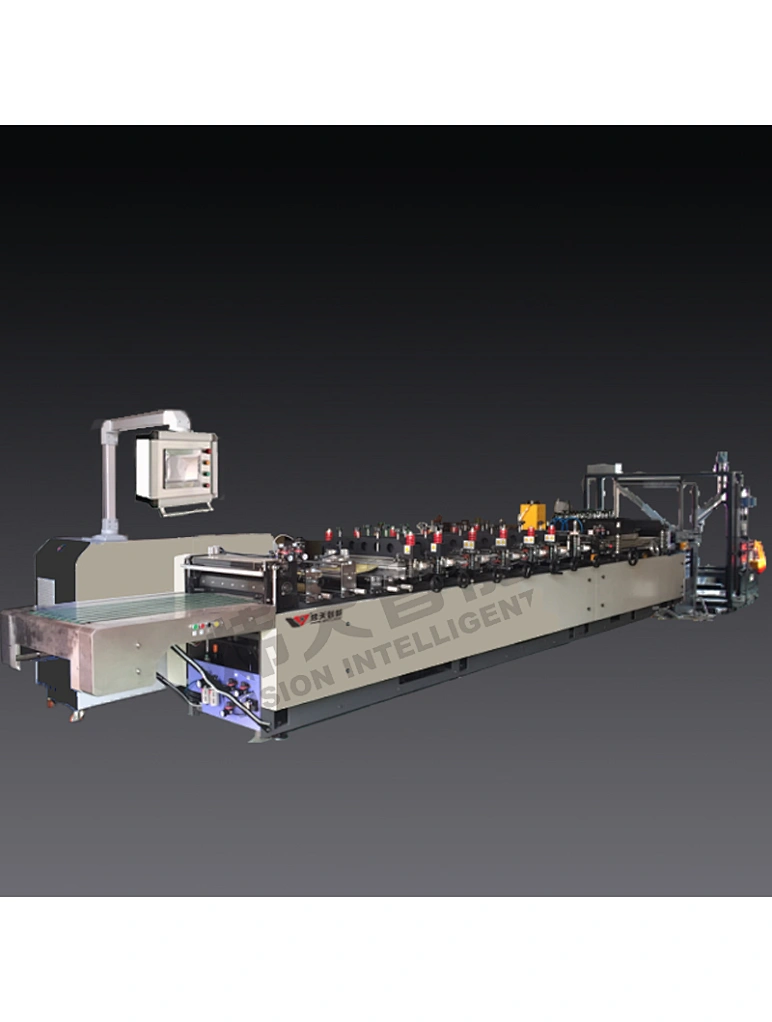

High-speed laminated film three-side sealing bag making machine

High-speed laminated film three-side sealing bag making machine
High-speed laminated film three-side sealing bag making machine
RBM600
1.The machine is equipped with Siemens PLC, controlled by Velenton human-machine interface, and driven by servo motor

2. The bag making speed is 30-300 knives per minute (It can be customized according to customer needs)

3. Heavy pressure type, full pressure

4. The machine body adopts a frame structure, which is firm and not deformed, with low noise and stable operation.

5. High precision setting, the tolerance is less than 0.5mm

6. Constant tension control, precise sleeve, multiple alarm and protection functions
Quantity
NO.

Name

RBM600

1

Equipment name

RBM600 bag making machine

2

Type

Three Side Seal Bag

3

Material types

BOPP, CPP, PET, nylon, multi-layer extrusion film, aluminum foil, paper-plastic, PE, PP and other laminated films

4

Maximum size of material

 Ф800*1250mm (diameter*width)

5

Unwinding mode

Single unwinding 1250mm

6

Feed width

 Maximum 600mm

7

Bag making speed

 30-300 knives/minute

8

Position accuracy

 Less than or equal to 0.5mm

9

Temperature range

0~399℃

10

Motor

 Servo Motor

11

Traction motor

 2 sets servo motor for traction

12

Horizontal ironing device

2 sets of punching frames + 1 set of water cooling + 3 sets of hot ironing, 640mm long

13

Longitudinal ironing device

 4 groups of water cooling + 4 groups of hot ironing

840mm long

14

Power supply

380V 50HZ three-phase four-wire

15

Air source

0.6mpa

16

Total power

About 40KW

17

Weight

 About 5.5 tons

18

Machine size

About 10.0m*1.8m*1.9m
