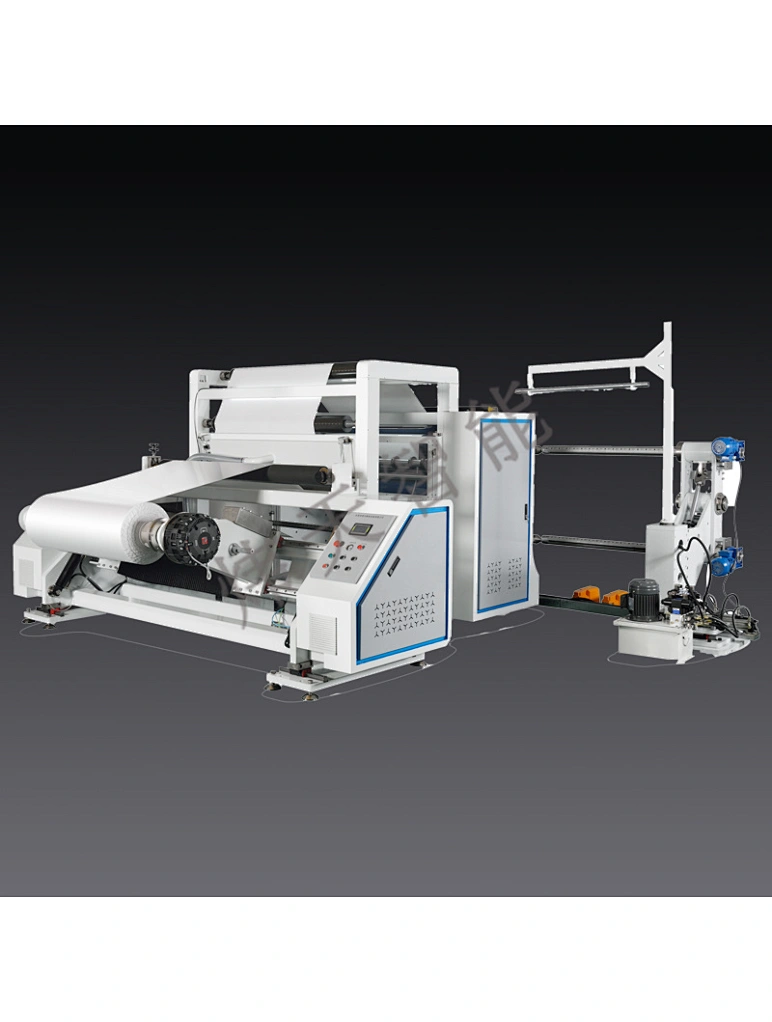

High speed slitting machine
CLSP-A
Siemens PLC and HMI, with meter-counting automatic shutdown, automatic detection of remaining amount, automatic speed regulation. Working parameters can be set and operating status displayed on the screen.
The main machine and rewinder adopts Chinese good brand independent servo motor and PLC for follow-up control, with the pre-tension system, high speed and stable tension.
Rewinder: 3" ball-type friction air shaft, and automatic unload rack is optional, saves time and labour.
Unwinder: integrated 3"/6" universal shaftless loading and unloading, automatic hydraulic lifting, saves time and labour.
Equipped with a negative pressure paper connect unit, saving time for material change.
EPC web-guide device.
Pneumatic execution and locking.
Nip roller adopts large-diameter double-roller paper path.
Low-voltage electrical appliances and pneumatic components are Chinese good brand or imported.
Adopting the upper and lower shear knife slitting, and razor knife optional.
The main machine and rewinder adopts Chinese good brand independent servo motor and PLC for follow-up control, with the pre-tension system, high speed and stable tension.
Rewinder: 3" ball-type friction air shaft, and automatic unload rack is optional, saves time and labour.
Unwinder: integrated 3"/6" universal shaftless loading and unloading, automatic hydraulic lifting, saves time and labour.
Equipped with a negative pressure paper connect unit, saving time for material change.
EPC web-guide device.
Pneumatic execution and locking.
Nip roller adopts large-diameter double-roller paper path.
Low-voltage electrical appliances and pneumatic components are Chinese good brand or imported.
Adopting the upper and lower shear knife slitting, and razor knife optional.
Quantity

Application range: Different kinds of self-adhesive labels, kraft paper, release paper,PET films, release films, copper foil etc.
name | CLSP-A1300 | CLSP-A1700 |
Max. Unwind Width | 1300mm | 1700mm |
Max. Unwind Diameter | ∮1300mm | ∮1300mm |
Max. Rewind Diameter | ∮650mm | ∮650mm |
Slitting Width | 30 mm - 1300 mm | 30 mm - 1600 mm |
Max. Slitting Speed | 300m/min | 300m/min |
Inner paper core size | 3 inch | 3 inch |
Slitting accuracy | ±0.15mm | ±0.15mm |
Rating Voltage | 380V | 380V |
Total power | 24KW | 28KW |
Machine Size | L4600mm8*W2900mm*H2000mm | L4600mmW*3200mm*H2000mm |
Machine Weight | 5800KGkg | 6200KG |
