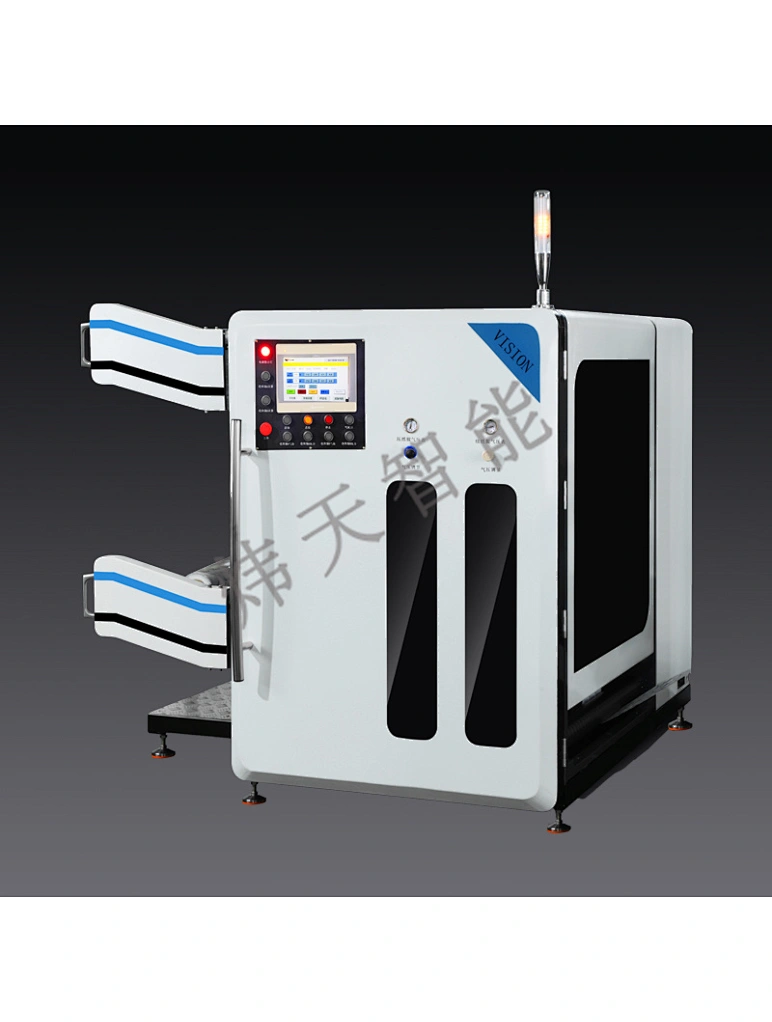

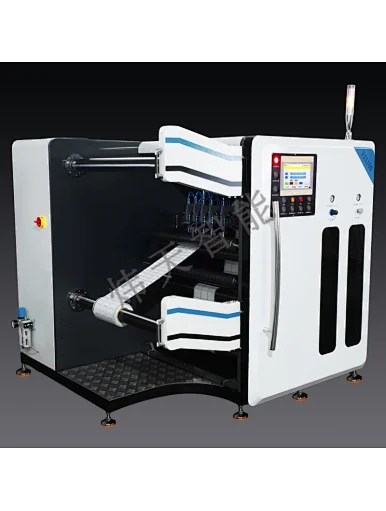

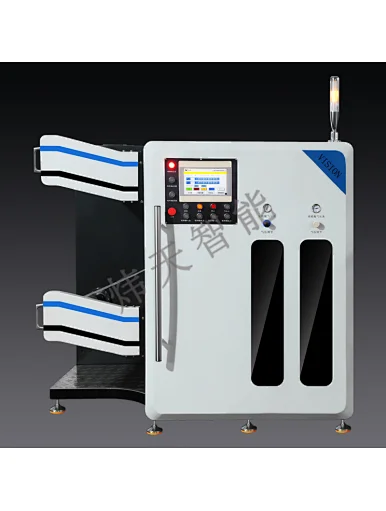

Inline slitting machine

slitting machine
Inline slitting machine
SLM-K
1. The rewinding tension is controlled by an independent motor and PLC, and the whole machine tension is controlled by servo motor.

2. The web-guide system adopts ARISE deviation correction for edge control.

3. Large diameter steel roller traction, equipped with pneumatic control nip roller.

4. Low-voltage electrical appliances and pneumatic components: domestic famous and imported ones.

5. Equipped with fully automatic pneumatic shear knife slitting, convenient and powerful.
Quantity


NO.

name

 HP-25K

1

Web width

780mm

2

Rewind diameter

 800mm

3

Slitting web width

 30mm-780mm

4

Slitting speed

30m-100m/min

5

Diameter of paper core

 3inch

6

Slitting accuracy

±0.15mm

7

Voltage

380V

8

Total power

8KW

9

Machine size

L1700mm* W1700mm* H1750mm

10

Machine weight

1500KG
