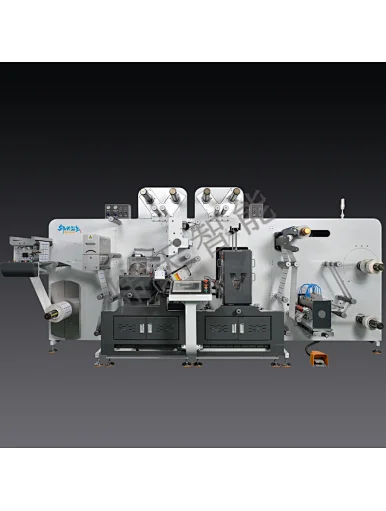

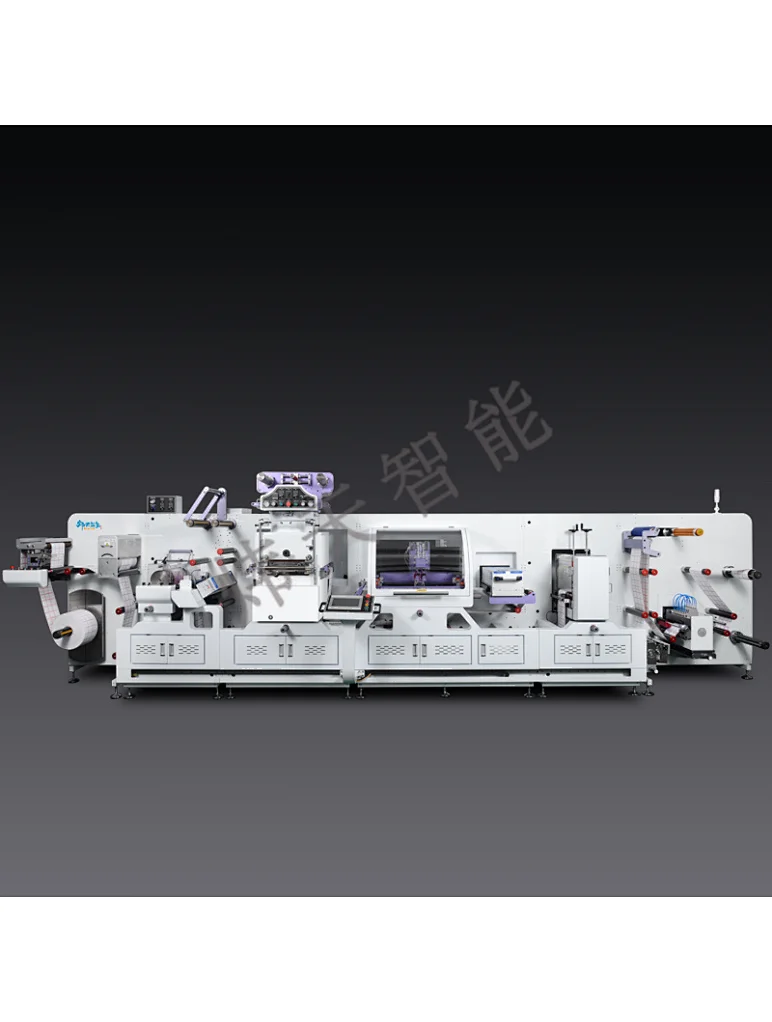

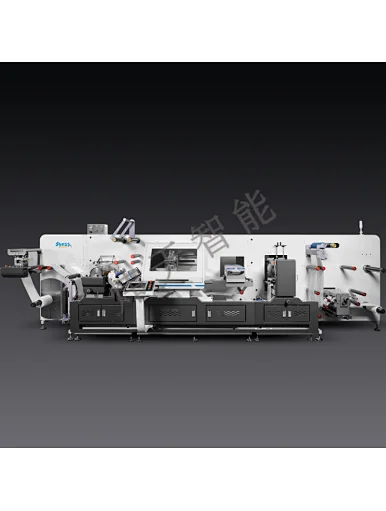

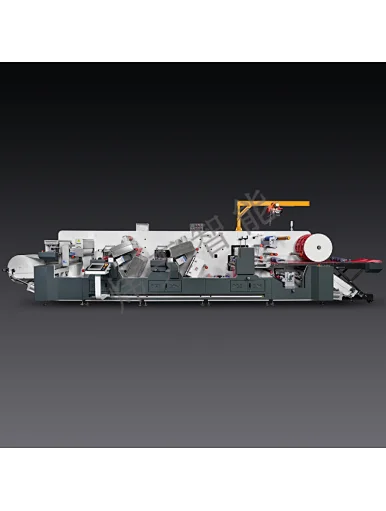

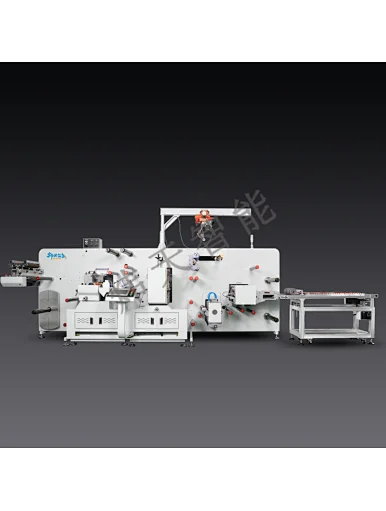

Integrated multi-functional digital finishing system
MDF
1
1.Modular design
2.Full Servo Control on whole machine

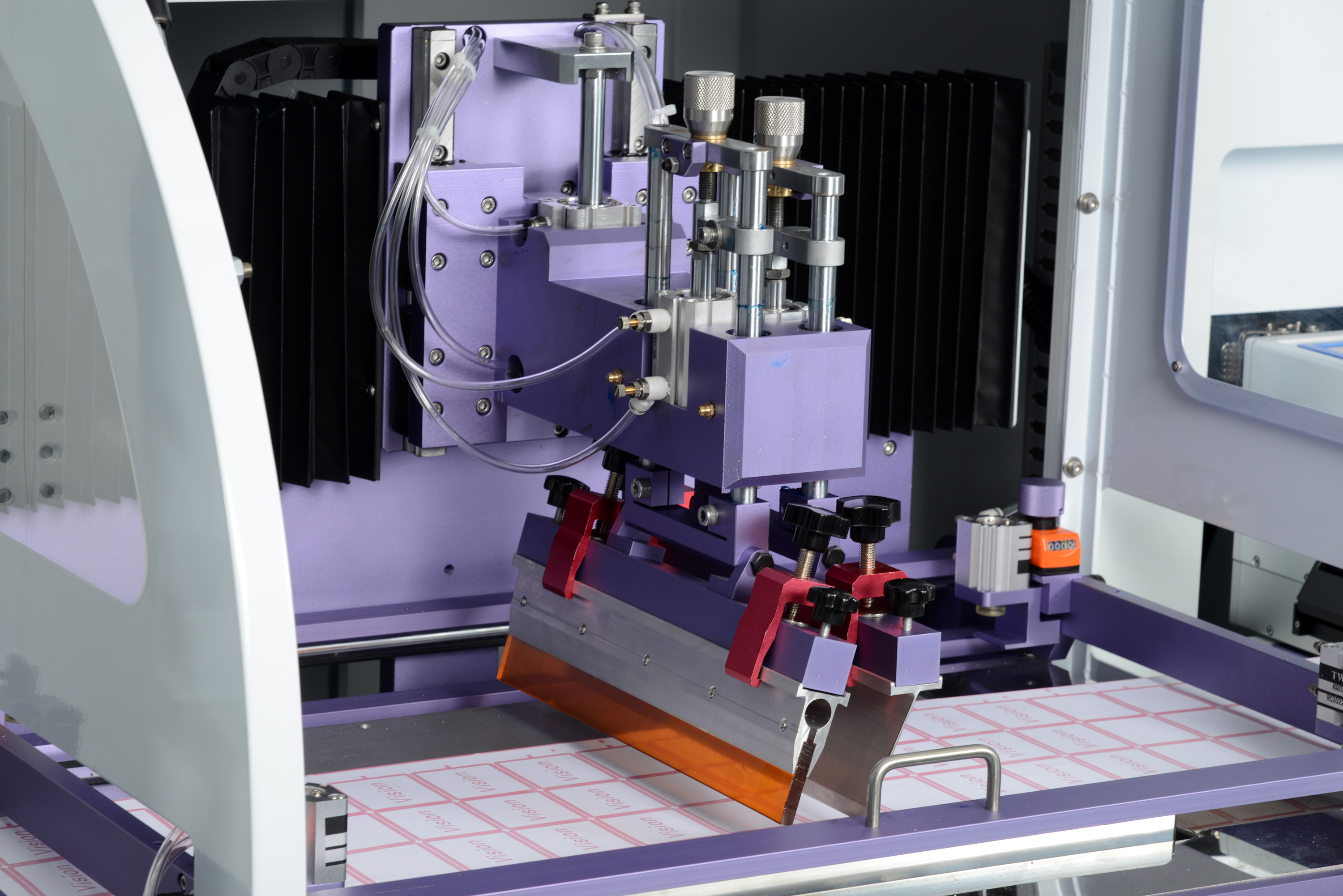

3.Intermittent screen printing unit

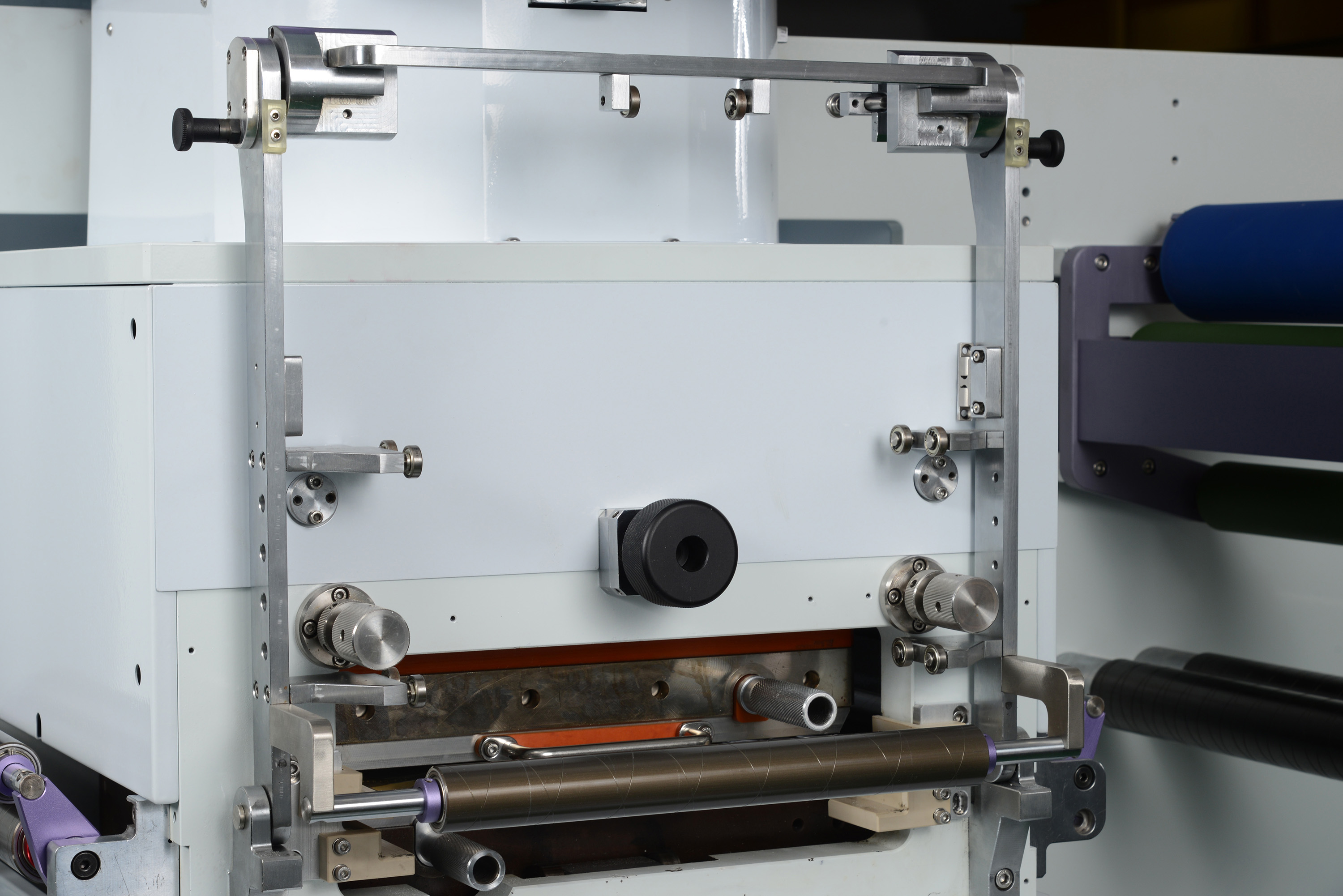

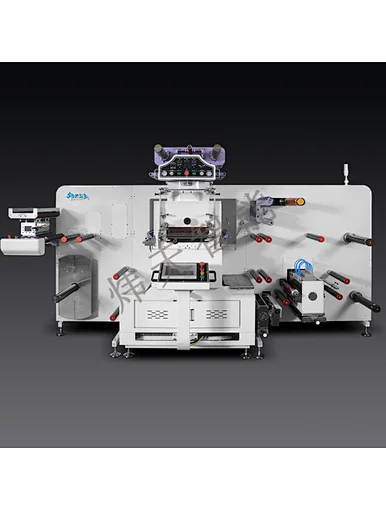

4.Intermittent flat hot stamping ,embossing unit, the Hot stamping head can be rotated 90 degree
5.Optional: Hologram function
6. Flat-bed screen printing unit functions: flexo printing, cold stamping, varnishing and laminationPositioning lamination is optional

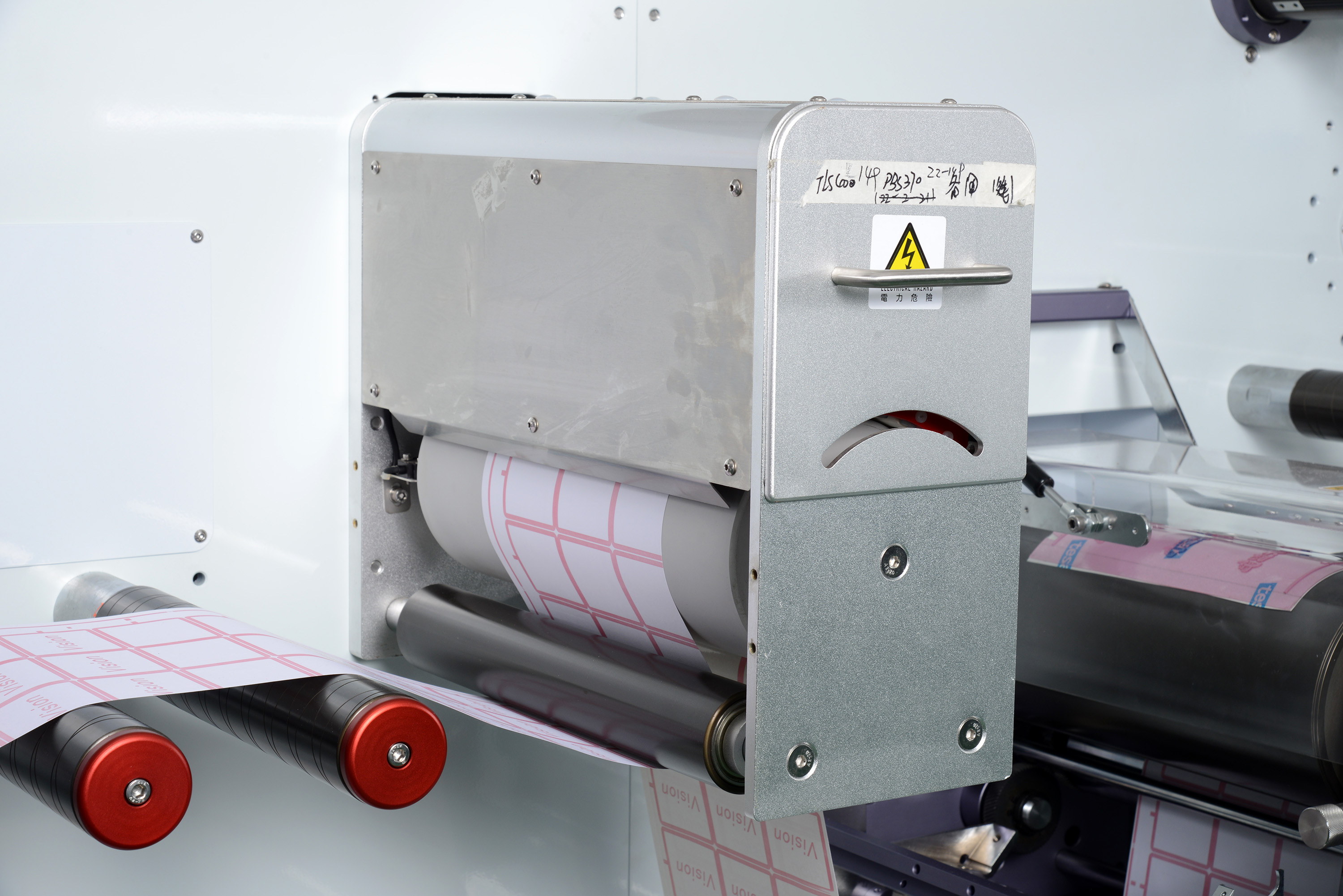

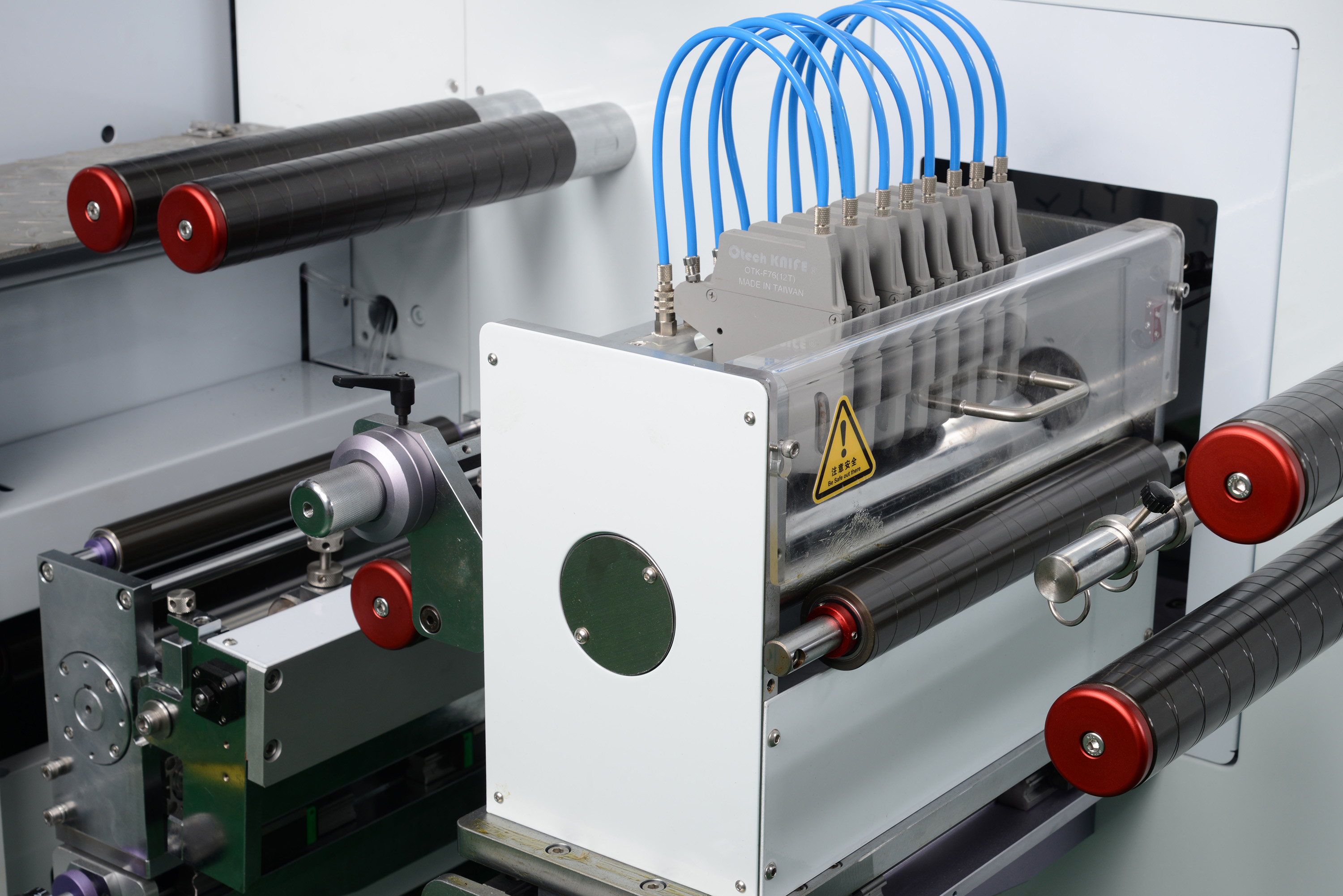

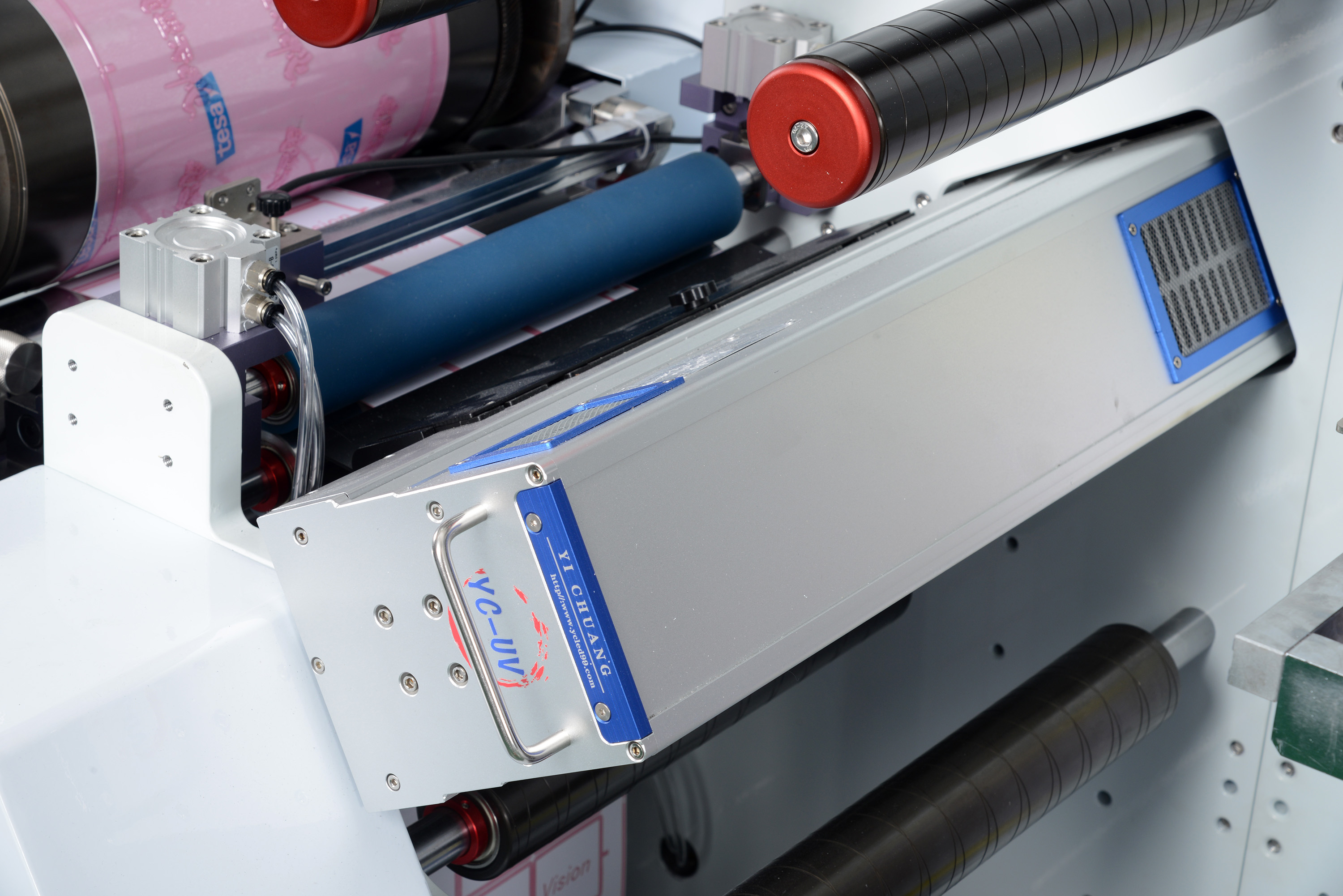

7.FUV or LED-UV Drying system optional: UV or LED-UV

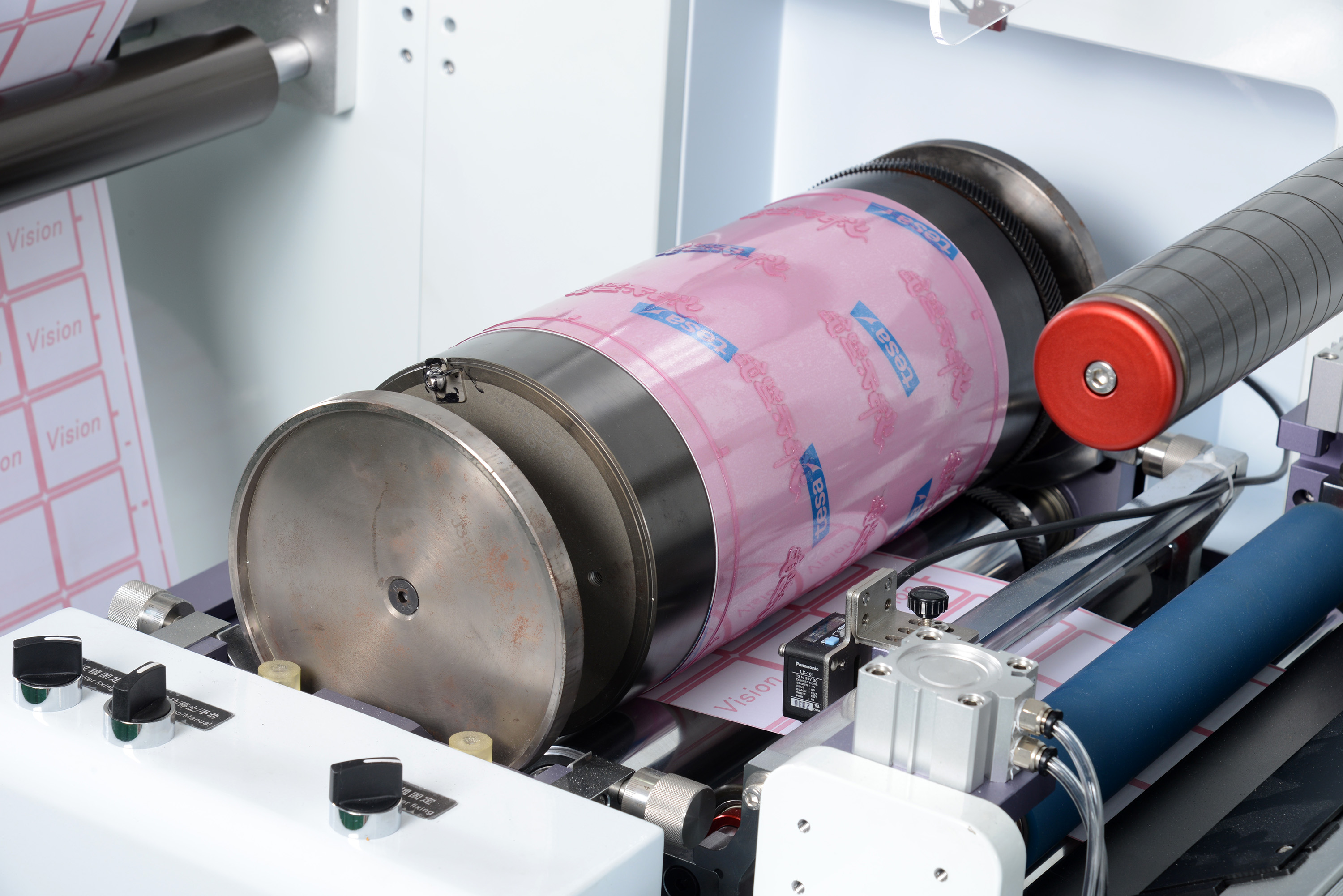

8.Semi-rotary flexo unit can switch between full-rotary and semi-rotary

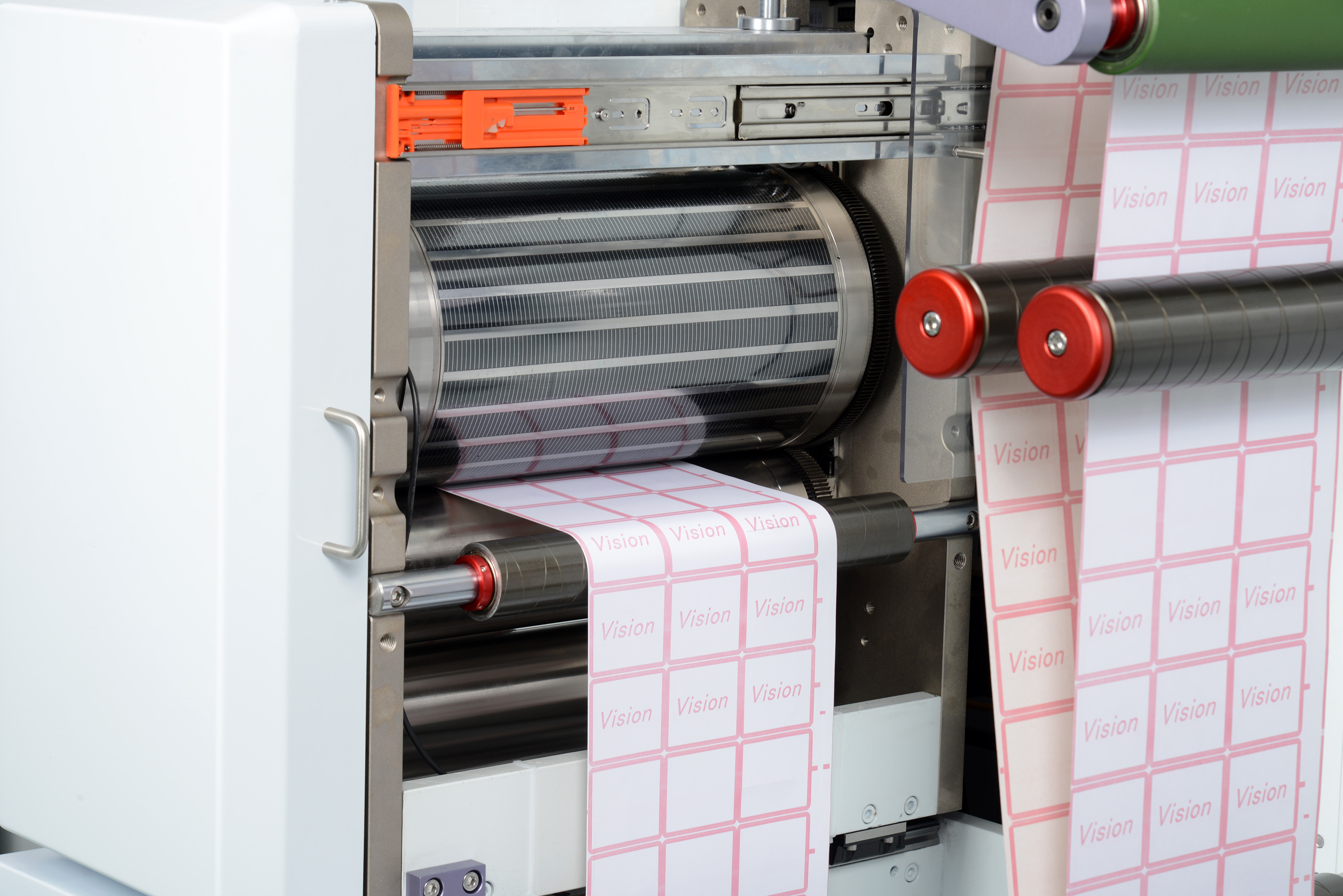

9.The Semi-rotary die-cutting unit can switch between full-rotary and semi-rotary, Optional: Gap master

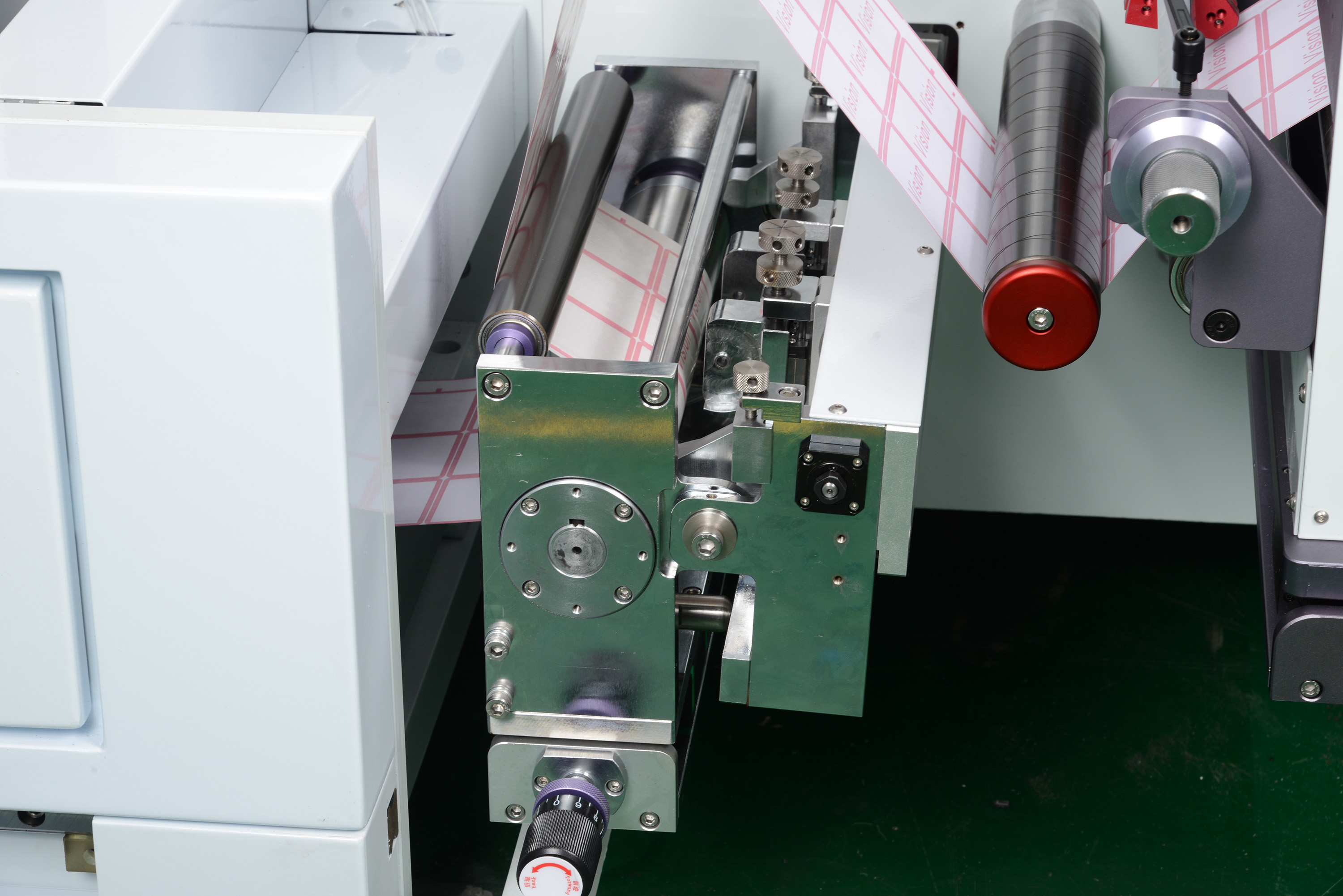

10.Standard: Shear/Razor knife Optional: Crush knife, Optional: Auto slitting, automatic back cutting are optional
11.Dual servo rewind shafts
12.Online monitoring and self-diagnosis function
13.Optional single scale collection
14.Optional corona and dust removal device
15.Optional IML function
2.Full Servo Control on whole machine
3.Intermittent screen printing unit
4.Intermittent flat hot stamping ,embossing unit, the Hot stamping head can be rotated 90 degree
5.Optional: Hologram function
6. Flat-bed screen printing unit functions: flexo printing, cold stamping, varnishing and laminationPositioning lamination is optional
7.FUV or LED-UV Drying system optional: UV or LED-UV
8.Semi-rotary flexo unit can switch between full-rotary and semi-rotary
9.The Semi-rotary die-cutting unit can switch between full-rotary and semi-rotary, Optional: Gap master
10.Standard: Shear/Razor knife Optional: Crush knife, Optional: Auto slitting, automatic back cutting are optional
11.Dual servo rewind shafts
12.Online monitoring and self-diagnosis function
13.Optional single scale collection
14.Optional corona and dust removal device
15.Optional IML function
Quantity

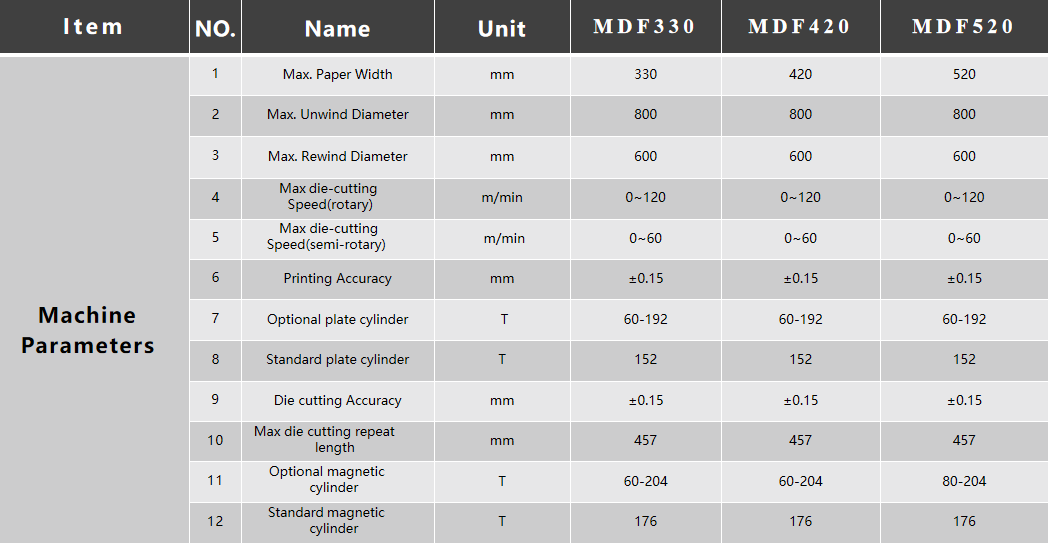

Name | Unit | MDF330 | MDF370 | MDF420 | MDF520 |
Max. Roll Width | mm | 350 | 400 | 440 | 540 |
Max. Paper Width | mm | 330 | 370 | 420 | 520 |
Max. Unwind Diameter | mm | 800 | 800 | 800 | 800 |
Max. Rewind Diameter | mm | 600 | 600 | 600 | 600 |
Max die-cutting Speed(rotary) | m/min | 0~120 | 0~120 | 0~120 | 0~120 |
Max die-cutting Speed(semi-rotary) | m/min | 0~60 | 0~60 | 0~60 | 0~60 |
Printing Accuracy | mm | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
Optional plate cylinder | T | 60-192 | 60-192 | 60-192 | 60-192 |
Standard plate cylinder | T | 152 | 152 | 152 | 152 |
Die cutting Accuracy | mm | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
Max die cutting repeat length | mm | 457 | 457 | 457 | 457 |
Optional magnetic cylinder | T | 60-204 | 60-204 | 60-204 | 80-204 |
Standard magnetic cylinder | T | 176 | 176 | 176 | 176 |

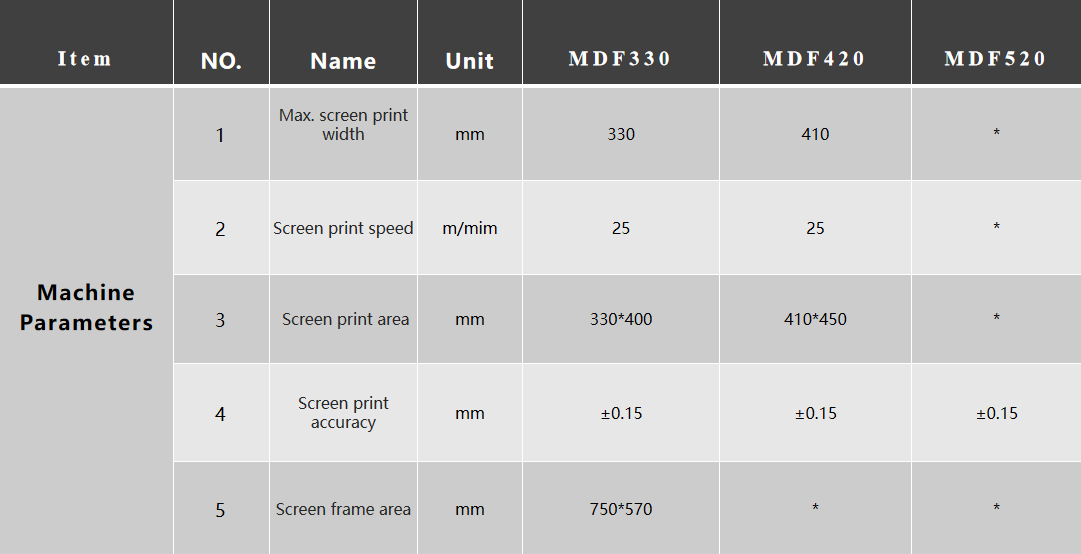

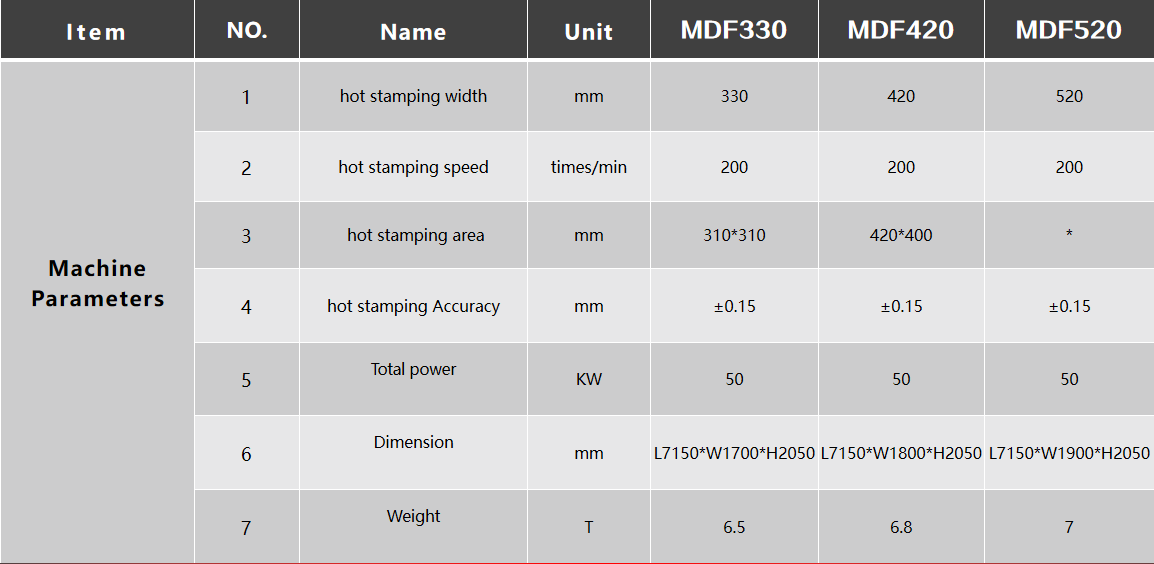

Name | Unit | MDF330 | MDF370 | MDF420 | MDF520 |
Maximum printing width | mm | 330 | 370 | 410 | 520 |
Printing speed | m/mm | 25 | 25 | 25 | 25 |
Printing area | mm | 330*400 | 370*400 | 410*450 | 520*400 |
Printing Accuracy | mm | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
Screen frame area | mm | 750*570 | 750*610 | 750*660 | 750*760 |
Name | Unit | MDF330 | MDF370 | MDF420 | MDF520 |
hot stamping width | mm | 330 | 370 | 420 | 520 |
hot stamping speed | cut/mim | 200 | 200 | 200 | 200 |
hot stamping area | mm | 310*310 | 370*370 | 410*410 | 520*520 |
hot stamping Accuracy | mm | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
