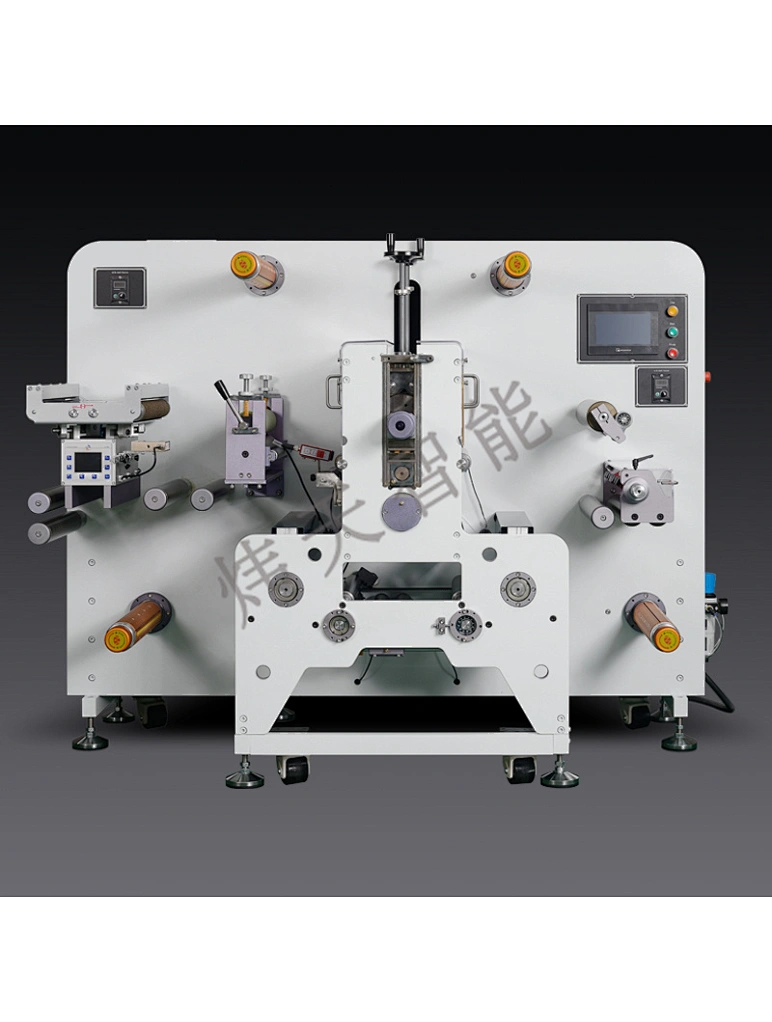

Mini Rotary die cutting machine
Mini Rotary die cutting machine
RD-330RM
1. Exchangable between full rotary and semi rotary

2. Meter/Count function

3. Small footprint, movable with wheels.

4. Remote function

5. Optional IML function

6. Optional conveyor
Quantity



Name

Unit

RD-330RM

Max. Roll Width

mm

350

Max. Paper Width

mm

330

Max. Unwind Diameter

mm

450

Max. Rewind Diameter

mm

450

Max die-cutting Speed

m/min

Full rotary100m/min Semi rotary50m/min

Die-cutting Accuracy

mm

±0.15

Total power

Kw

10

Dimension

mm

1800×900×1420

Weight

Kg

1000
