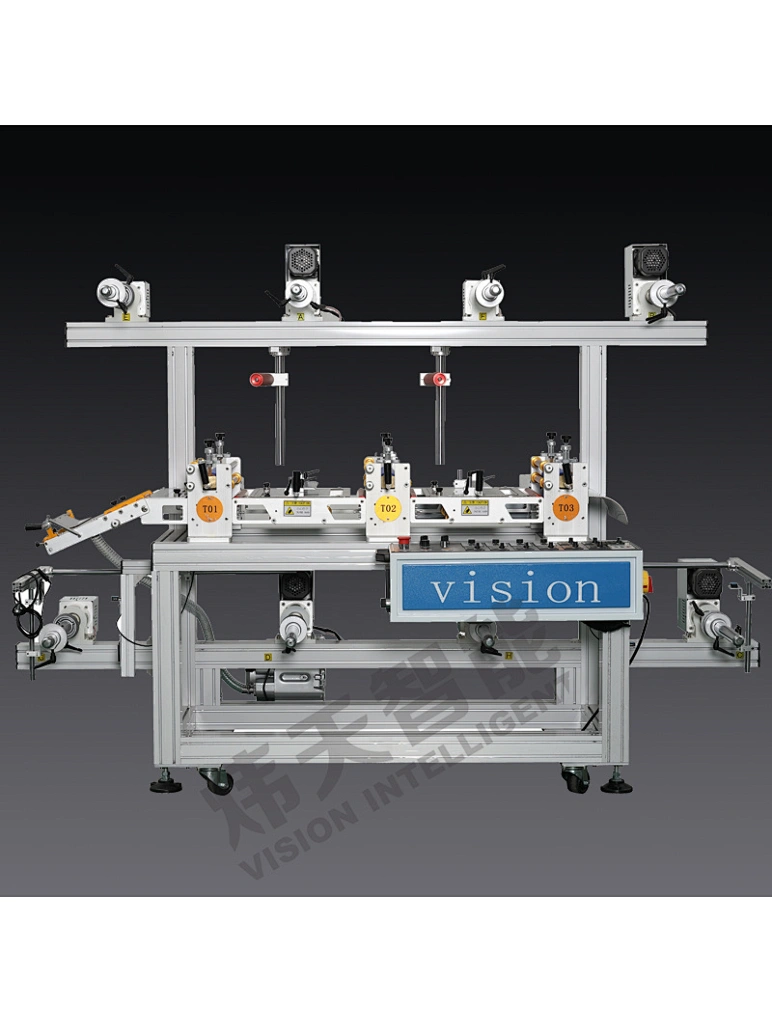

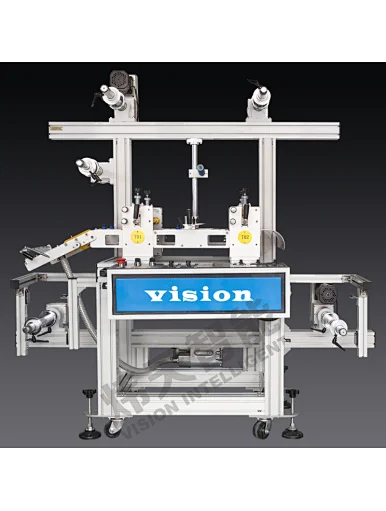

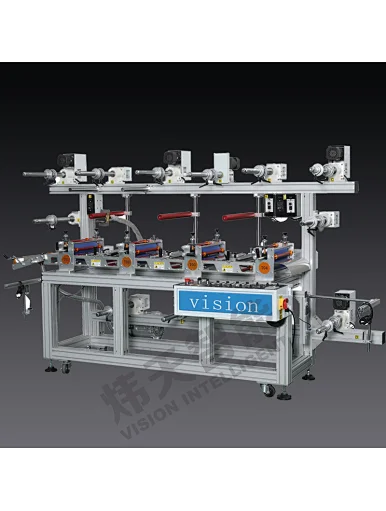

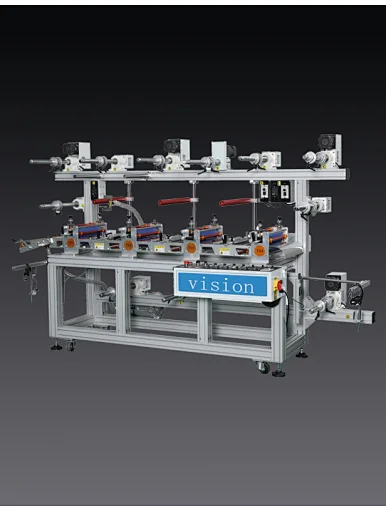

Multifunctional matching machine

Multifunctional matching machine
RSH-L
1. This machine is especially used for siphac gluing waste discharging of multi stripe and multi-layer tape, thin film and release paper, etc.

2. Siphac gluing positioning precision is ±0.1mm. It has strong functions and high operating efficiency.

3. It has flexible machine configuration and adds adjustment and speed regulation functions at any time so as to meet processing demand to the greatest extent.

4. Various parts can realize independent adjustment, speed regulation and tension regulation, etc for convenient control operation.

Feeding device:

1. Positioning materials provide for tension and guarantee straight and linear materials.

2. It can facilitate coiling and uncoiling. Receiving and emptying axles in twoends can rotate and load materials.

Composite roll:

Many groups of composite rolls can be used for composition and waste discharging of
multi-stripe and multi-layer materials. Composition roll pressure can adjust conveniently.
Gap of upper and lower rolls can adjust. Axial movement of composite positioning ring
can be realized easily by end surface and tuning bolt.

Waste discharger:

Waste discharging knife on waste discharging platform can combine with many groups
of waste discharging over-rolls and gains flexible and strong functions.
It can adjust conveniently and realize automatic waste discharging of most of products
basically

Operation panel:

Centralized control of electric apparatus can adjust conveniently with strong functions
and random manual/automatic conversion.
Quantity

name

RSH350-2T

RSH350-3T

RSH350-4T

The maximum feed width

370mm

370mm

470mm

The maximum gluing width

350mm

350mm

450mm

The maximum operating speed

0-30m/min

0-30m/min

0-30m/min

Control mode

Magnetic powder control tensionr

Magnetic powder control tensionr

Magnetic powder control tensionr

Combined machine mode

Opo-electric

Opo-electric

Opo-electric

Positioning precision

±0.1mm

±0.1mm

±0.1mm

The maximum coiling diameter

500mm

500mm

500mm

Material receiving axle

2set

4set

5set

Uncoiling axle

3set

4set

5set

Outline dimensions

1900mm*1200mm*1700mm

2450mm*1200mm*1700mm

3000mm*1200mm*1700mm

Net weight of machine

300kg

400kg

480kg

Total power

1.13kw

1.41kw

1.55kw

Power

Single-phase220V

Single-phase220V

Single-phase220V

PU/silicone roll

70-75degrees

70-75degrees

70-75degrees



name

RSH450-2T

RSH450-3T

RSH450-4T

The maximum feed width

470mm

470mm

470mm

The maximum gluing width

450mm

450mm

450mm

The maximum operating speed

0-30m/min

0-30m/min

0-30m/min

Control mode

Magnetic powder control tensionr

Magnetic powder control tensionr

Magnetic powder control tensionr

Combined machine mode

Opo-electric

Opo-electric

Opo-electric

Positioning precision

±0.1mm

±0.1mm

±0.1mm

The maximum coiling diameter

500mm

500mm

500mm

Material receiving axle

2set

4set

5set

Uncoiling axle

3set

4set

5set

Outline dimensions

1900mm*1300mm*1700mm

2450mm*1300mm*1700mm

3000mm*1300mm*1700mm

Net weight of machine

300kg

400kg

480kg

Total power

1.13kw

1.41kw

1.55kw

Power

Single-phase220V

Single-phase220V

Single-phase220V

PU/silicone roll

70-75degrees

70-75degrees

70-75degrees
