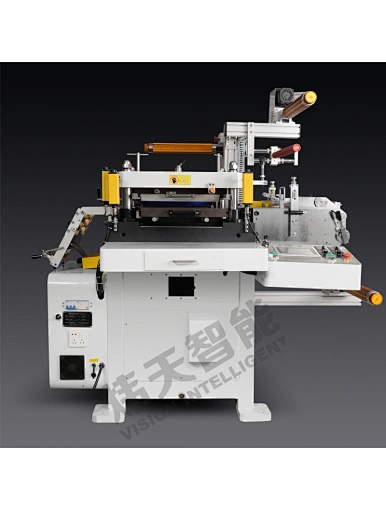

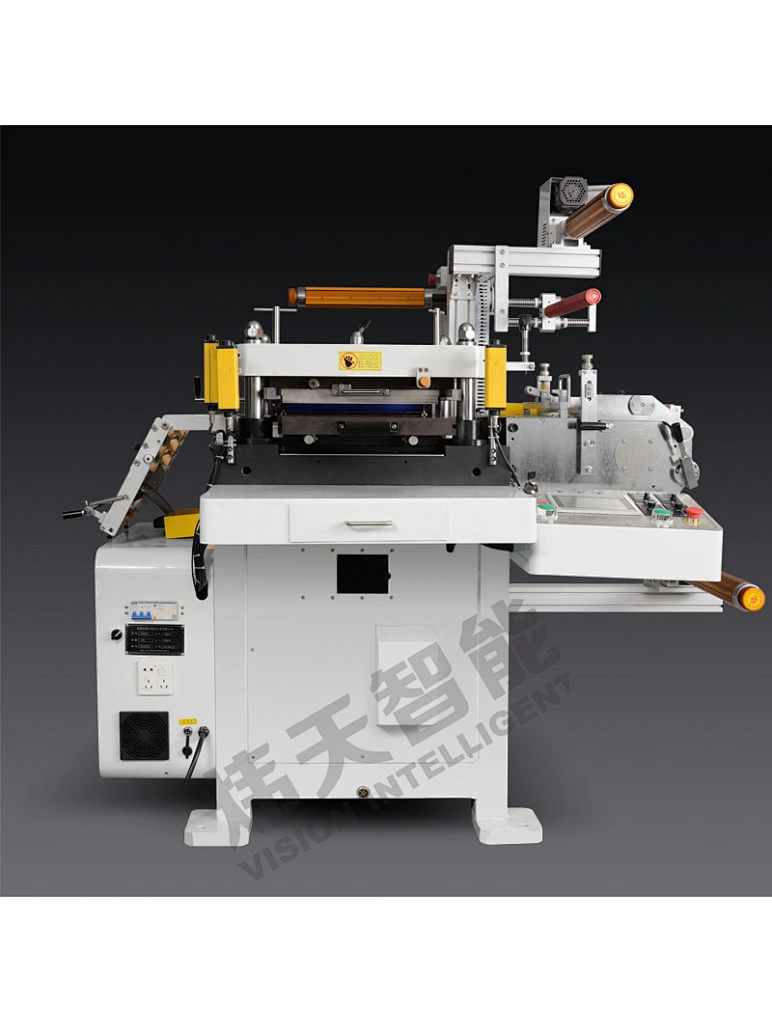

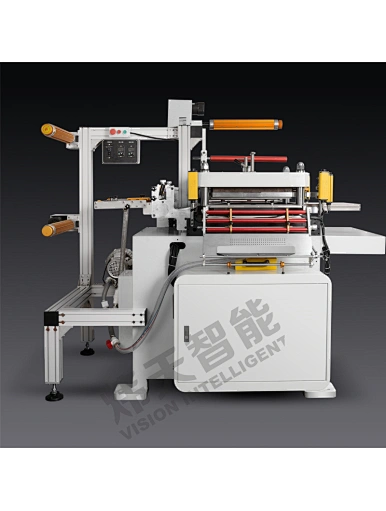

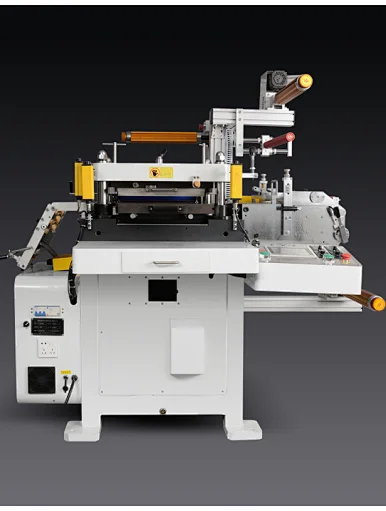

Post-modular asynchronization high speed die-cutting machine
RS-Z
1.With Post-modular asynchronization function, which can realize traced asynchrony and positioning asynchrony.
2.Double servo drive, low noise, stable pressure, accurate pulling material.
3.Die-cutting host, laminating machine, slicer, can achieve automatic connection.
4.Adopting electronically controlled pressure regulation and automatic lubrication system.
5.QDC dies can be installed
6.Stroke adjustment, one key switch, four kinds of die height selection.
2.Double servo drive, low noise, stable pressure, accurate pulling material.
3.Die-cutting host, laminating machine, slicer, can achieve automatic connection.
4.Adopting electronically controlled pressure regulation and automatic lubrication system.
5.QDC dies can be installed
6.Stroke adjustment, one key switch, four kinds of die height selection.
Quantity
Name | RS-Z450 |
Feed width | 460mm |
The maximum die cutting area | 450mm*390mm |
The maximum operating speed | 12000pcs/h |
Stroke of die seat | 26mm |
Stroke regulation quantity | 30mm |
Pulling material precision | ±0.03mm |
Integration seeking precision | ±0.05mm |
Closing height of hardware die | 84mm-104mm(Adjustable） |
Dimensions of lower template | 480mm*410mm*40mm |
Dimensions of upper template | 480mm*410mm*38mm |
Lubrication mode | Automatic circulation and oil supply |
Applicable knife die | Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die |
Pressure regulation mode | Auto pressure regulation |
Total power | 11.7kw |
Outline dimensions | 1961mm*2102mm*1819mm |
Net weight of machine | 2000kg |
