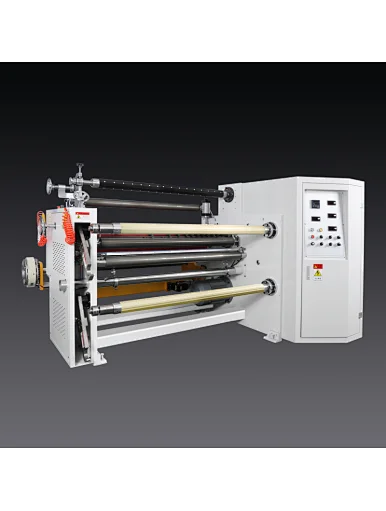

Protective film slitting machine
Protective film slitting machine
CLSF-T1300
1、Strong flexibility: system upgrade, personalized design according to product process;

2、Modular design: easy to install and powerful;

3、Model processing: using high-quality raw materials, long service life, long-term precision and stability;

4、Machining process, according to international process requirements: quenching, tempering, inner and outer circle fine grinding, CNC, gantry turning and milling, are all produced in strict accordance with process requirements from every detail, make sure the accessories precision and long-term performance.
Quantity


Scope of application: PET, OPP, PVC, PC, protective film, release film, synthetic paper and other roll materials.

NO.



name

CLSF-T1300

1

Max web width

1300 mm

2

Unwind diameter

∮800mm   ∮3"air shaft

3

Rewind diameter

∮450mm    ∮3"air shaft

4

Slitting width

30 mm - 1300 mm

5

Slitting accuracy

±0.15mm

6

Max laminating web width

1250mm

7

Max laminating unwind diameter

400mm

8

Mechanical speed

130m/min(depends on materials)

9

Machine total power

8KW

10

Working voltage

three-phase four-wire system  AC380V

11

Machine weight

2100KG

Machine size

L2200 mm* W2300mm* H1300mm
