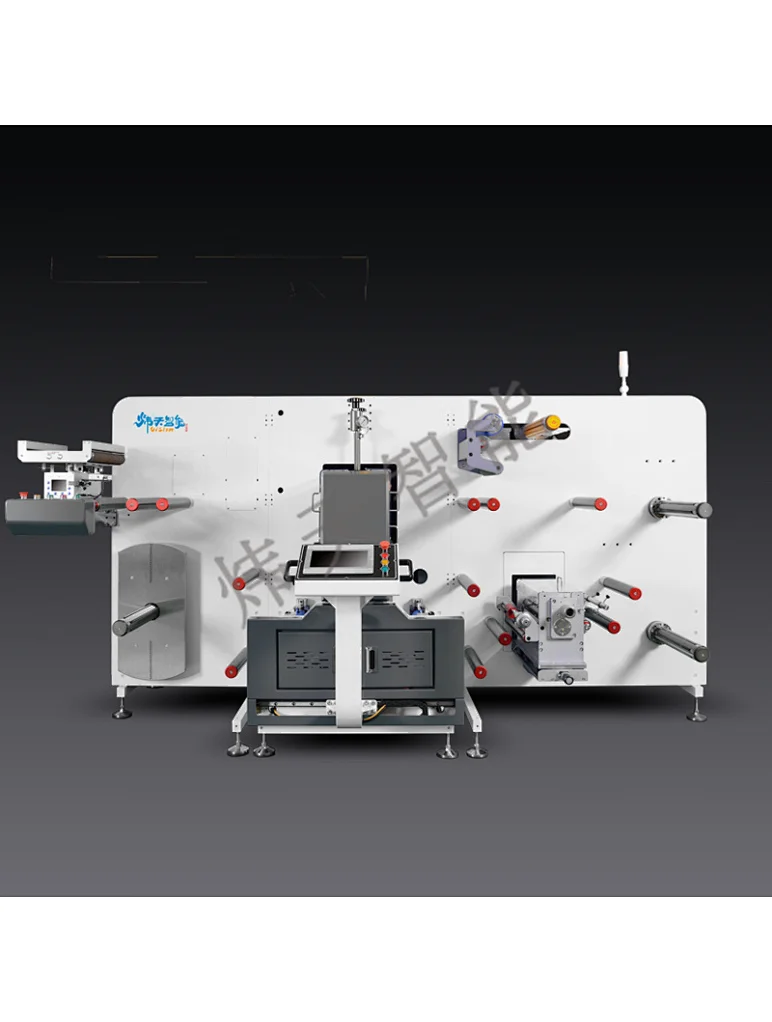

RD-330/370R
Semi-rotary die cutting machine
1.All servo motor control

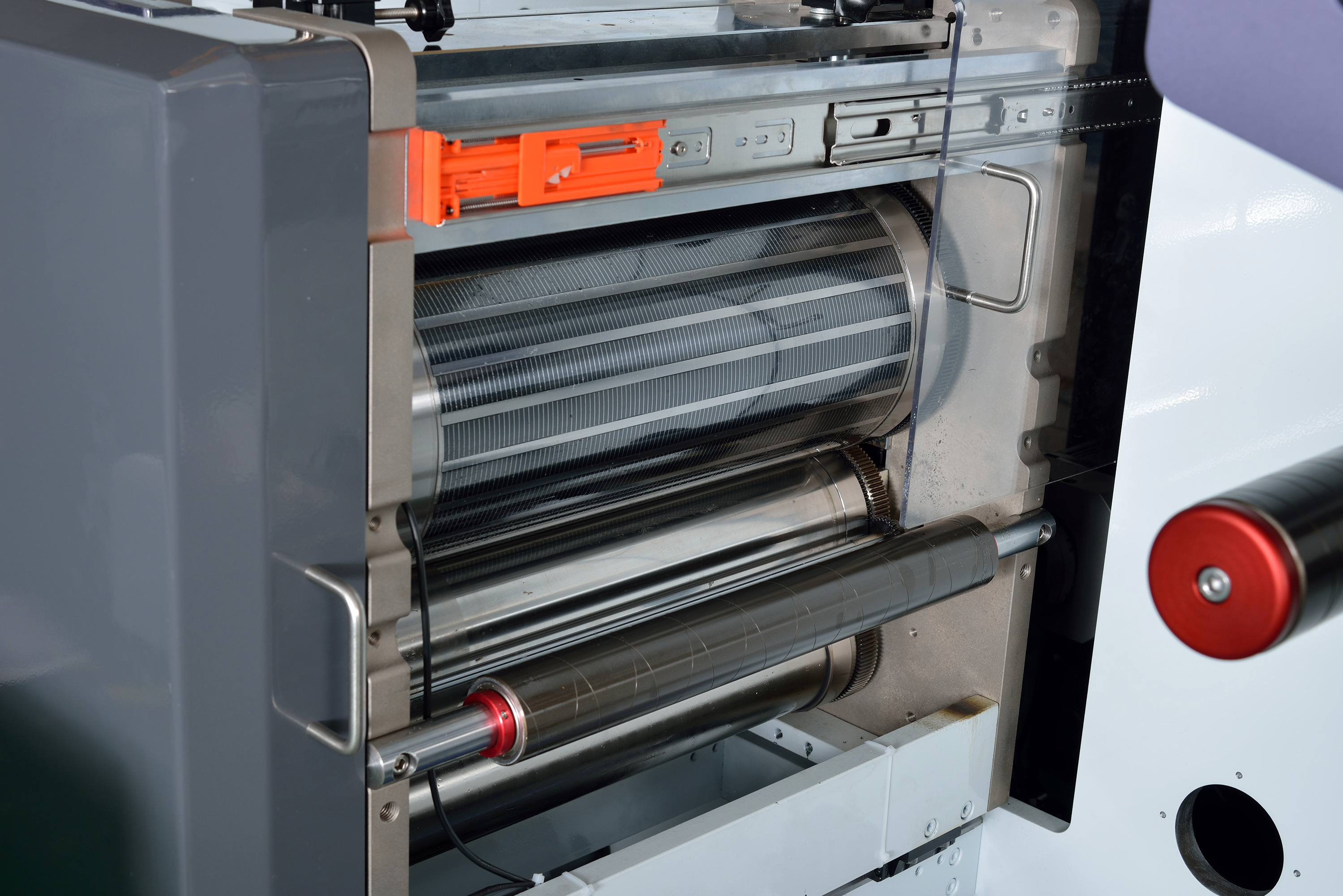

2.Die cutting unit can be exchanged between full rotary and semi rotary

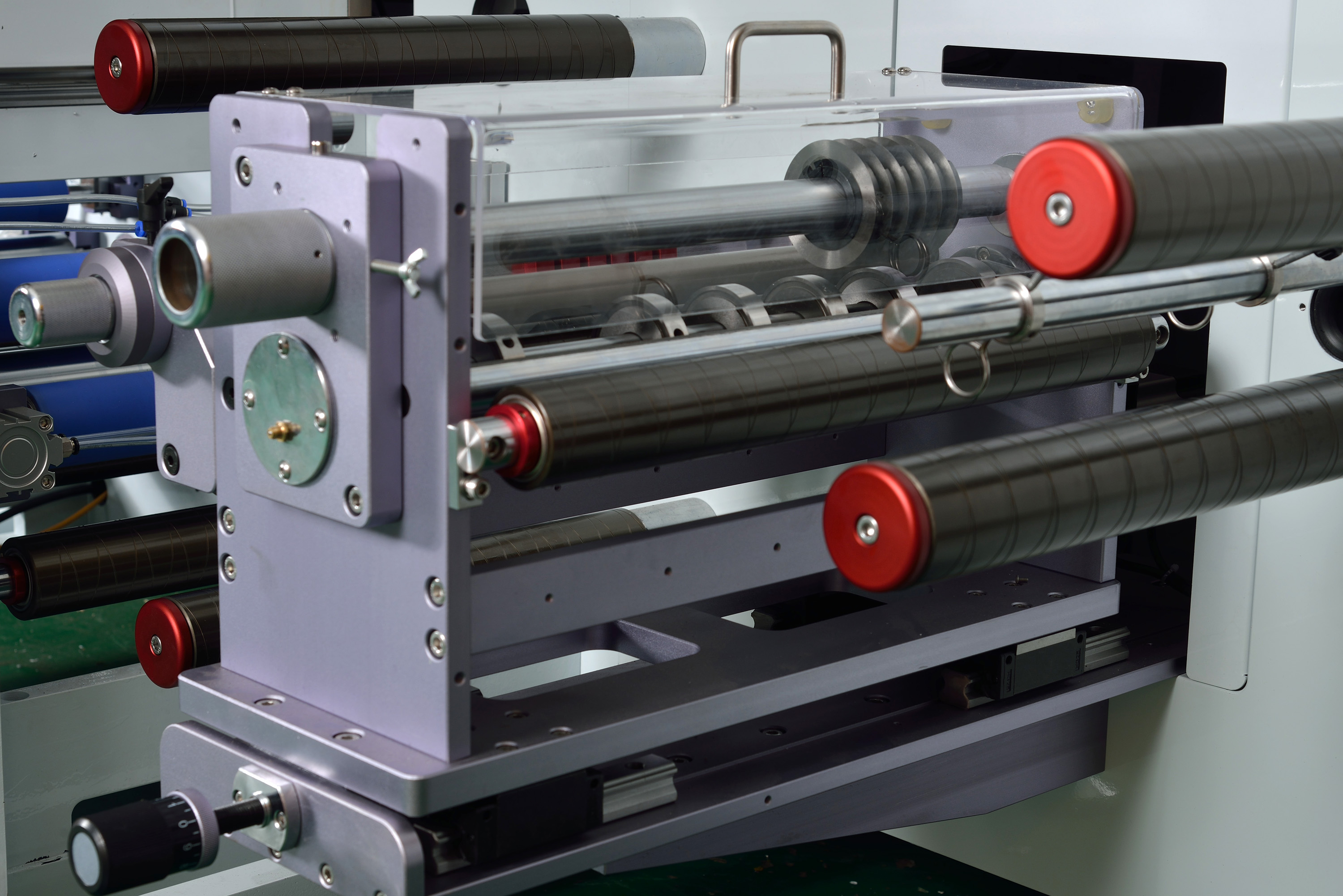

3.Servo motor for rewind, can be both forward and reverse rewinding.

4.Snow ball matrix rewind.

5.Optional on IML function, gap master, automatic slitting, IML, sheeting, dual rewinds...etc.

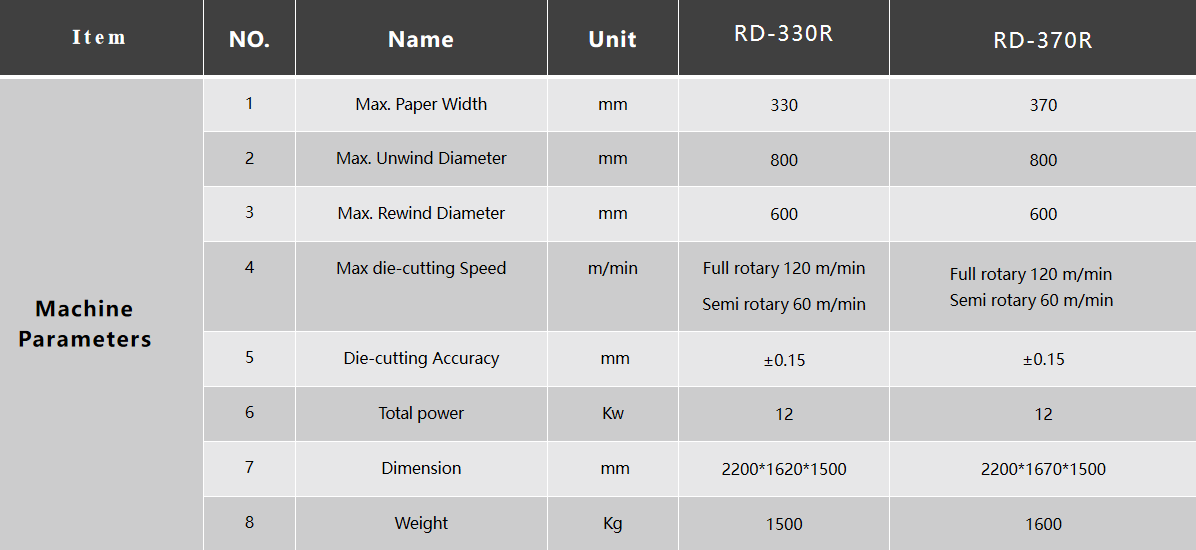

Quantity



Name

Unit

RD-330RRD-370R

Max. Roll Width

mm

340380

Max. Paper Width

mm

330370

Max. Unwind Diameter

mm

800800

Max. Rewind Diameter

mm

600600

Max die-cutting Speed

m/min

Full rotary 120m/min

Semi rotary 60m/min
Full rotary 120m/min

Semi rotary 60m/min

Die-cutting Accuracy

mm

±0.15±0.15

Total power

Kw

1212

Dimension

mm

2200*1620*15002200*1670*1500

Weight

Kg

15001600
