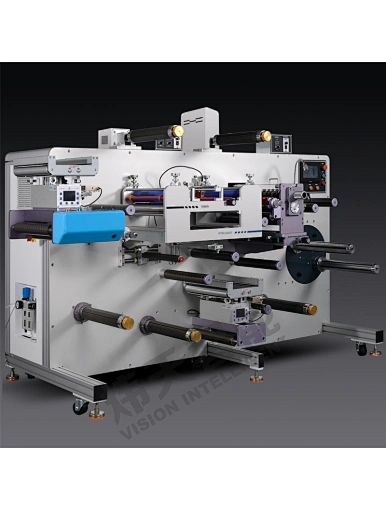

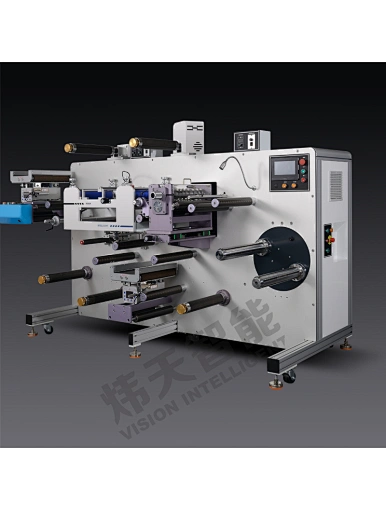

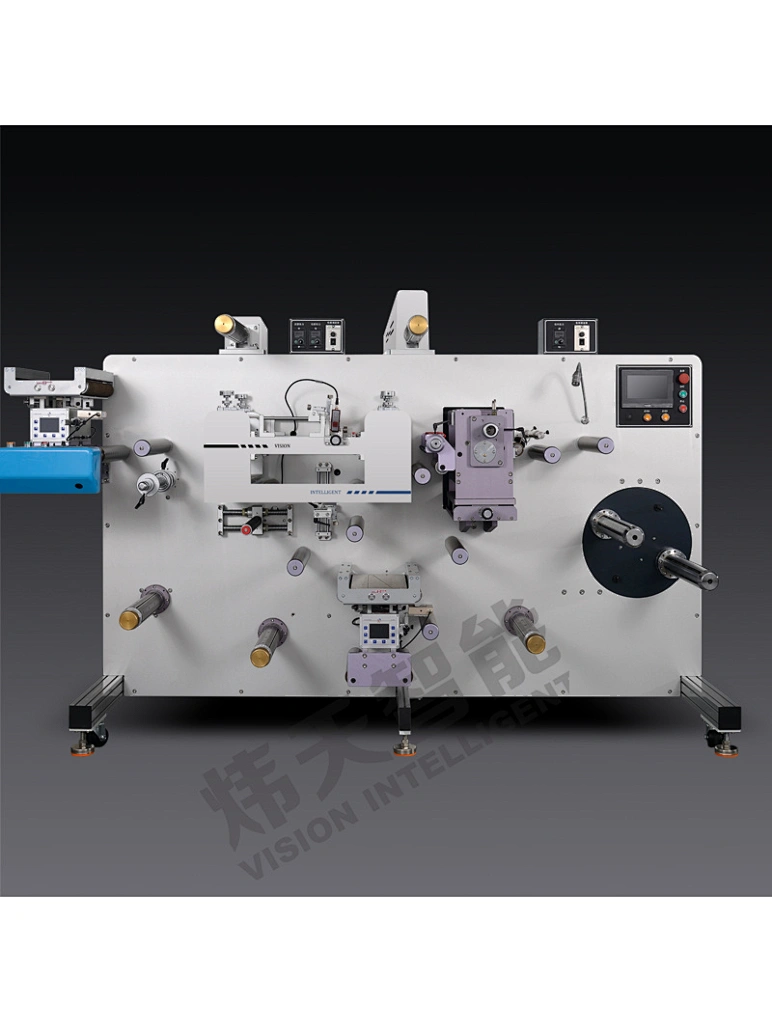

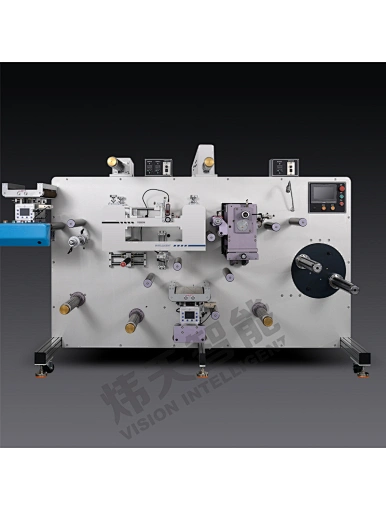

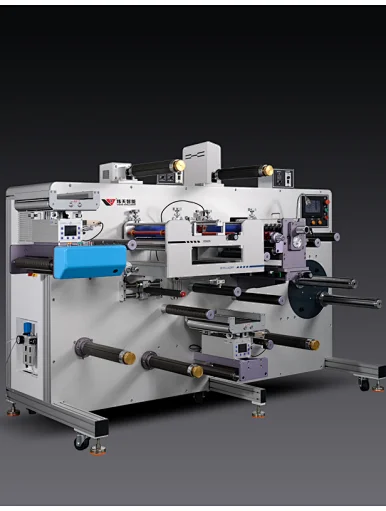

Reel-to-Reel Laminating Machine

Reel-to-Reel Laminating Machine
RSH-R
1. Suitable for high-precision lamination of various materials requiring synchronous transfer and asynchronous transfer, intelligent, convenient and efficient.

2. The equipment is fully functional and compatible with multiple types of material lamination.

3. Each part can be independently controlled, stable and accurate. Easy to operate
Quantity






name

RSR-350


RSR-450

Max web width

350mm

450mm

Sync laminate speed

35m/min

35m/min

Asynch laminate speed

15m/min

15m/min

Positioning accuracy

±0.05mm

±0.05mm

Maxi rewind diameter

600mm

600mm

Revinding servo

1set

1set

Unwinding Servo

1set

1set

Machine size( length*width* height)

2350mm×1220mm×1440mm

2350mm×1220mm×1440mm

Machine net weight

400KG

400KG

Total power

8.5kw

8.5kw

Power

220V

220V

PU/silicone roll

70-75degrees

70-75degrees
