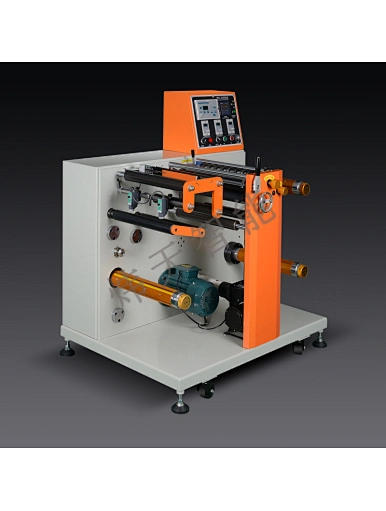

slitting machine
SLM-N
1. High slitting speed, accurate and efficient
2. Controlling the tension of unwinding and rewinding material with magnetic powder

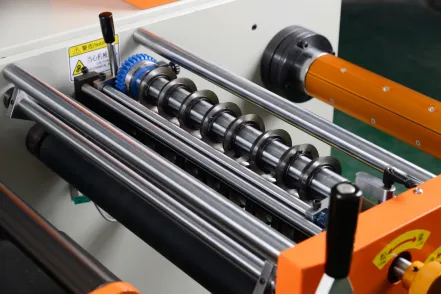

3. The main part of the machine adopts shear knife design imported from Japan. Import bearing, hard bearing steel shaft， ensures the slitting accuracy more effectively
4. With automatic meter counting, sheeting counting, length setting and automatic stop.
5. The whole machine has the advantages of compact structure, convenient and easy operation.。
2. Controlling the tension of unwinding and rewinding material with magnetic powder
3. The main part of the machine adopts shear knife design imported from Japan. Import bearing, hard bearing steel shaft， ensures the slitting accuracy more effectively
4. With automatic meter counting, sheeting counting, length setting and automatic stop.
5. The whole machine has the advantages of compact structure, convenient and easy operation.。
Quantity
Scope of application: suitable for narrow slitting of roll material and post-press label slitting
| NO. | Name | SLM-N350 |
| 1 | Web with | 350 mm |
| 2 | Unwind diameter | 500 mm |
| 3 | Rewind diameter | 500 mm |
| 4 | Max. Slitting speed | 120m/min |
| 5 | Unwinding roll diameter | 3" |
| 6 | Rewinding shaft diameter | 3" |
| 7 | Rewinding shaft quantity | 2pieces |
| 8 | Voltage and total power | 220V /2.0KW |
| 9 | Magnetic powder quantity | 3sets |
| 10 | Dimension | 1250 mm *900mm *1430mm |
