slitting rewinding machine
slitting rewinding machine

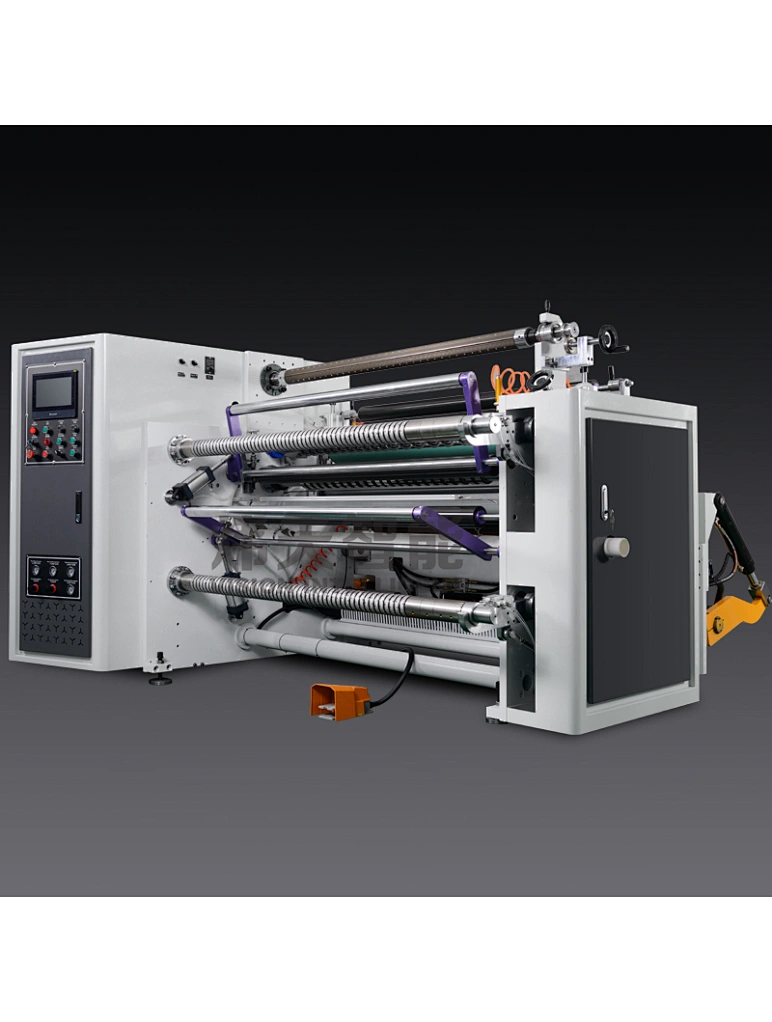

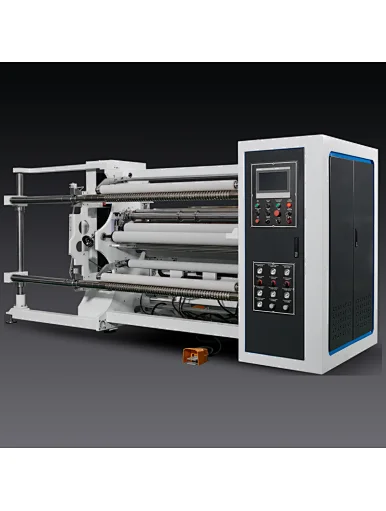

CLSF-D
Siemens PLC HMI with automatic stop of meter counting, automatic detection for the remaining meters, automatic speed regulation for line speed, working parameters and running operation can be set on HMI.

Low voltage electrical appliances and pneumatic components are Chinese good brand and imported.

Chinese good brand for the servo motor driven and PLC with following control system. Pre-tension system, high speed and stable tension

Rewinding unit matches with 3’ Spline type friction shafts, it has option with automatic unloading push-out unit which can safe your time and labour.

Unwinding unit matches with all-in-line 3’ or 6’ shaft-less loading. Automatic hydraulic feeding saves your time and labour.

Negative pressure paper platform saves your time of exchanging materials.

EPC web guide

Execution and locking pneumatically

Dual big diameter nip rollers for paper path.

It’s assembled with the laminating device, which can be widely used in the protective film industry.

Slitting unit matches with up and down shear knives, razor knife is optional.
Quantity




Application range:  PET films, release films, copper foil etc.


name

CLSF-D1300

CLSF-D1700

Max. web width

1300 mm

1700mm

Max. unwind diameter

 ∮1000mm

 ∮1000mm

Max. rewind diameter

∮600mm

∮600mm

Slitting width

30 mm - 1300 mm

30 mm - 1600 mm

Slitting speed

200m/min

200m/min

Paper core

3 inch

3 inch

Slitting precision

±0.15mm

±0.15mm

Voltage

380V

380V

Total power

12KW

14KW

Machine dimension

L2200mm*W2900mm*H1600mm

L2200mm*W3200mm*H1600mm

Gross weight

3200KG

3500KG
