Table-top rewinder

Digital finishing machine

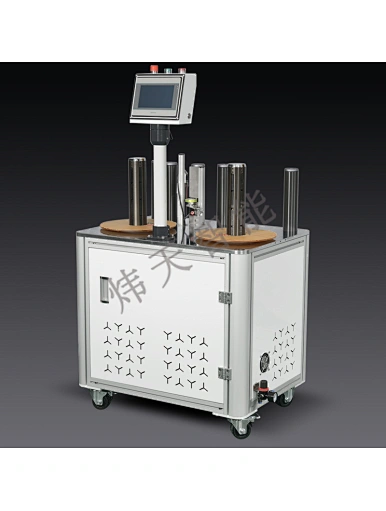

Table-top rewinder
VS-200R
1.100m / min high speed

2. High efficiency label count, metering and missing label inspection

3. Compatible with 1-3 inch air shaft

4. Small footprint, movable whit wheels.
Quantity



Name

Unit

VS-200R

Max. Roll Width

mm

250

Max. Mechanical Speed

m/min

100

Max. Rewind Diameter

mm

300

Unwind servo

set

1

Rewind servo

set

1

Machine size

mm

800*600*1100

Machine size

kg

150

Gross power

 kw

5

power supply

Single phase 220V
