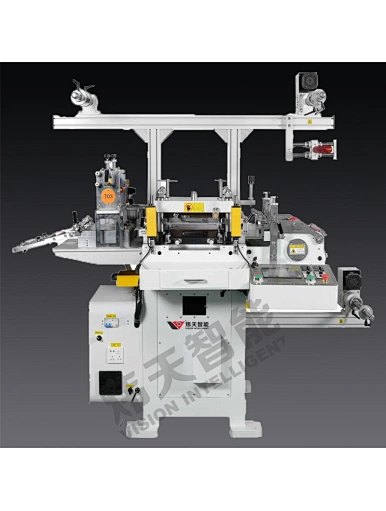

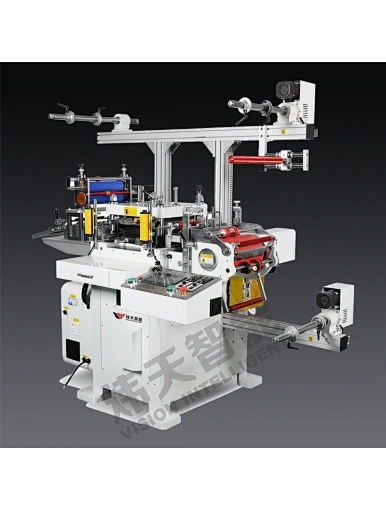

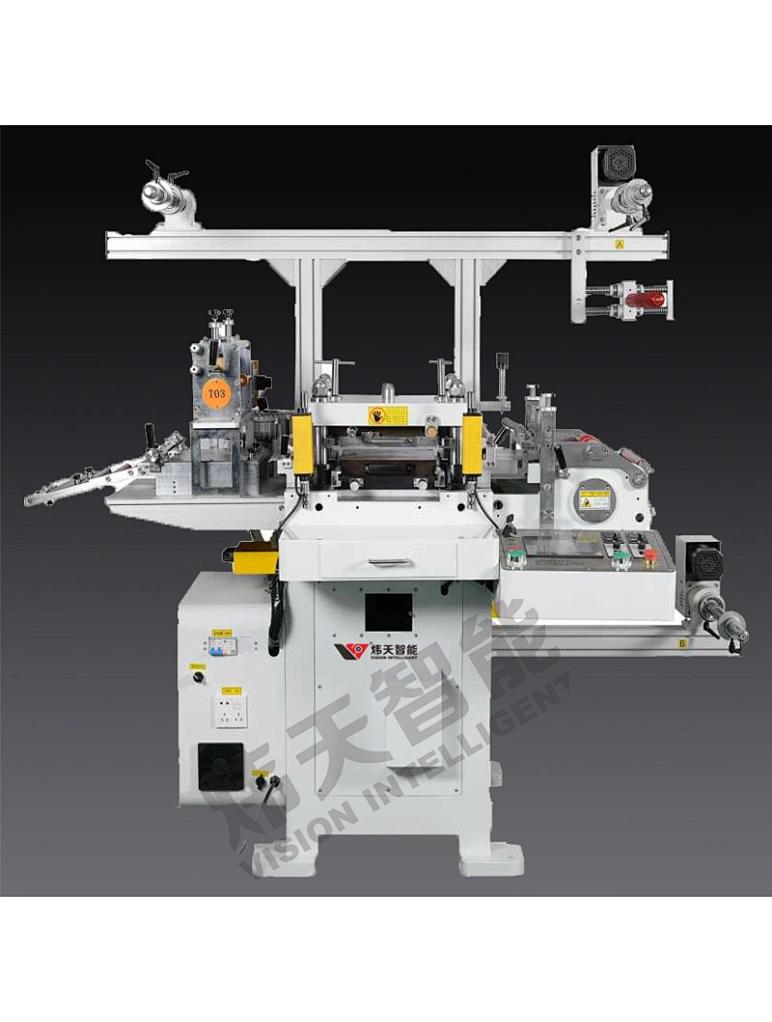

Up asynchronization die cutter
Up asynchronization die cutter
RSS
1. Stable pressure and large punching force.

2. Automatic oil supply system which can reduce machine abrasion.

3. Little coverage and low noise.
Quantity


name

RSS-300

RSS-350

RSS-450

Remark

Feed width

310mm

360mm

460mm

high speed precision
 die cutting

The maximum die cutting area

300mm*250mm

350mm*300mm

450mm*390mm

The maximum operating speed

18000pcs/h

18000pcs/h

12000pcs/h

Stroke of die seat

26mm

26mm

26mm

Stroke regulation quantity

30mm

30mm

30mm

Pulling material precision

±0.03mm

±0.03mm

±0.03mm

Integration seeking precision

75mm-95mm(Adjustable)

75mm-95mm(Adjustable)

84mm-104mm(Adjustable)

Closing height of hardware die

350mm*270mm*39.5mm

400mm*320mm*39.5mm

480mm*410mm*40mm

Dimensions of lower template

350mm*270mm*29mm

400mm*320mm*29mm

480mm*410mm*38mm

Dimensions of upper template

Automatic circulation and oil supply

Automatic circulation and oil supply

Automatic circulation and oil supply

Lubrication mode

Wooden plate die, rubber plate die,
AB die, hardware die, QDC die,
corrosion die,
etching die

Wooden plate die, rubber plate die,
 AB die, hardware die, QDC die,
corrosion die,
etching die

Wooden plate die, rubber plate die,
 AB die, hardware die, QDC die,
corrosion die,
etching die

Applicable knife die

Auto pressure regulation

Auto pressure regulation

Auto pressure regulation



name

RSS-300

RSS-350

RSS-450

Remark

Asynchronous feeding width

310mm

360mm

460mm

RSS  Up asynchronization die

Asynchronous feeding precision

±0.03mm

±0.03mm

±0.03mm

Feeding method

Servo feeding

Servo feeding

Servo feeding

Control mode

Magnetic powder control tension

Magnetic powder control tension

Magnetic powder control tension

Rewinding axis

1set

1set

1set

Unwinding axis

2set

2set

2set

RSS+RSGhigh-speed machine

Total power

6.5kw

7.5kw

9.5kw

Outline dimensions

2400mm*1400mm*1700mm

2450mm*1400mm*1700mm

2550mm*1500mm*1700mm

Net weight of machine

1800kg

1900kg

2100kg
