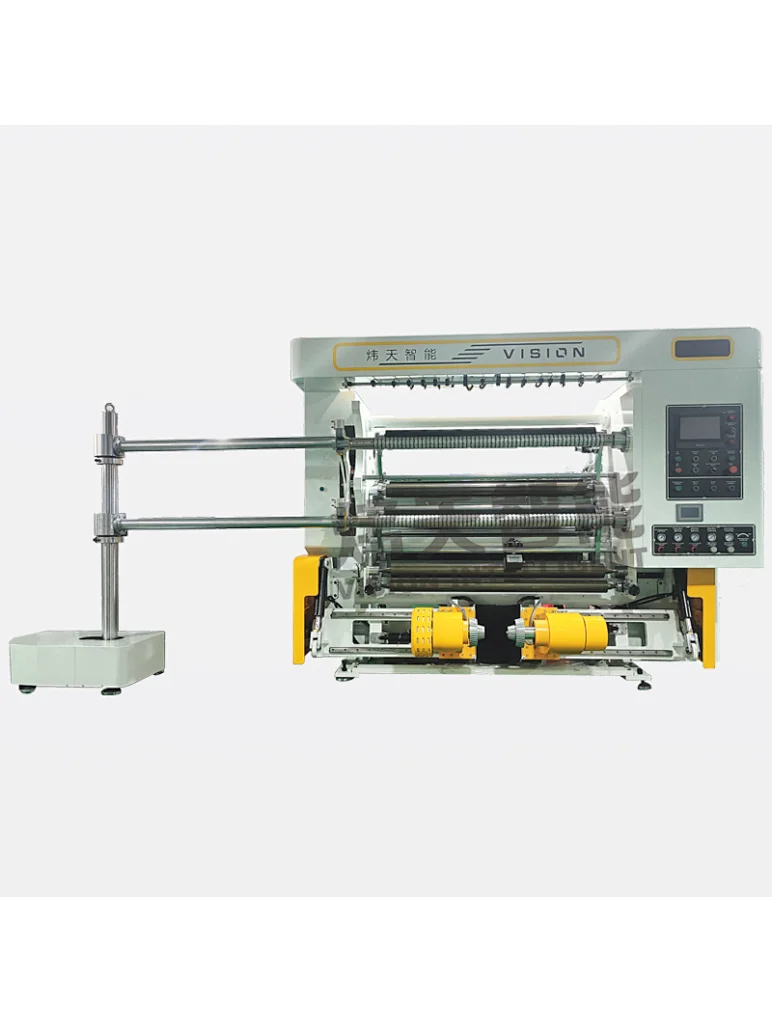

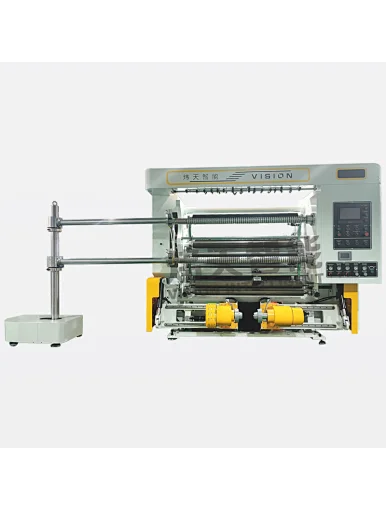

Vertical High-speed laminated Film Slitting Machine
RST1300V
1.Adoptes advanced man-machine interface system, with meter automatic stop, automatic detection of remaining amount, working parameters can be set and operating status can be displayed on the screen.
2.Famous and imported brands of parts are used for Low-voltage electrical appliances and pneumatic components
3. The main machine and the rewinding use synchronous servo motor, ensure the tension is stable, the rewinding is neat and the waste edge is not easy to break.
4. Rewinding adopts 3" spline differential air shaft, optional for automatic unloading rack, saving time and effort.
5. Unwinding adopts integrated 3"/6" universal shaftless for loading and unloading, automatic hydraulic feeding, saving time and effort
6、Equipped with negative pressure paper connection platform, saving time for material change
7、Adopts advanced web guide system
8、Steel roller is driven by a synchronous servo motor and pressing roller is made of wear-resistant rubber
2.Famous and imported brands of parts are used for Low-voltage electrical appliances and pneumatic components
3. The main machine and the rewinding use synchronous servo motor, ensure the tension is stable, the rewinding is neat and the waste edge is not easy to break.
4. Rewinding adopts 3" spline differential air shaft, optional for automatic unloading rack, saving time and effort.
5. Unwinding adopts integrated 3"/6" universal shaftless for loading and unloading, automatic hydraulic feeding, saving time and effort
6、Equipped with negative pressure paper connection platform, saving time for material change
7、Adopts advanced web guide system
8、Steel roller is driven by a synchronous servo motor and pressing roller is made of wear-resistant rubber
Quantity
| 1 | Web Width | 1300 mm |
| 2 | Unwinding Diameter | ∮800mm |
| 3 | Rewinding Diameter | ∮450mm |
| 4 | Slitting Web Width | 30 mm - 1300 mm |
| 5 | Maximum Speed (Depending on Different Materials) | 500m/min |
| 6 | Motor | 4kw Servo Motor |
| 7 | Rewinding Motor | 4kw Servo Motor |
| 8 | Transfer Method | Synchronous Belt |
| 9 | Slitting Accuracy | ±0.1mm |
| 10 | Total Power | 15kw |
| 11 | Voltage | 380V |
| 12 | Machine Weight | 3000kg |
| 13 | Dimensions(Length*Width*Height) | L 4590mm*W 1350mm*H 2080mm |
