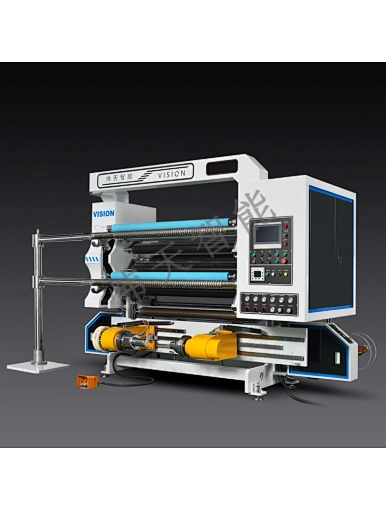

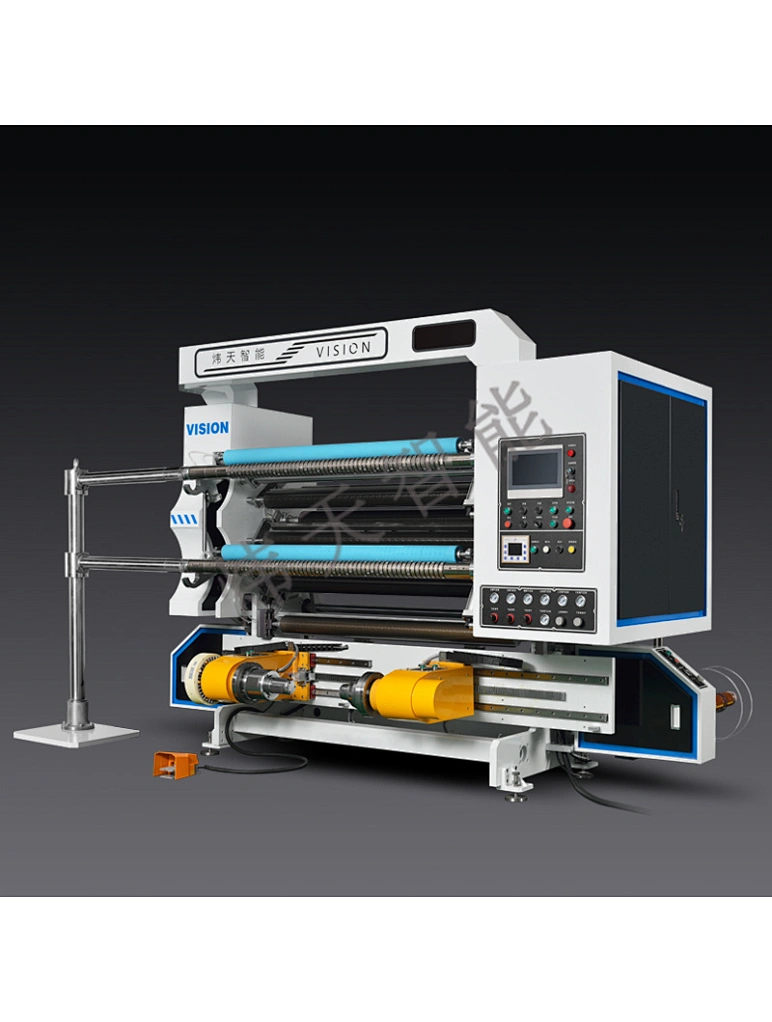

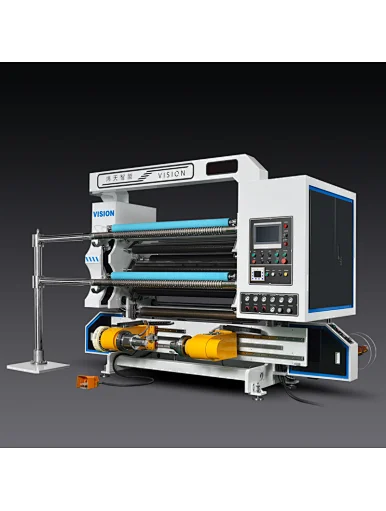

Vertical slitting rewinding machine
Vertical slitting rewinding machine
CLSF-L1300
1.Siemens PLC and human-machine interface, with meter-counting automatic shutdown, the remaining amount is automatically dynamic detection, automatic speed regulation of line speed, working parameters and operating status can be set on the screen

2、The main machine and the rewinding adopts the independent servo motor and PLC of the domestic first-line brand for follow-up control, with a pre-tension system, high speed and stable tension.

3、Rewinding adopts 3 spline slip friction shaft.

4、Unwinding adopts integrated 36 universal shaft-less loading.

5、The Web Guiding System adopts EPC Web Guiding device

6、Traction adopts active steel rollers, wear-resistant rubber on the surface of passive pressure roller

7、Low-voltage electrical appliances and pneumatic components are domestic famous and imported

8、Slitting method adopts razor blade slitting method
Quantity




Material types are applicable to various flexible packaging films: CPP, BOPP, PET, PE, composite films, aluminized films and other soft non-adhesive materials.

NO.

name

 CLSF-L1300

1

Max web width

1300 mm

2

Unwind DIA

 ∮800mm

3

Rewind DIA

∮450mm    ∮3 friction shaft

4

Min slit width

30 mm - 1300 mm

5

Mechanical speed

500m/min

6

Main motor

2.9kw  servo motor

7

Winding motor

2.9kw  servo motor

8

Transfer method

synchronous belt

9

Guide shaft

∮80~∮100Hard aluminum alloy aluminum roll10、Correction range:150mm、precision ±0.1mm

10

total machine power

12kw

11

Work Voltage

Three-phase four-wire system  AC380V

12

Weight

2800kg

Dimension

L1600mm*W3300mm*H2100mm
