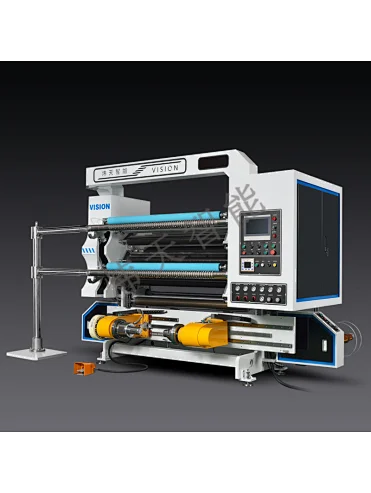

Slitting rewinding machine
RSM1300
1. Master control: PLC and man-machine interface with meter counting.
Automatic stop, automatic detection of residual quantity and automatic speed regulation of linear speed.
2. Winding tension: controlled by servo motor and PLC.
With pre-tension system.
3. Unwinding: integrated 3/6-inch universal shaftless loading and unloading is adopted.
Hydraulic clamping and hydraulic lifting.
4. Rectification system: adopt advanced rectification device,
Used for edge control.
5. Traction: Traction steel roller and wear rubber wheel.
6. Cutting: straight knife rest (round knife can be selected).
7. Automatic material pushing device: motor screw structure,
Realize automatic material pushing.
8. Unloading device: rotating unloading mechanism can facilitate packing.
9, unwinding hydraulic feeding, clamping, stable and convenient!
Automatic stop, automatic detection of residual quantity and automatic speed regulation of linear speed.
2. Winding tension: controlled by servo motor and PLC.
With pre-tension system.
3. Unwinding: integrated 3/6-inch universal shaftless loading and unloading is adopted.
Hydraulic clamping and hydraulic lifting.
4. Rectification system: adopt advanced rectification device,
Used for edge control.
5. Traction: Traction steel roller and wear rubber wheel.
6. Cutting: straight knife rest (round knife can be selected).
7. Automatic material pushing device: motor screw structure,
Realize automatic material pushing.
8. Unloading device: rotating unloading mechanism can facilitate packing.
9, unwinding hydraulic feeding, clamping, stable and convenient!
