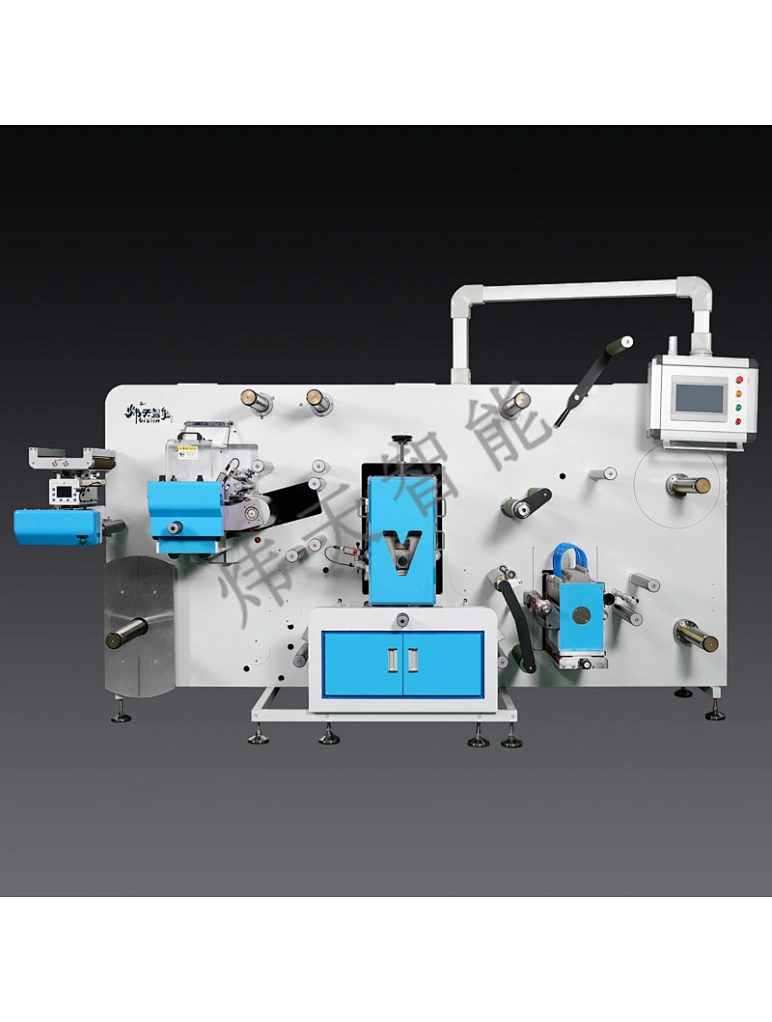

Digital finishing machine

Digital finishing machine

Model NO. RDF

1.All servo motor control

2.Print, cold foil, varnish and laminate

3.UV dryer

4.Full rotary and semi-rotary exchange

5.Shear knife and razor knife slitting

6.Servo control rewind shaft, bidirectional running

7.Online diagnosis and remote function

8.In line with digital printing system (HP, Xeikon etc.)

9.Optional on: roll lifter, web cleaner, corona, hot air drying, gap master, automatic slitting, IML, sheeting...etc.

Quantity

Contact Now add to cart

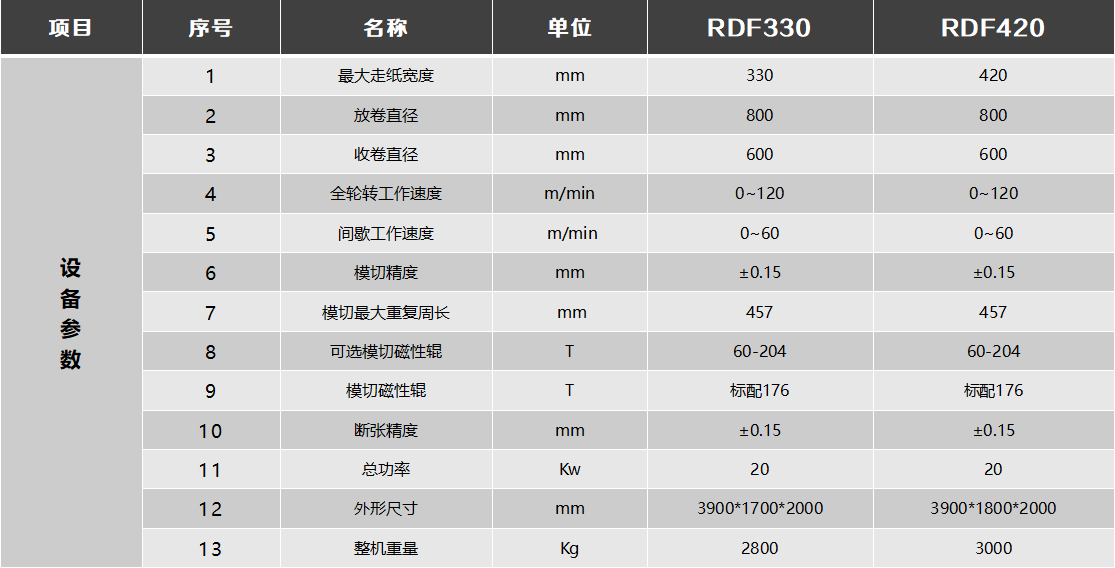

Name	Unit	RDF330	RDF420
Max. Roll Width	mm	350	440
Max. Paper Width	mm	330	420
Max. Unwind Diameter	mm	800	800
Max. Rewind Diameter	mm	600	600
Max die-cutting Speed(rotary)	m/min	0~120	0~120
Max die-cutting Speed(semi-rotary)	m/min	0~60	0~60
Die-cutting Accuracy	mm	±0.15	±0.15
Max die cutting repeat length	mm	457	457
Optional magnetic cylinder	T	60-204	60-204
Standard magnetic cylinder	T	176	176
Total power	Kw	20	20
Dimension	mm	3900 x 1700 x 2000	3900 x 1800 x 2000
Weight	Kg	2800	3000
