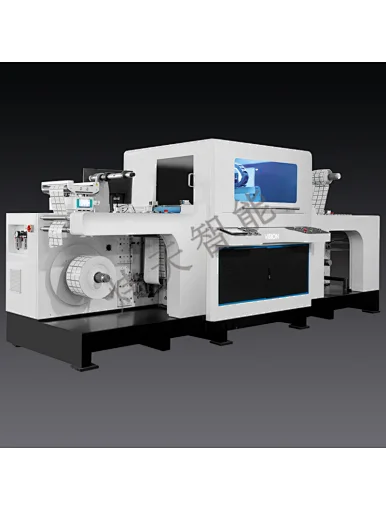

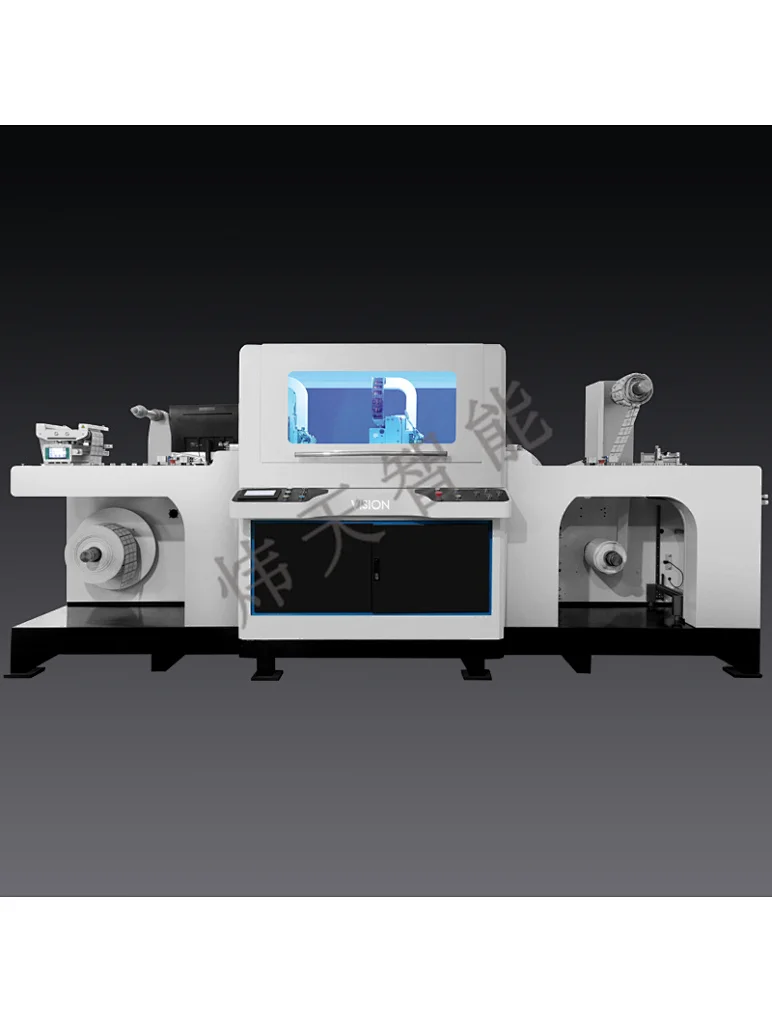

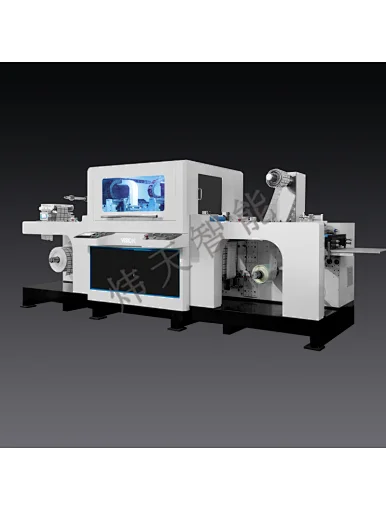

Digital plotter cutting machine
RD-330D
1.Modular design
2.All servo control system

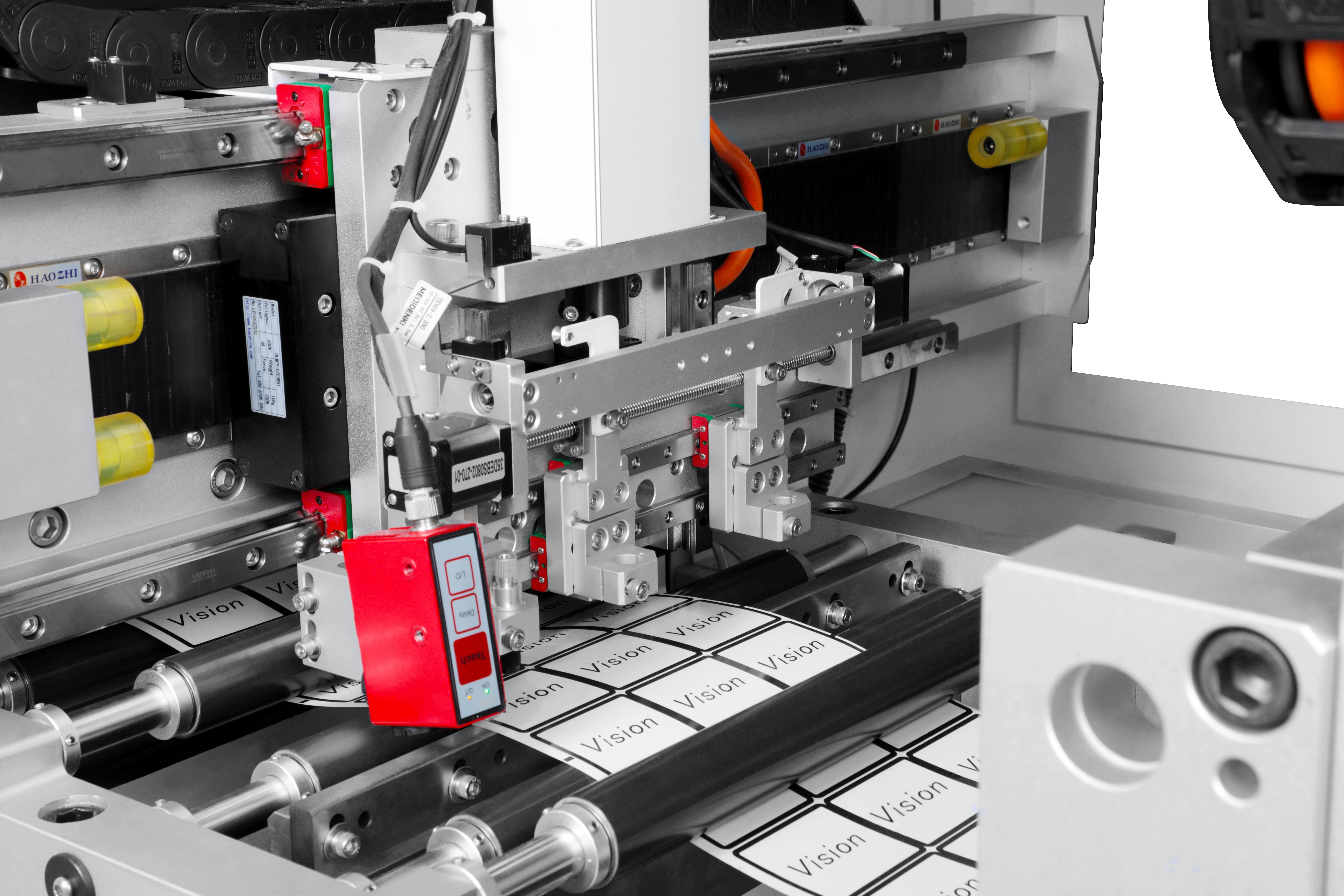

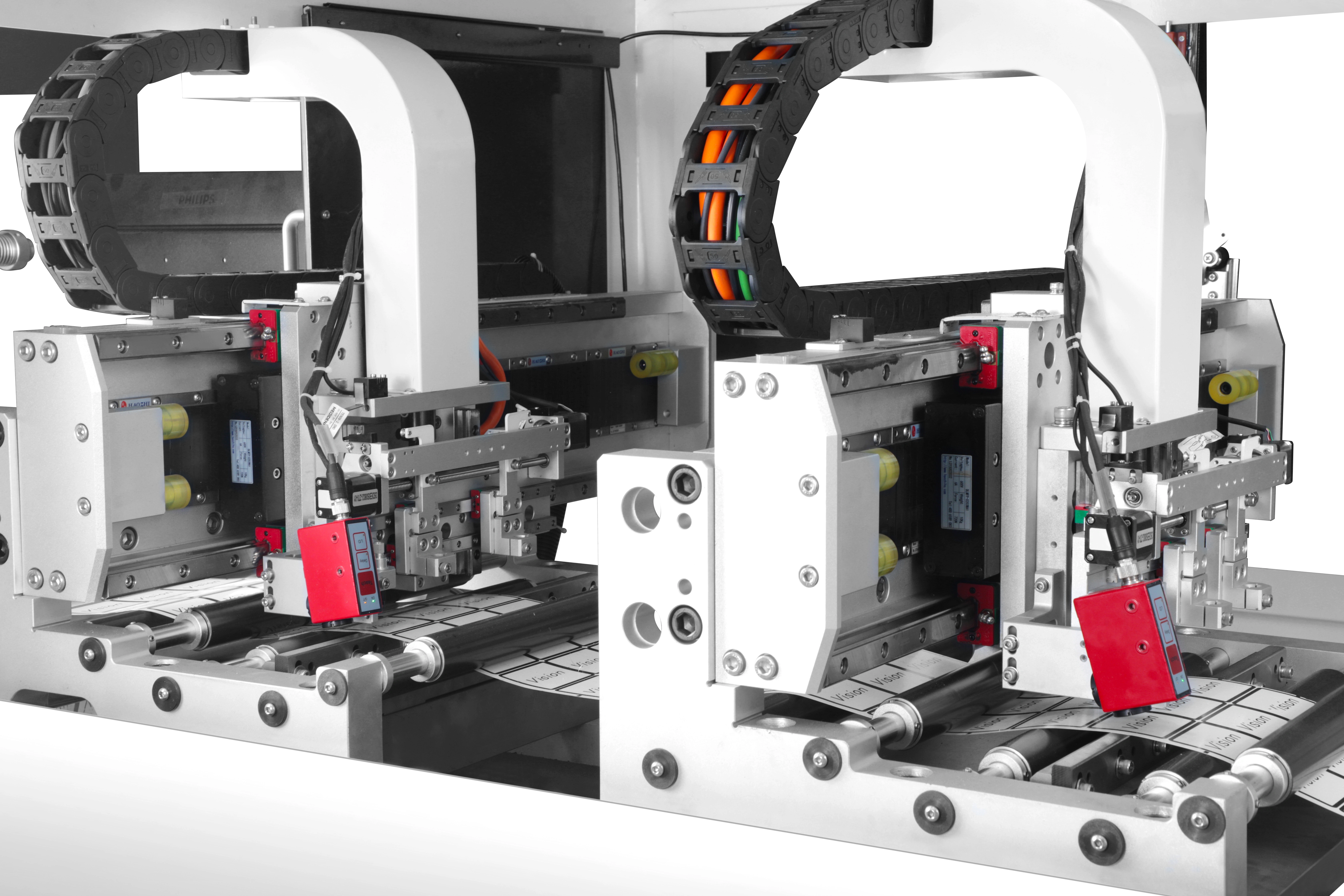

3.Dual sets, 6 knives
4.Applicable bladeline file format:AI
5.Laminate function
6.Sheeting and conveyor 7.Razor slitting
2.All servo control system
3.Dual sets, 6 knives
4.Applicable bladeline file format:AI
5.Laminate function
6.Sheeting and conveyor 7.Razor slitting
Quantity
| Name | RD-330D |
Max Roll width | 350mm |
Max repeat length | 450mm |
Digital blade | 3 blades |
Min/Max gap of blades | 65mm/260mm |
Laminate | 2 shafts(for unwind and rewind) |
Die cutting speed | 0-15 m/min(depends on label shape and size) |
Die cutting accuracy | +-0.05mm |
Max unwind roll diameter | 400mm |
Max rewind roll diameter | 400mm |
Slitting mode | Razor knife slitting(5 knives) |
Rewind | 2 sets |
Tool set | 1 set |
Voltage/Current | 3PH+N+PE 380V, 25.5A |
Gross power | 12.3KW |
Weight | 2000KG |
Dimension (L*W*H ) | 2300mm* 1300mm* 1520mm |
