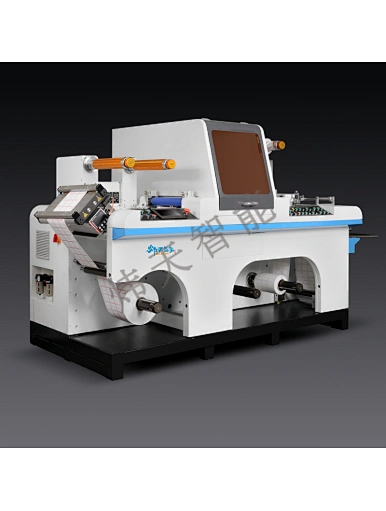

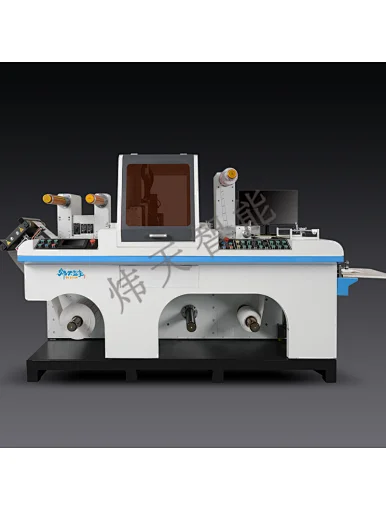

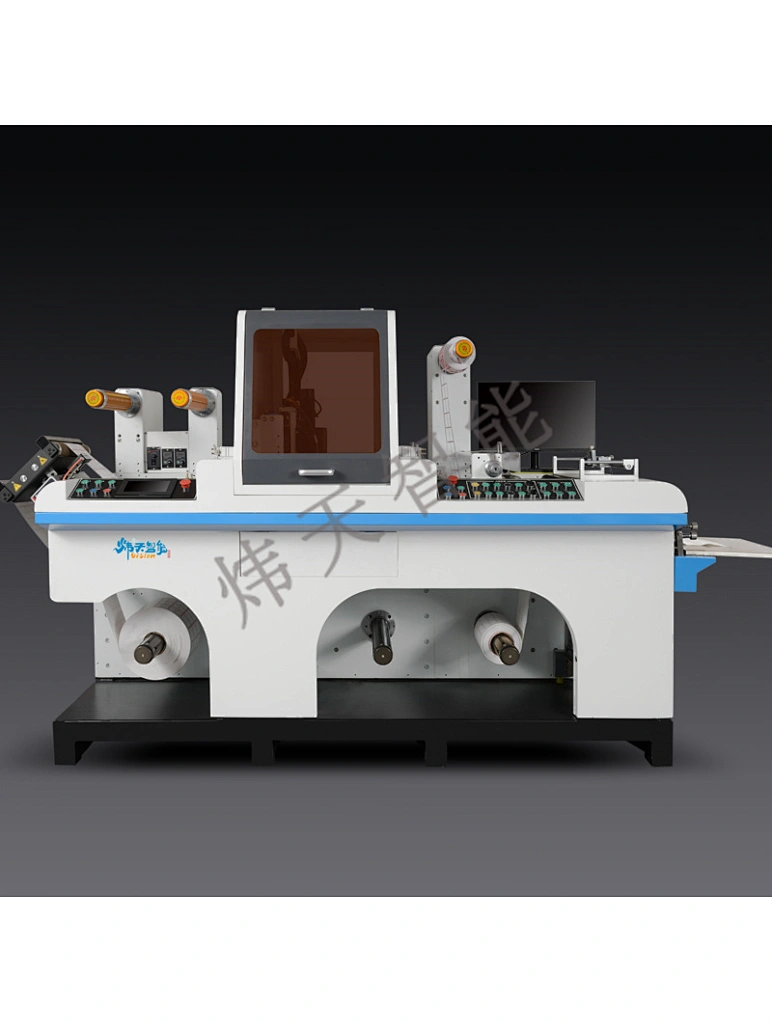

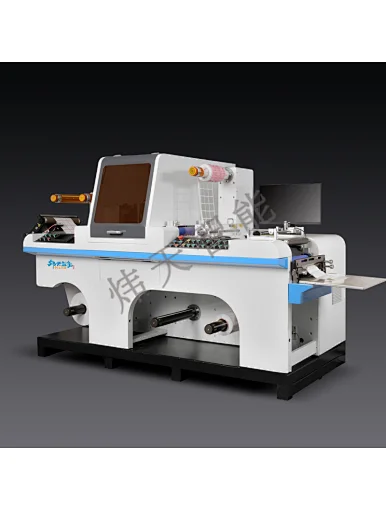

Digital plotter cutting machine

Digital plotter cutting machine

Model NO. RD-330DA

1.Modular design

2.All servo control system

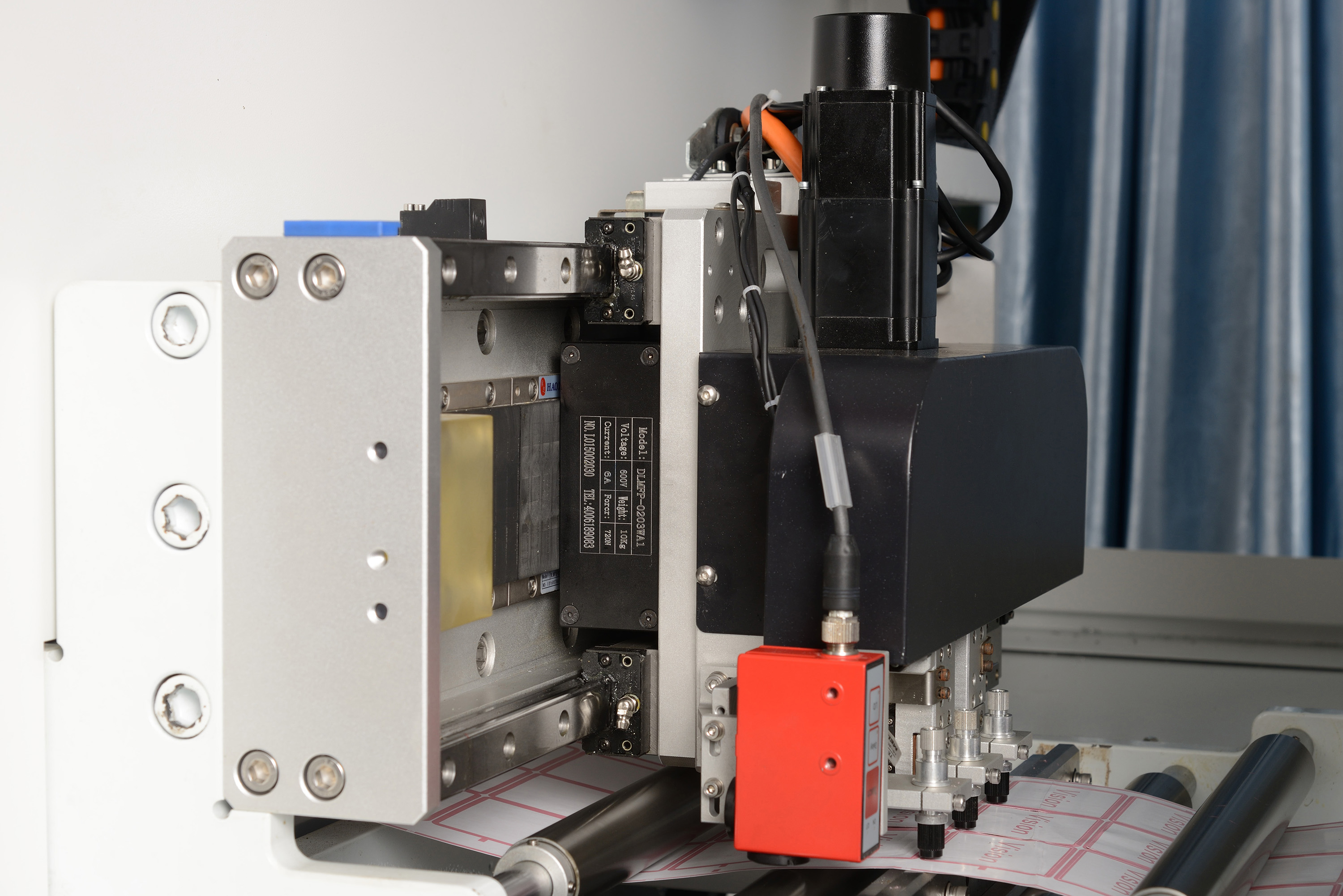

3.One sets, 3 knives

4.Applicable bladeline file format:AI

5.Laminate function

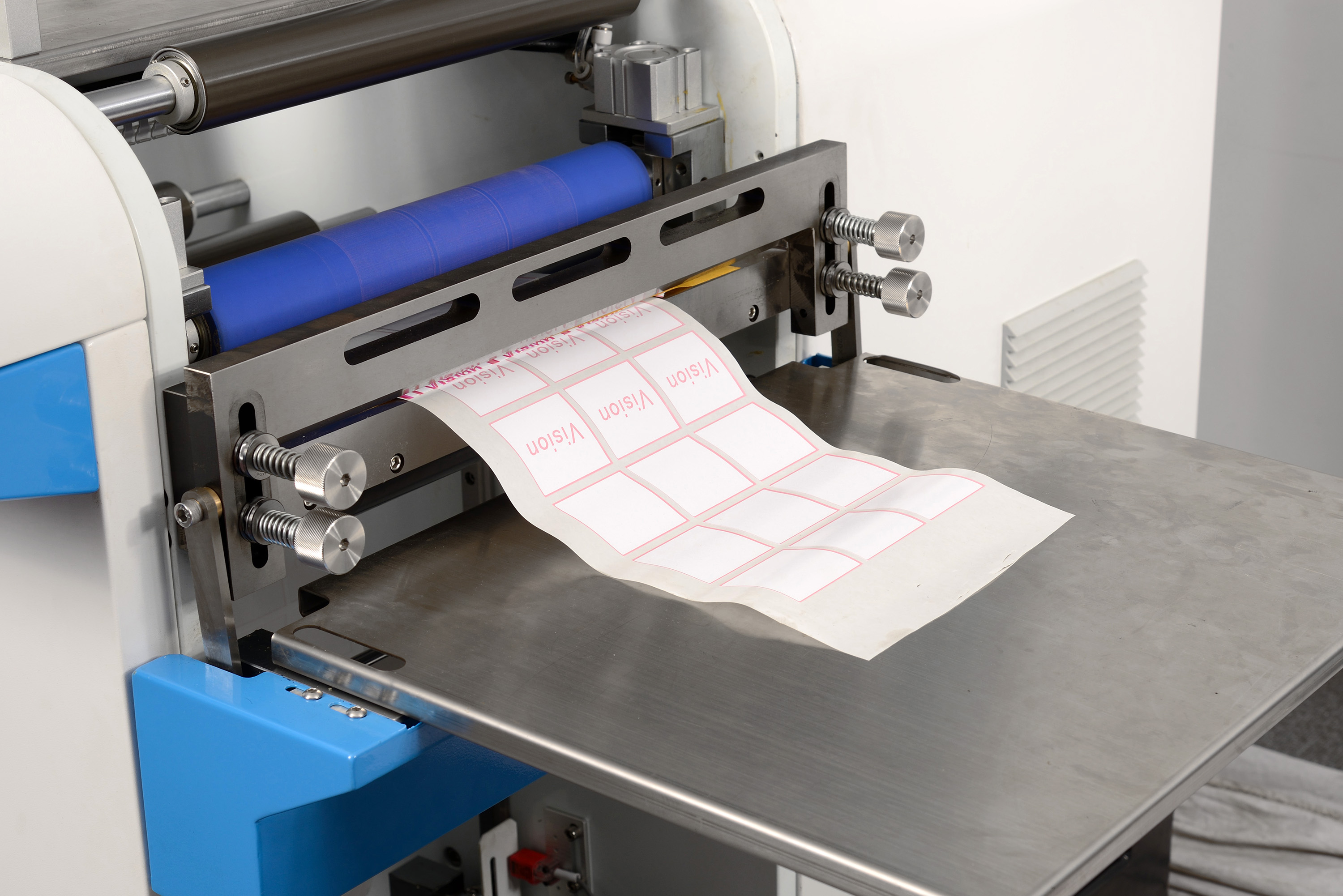

6.Sheeting and conveyor 7.Razor slitting

Quantity

Contact Now add to cart







NO.	Name	RD-330DA
1	Max Roll width	350mm
2	Max repeat length	330mm
3	Digital blade	3 blades
4	Min/Max gap of blades	65mm/260mm
5	Laminate	2 shafts(for unwind and rewind)
6	Die cutting speed	0-15 m/min(depends on label shape and size)
7	Die cutting accuracy	±0.05mm
8	Max unwind roll diameter	400mm
9	Max rewind roll diameter	400mm
10	Slitting mode	Razor knife slitting(5 knives)

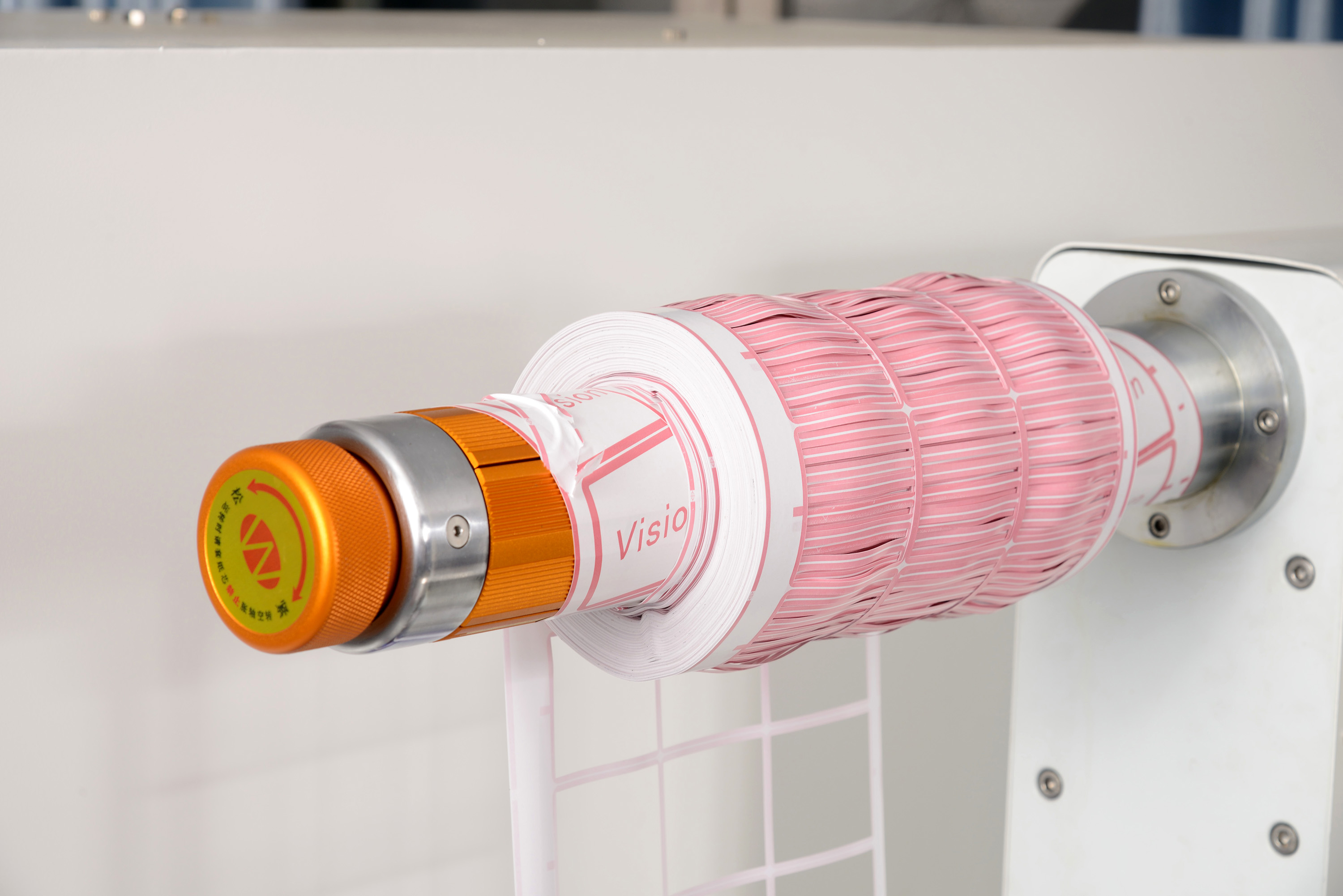

11	Rewind	2 sets
12	Tool set	1 set
13	Voltage/Current	3PH+N+PE 380V, 25.5A
15	Gross power	24KW
15	Weight	1500KG
16	Dimension (L*W*H )	2340mm*1325mm*1700mm
