flexo printing machine technical parameters
VS-370S/480S
1

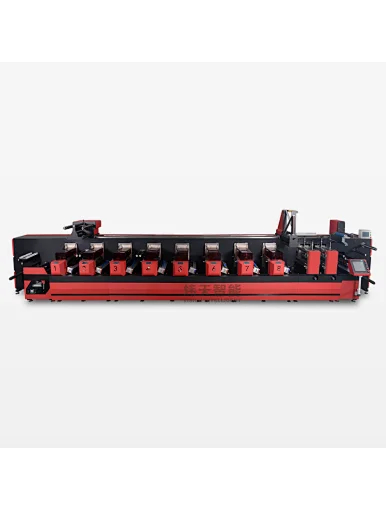

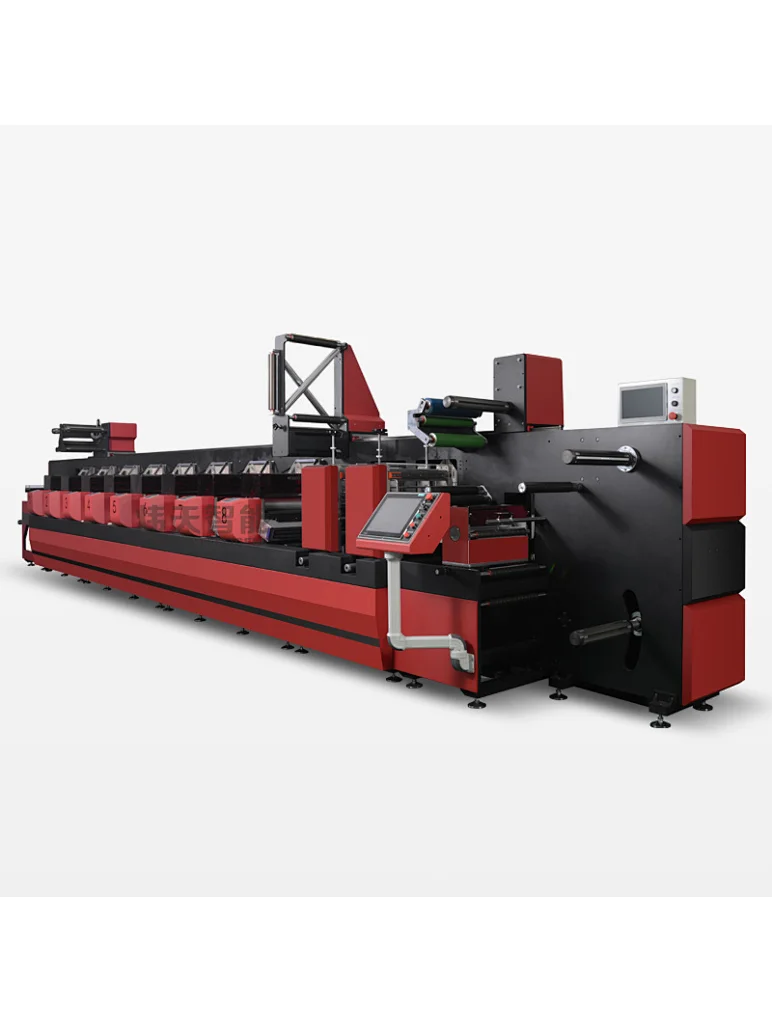

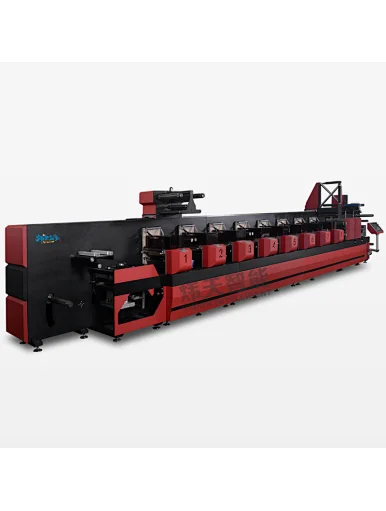

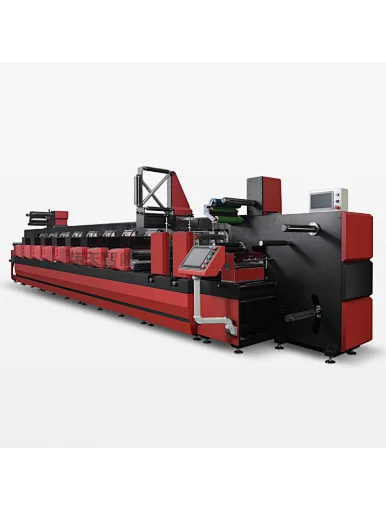

1.VS-370S/480S flexo press, is designed to produce high quality labels and IML labels (optional) in high speed.。
2.1000mm large size servo motor controls the unwind device, which can make the paper run smoothly and the end stop automatically.
3.Compact machine and extremely short paper paths reduce material waste.
4.The whole machine adopts servo system, with a total of 32 servo motors, including unwind unit, two traction rollers, 8 printing units, 2 sets of die-cutting units, waste removal unit, and 1 set of crush knife
unit. The full servo driven design makes the tension of the material stable and smooth.
2.1000mm large size servo motor controls the unwind device, which can make the paper run smoothly and the end stop automatically.
3.Compact machine and extremely short paper paths reduce material waste.
4.The whole machine adopts servo system, with a total of 32 servo motors, including unwind unit, two traction rollers, 8 printing units, 2 sets of die-cutting units, waste removal unit, and 1 set of crush knife
unit. The full servo driven design makes the tension of the material stable and smooth.
Quantity
| No. | Name | VS-370S | VS-480S |
| 1. | Max web width | 370mm | 480mm |
| 2. | Max printing width | 350mm | 430mm |
| 3. | Max unwind dia | 1000mm | 1000mm |
| 4. | Max rewind dia | 1000mm | 1000mm |
| 5. | Max printing speed | 200m/min | 180m/min |
| 6. | Printing accuracy | ±0.1mm | ±0.1mm |
| 7. | Die cutting accuracy | ±0.15mm | ±0.15mm |
| 8. | Printing range | 250mm-500mm | 250mm-500mm |
| 9. | Printing range | 250mm-500mm | 250mm-500mm |
| 10. | Max die cutting speed | 120m/min | 120m/min |
| 11. | Pre-register | Leuze | Leuze |
| 12. | Rated power of the whole machine | 165KW 50/60HZ | 165KW 50/60HZ |
| 13. | Name | VS-370S | VS-480S |
| 14. | Servo motor rated power | 70KW | 70KW |
| 15. | UV drying rated power | 80KW | 80KW |
| 16. | Rated power of water cooler | 10KW | 10KW |
| 17. | Rated power of other parts | 10KW | 10KW |
| 18. | Air | 0.8Mpa | 0.8Mpa |
| 19. | Current | 70A | 70A |
| 20. | Weight | Depends on the spec, about 9000KG | Depends on the spec, about 10000KG |
