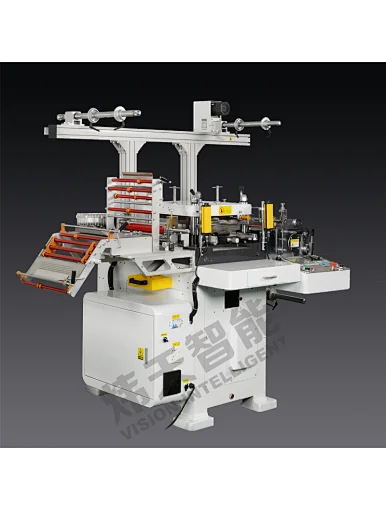

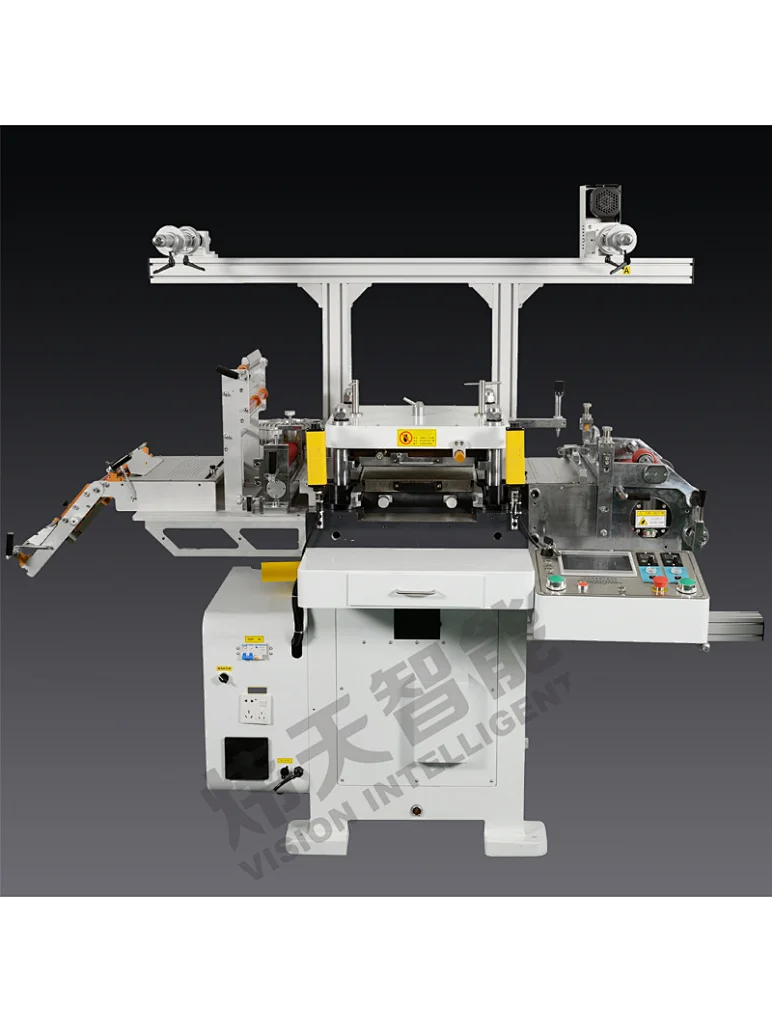

High Speed Die Cutting Machine

High Speed Die Cutting Machine
RS-D
1
1. Single-punch use, stable pressure and strong punching force.

2. Automatic oil supply system reduces mechanical wearing.

3. Compact size and low noise.
Quantity





Name

RS-D300

RS-D350

Feed width

310mm

360mm

The maximum die cutting area

300mm*250mm

350mm*300mm

The maximum operating speed

18000pcs/h

18000pcs/h

Stroke of die seat

26mm

26mm

Stroke regulation quantity

30mm

30mm

Pulling material precision

±0.03mm

±0.03mm

Integration seeking precision

±0.05mm

±0.05mm

Closing height of hardware die

75mm-95mm(Adjustable)

75mm-95mm(Adjustable)

Dimensions of lower template

350mm*270mm*40mm

400mm*320mm*40mm

Dimensions of upper template

350mm*270mm*29mm

400mm*320mm*29mm

Lubrication mode

Automatic circulation and oil supply

Automatic circulation and oil supply

Applicable knife die

Wooden plate die, rubber plate die, AB die,
hardware die, QDC die, corrosion die, etching die

Wooden plate die, rubber plate die, AB die,
 hardware die, QDC die, corrosion die, etching die

Pressure regulation mode

Auto pressure regulation

Auto pressure regulation

Total power

5.6kw

5.6kw

Outline dimensions

2280mm*1300mm*1950mm

2300mm*1350mm*1950mm

Net weight of machine

1600kg

1900kg



Name

RS-G350

RS-G450

Feed width

360mm

460mm

The maximum die cutting area

350mm*300mm

450mm*390mm

The maximum operating speed

18000pcs/h

12000pcs/h

Stroke of die seat

26mm

26mm

Stroke regulation quantity

30mm

30mm

Pulling material precision

±0.03mm

±0.03mm

Integration seeking precision

±0.05mm

±0.05mm

Closing height of hardware die

75mm-95mm(Adjustable)

84mm-104mm(Adjustable)

Dimensions of lower template

400mm*320mm*40mm

480mm*410mm*40mm

Dimensions of upper template

400mm*320mm*29mm

480mm*410mm*38mm

Lubrication mode

Automatic circulation and oil supply

Automatic circulation and oil supply

Applicable knife die

Wooden plate die, rubber plate die, AB die,
hardware die, QDC die, corrosion die, etching die

Wooden plate die, rubber plate die, AB die,
hardware die, QDC die, corrosion die, etching die

Pressure regulation mode

Auto pressure regulation

Auto pressure regulation

Total power

6.5kw

9.6kw

Outline dimensions

1600mm*1350mm*1350mm

1750mm*1600mm*1350mm

Net weight of machine

1800kg

2000kg
