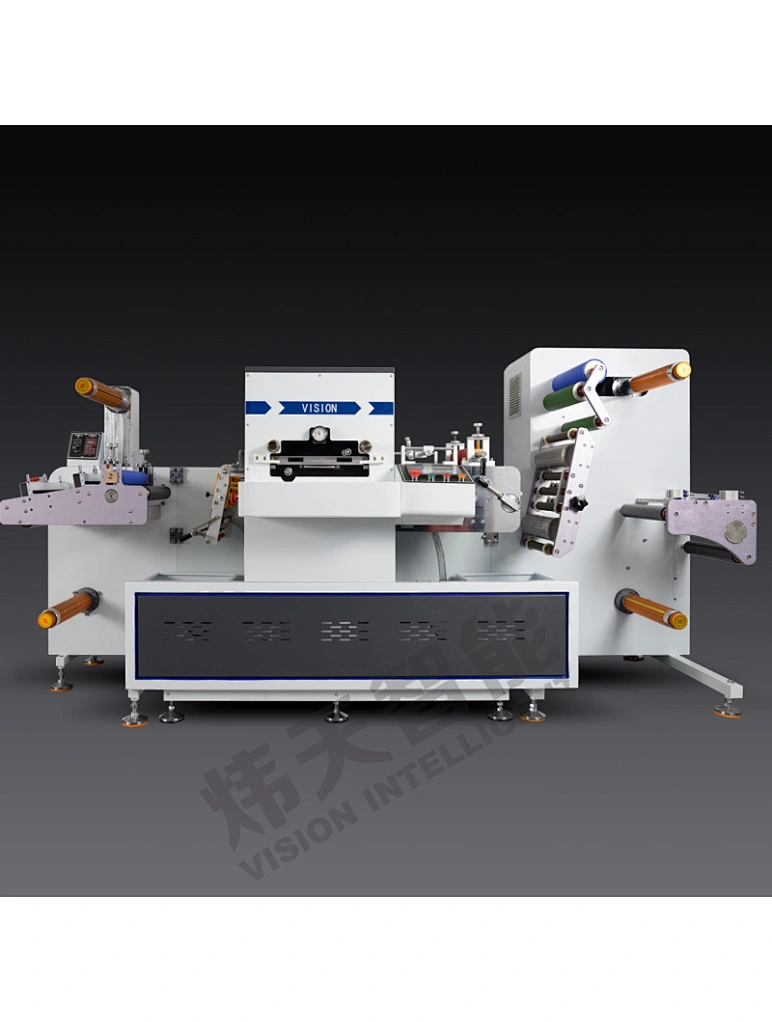

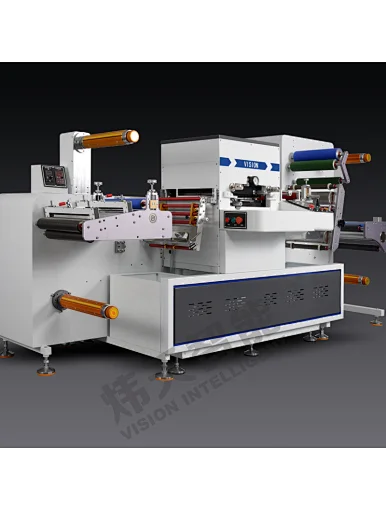

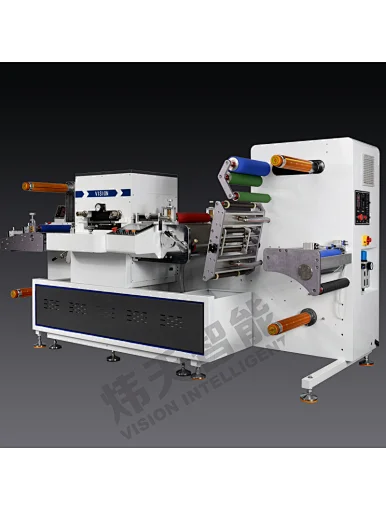

High speed flat-bed die cutting machine

High speed flat-bed die cutting machine
RS-V
1
Intermittent flat-bed die cutting unit
- Servo driven. heavy duty frame, accessible design, high precision.
- Automatic/ Manual Die Cutting Registration, die cutting speed can be up to 120m/min(550 times/min)
Can do hot stamping, embossing, flat-bed die cutting, steady and with short leading time.
Quantity




name

RS-V370

RS-V450RS-V530

Max web width

370mm

460mm

540mm

The maximum die cutting area

360mm*335mm

450mm*380mm

530mm*450mm

The maximum operating speed

450pcs/min

80m/min

450pcs/min

80m/min

450pcs/min

80m/min

Pulling material precision

±0.1mm

±0.1mm

±0.1mm

Dimensions of lower template

377mm*350mm*17mm

457mm*400mm*17mm

537mm*470mm*17mm

Dimensions of upper template

389mm*355mm*17mm

469mm*400mm*17mm

549mm*470mm*17mm

Lubrication mode

Automatic circulation and oil supply

Automatic circulation and oil supply

Automatic circulation and oil supply

Applicable knife die

Wooden plate die, rubber plate die,hardware die, corrosion die,

Wooden plate die, rubber plate die,hardware die, corrosion die,

Wooden plate die, rubber plate die,hardware die, corrosion die,

Total power

11kw

13kw

15kw

Outline dimensions

3300mm*1450mm*1660mm

3300mm*1530mm*1660mm

3300mm*1610mm*1660mm

Net weight of machine

3500kg

3900kg

4300kg
