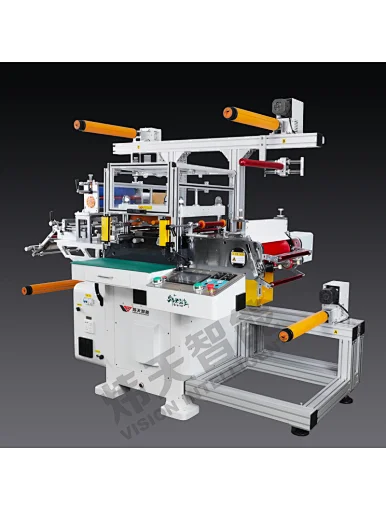

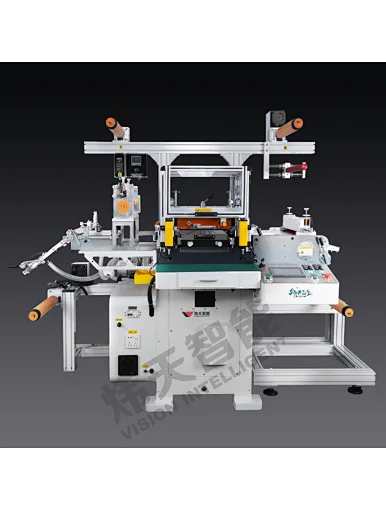

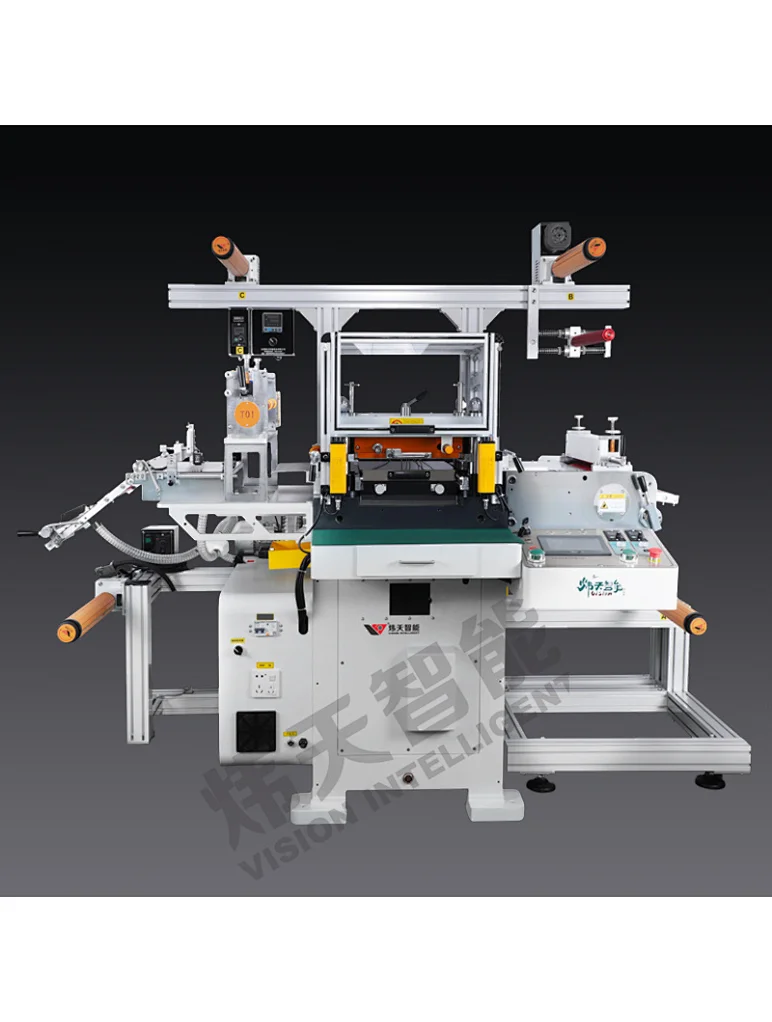

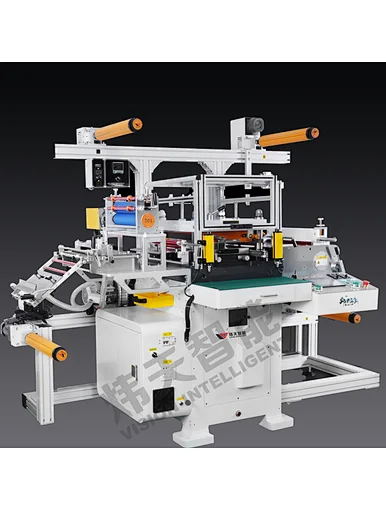

High speed hot stamping&die cutting machine

High speed hot stamping&die cutting machine

Model NO. RS-W

1. Machine is compact and easy to install;

2. Intelligent, stable and easy to operate;

3.Good hot stamping result, no fading, wide application,

Quantity

Contact Now add to cart




Name	RS-W350
Feed width	360mm
The maximum die cutting area	350mm*300mm
The maximum operating speed	15000pcs/h
Stroke of die seat	26mm
Stroke regulation quantity	30mm
Pulling material precision	±0.03mm
Closing height of hardware die	75mm-95mm(Adjustable）
Dimensions of lower template	400mm*320mm*39.5mm
Dimensions of upper template	400mm*320mm*29mm
Lubrication mode	Automatic circulation and oil supply
Applicable knife die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die,  corrosion die, etching die
Pressure regulation mode	Auto pressure regulation



name	RSW-350	Remark
Asynchronous feeding width	350mm	RSS  Up asynchronization die
Asynchronous feeding precision	±0.03mm
Feeding method	Servo feeding
Control mode	Magnetic powder control tension
Rewinding axis	1set
Unwinding axis	2set
Total power	7.2kw
Outline dimensions	2900mm*1350mm*1950mm
Net weight of machine	2100mm
