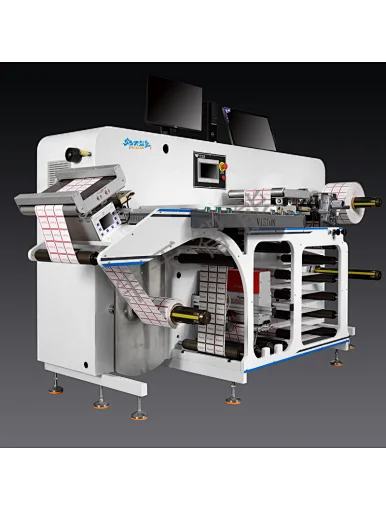

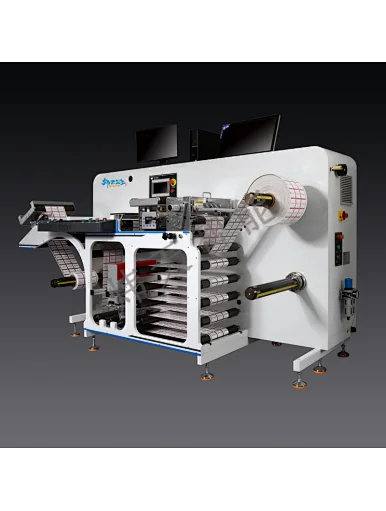

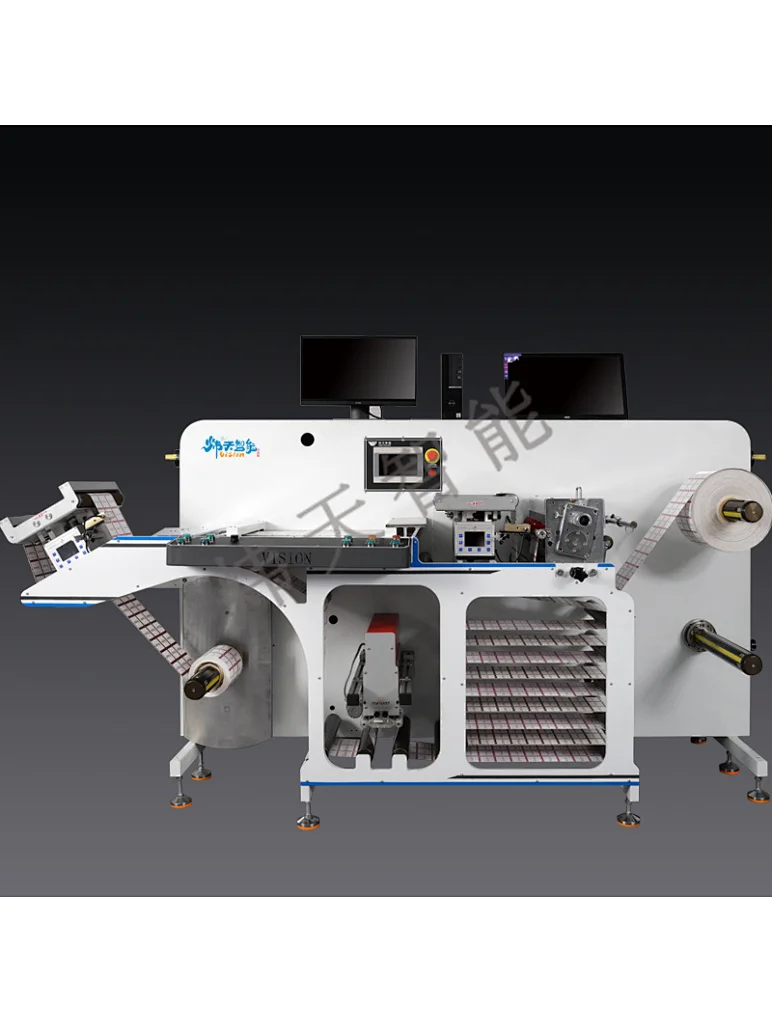

High speed inspection slitting machine
VS-A370
1
1.All servo motor control
2.EPC web guide system with splice table
3.Inspection on line system
4.Splicing table
5.Standard shear knife slitting 6.Meters/Counts stop machine
7.Servo control rewind shaft, bidirectional running 8.Optional long wasted material rewind shaft
2.EPC web guide system with splice table
3.Inspection on line system
4.Splicing table
5.Standard shear knife slitting 6.Meters/Counts stop machine
7.Servo control rewind shaft, bidirectional running 8.Optional long wasted material rewind shaft
Quantity
Name | Unit | VS-A370 |
Max. Paper Width | mm | 370 |
Max. Unwind Diameter | mm | 700 |
Max. Rewind Diameter | mm | Upper 500 Lower 700 |
Slitting speed | m/min | 0~300 |
Inspection speed | m/min | 0~120 |
Min slitting width | mm | 16 |
Total power | Kw | 8 |
Dimension | mm | 2600*1300*1400 |
Weight | Kg | 1500 |
