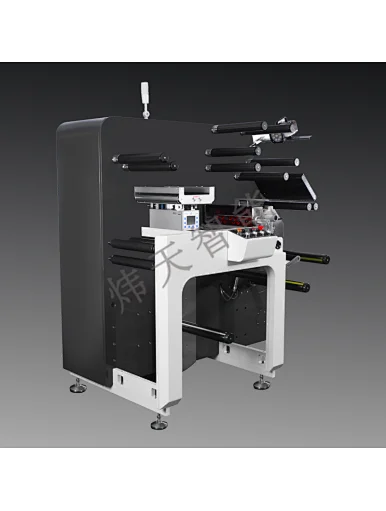

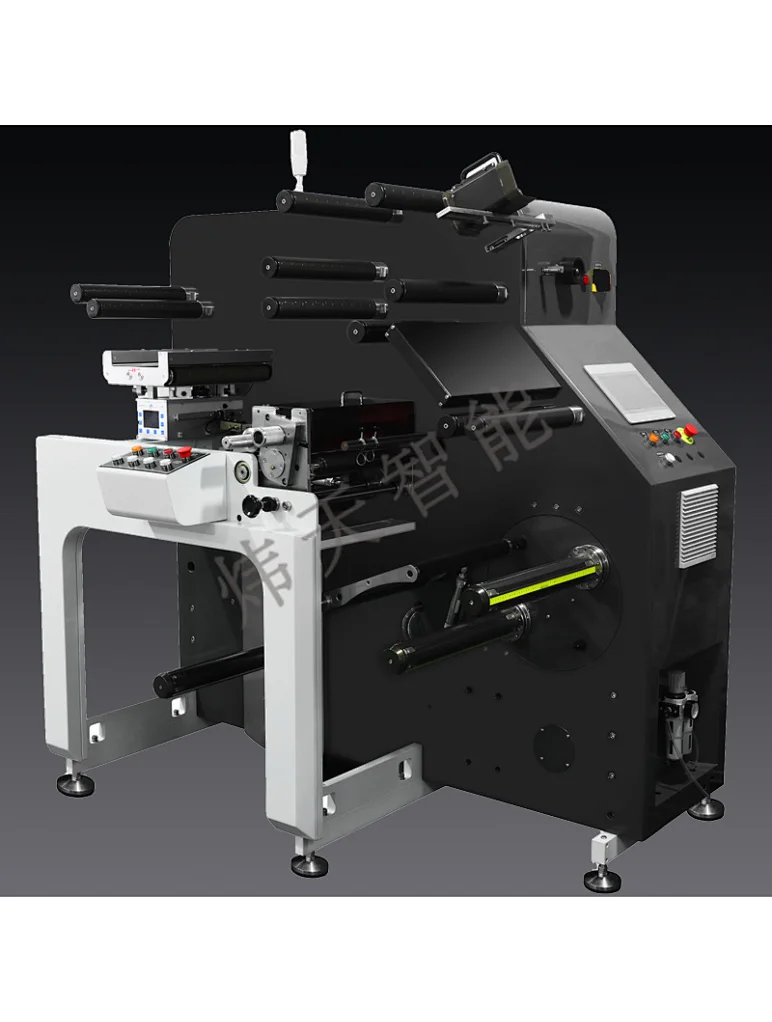

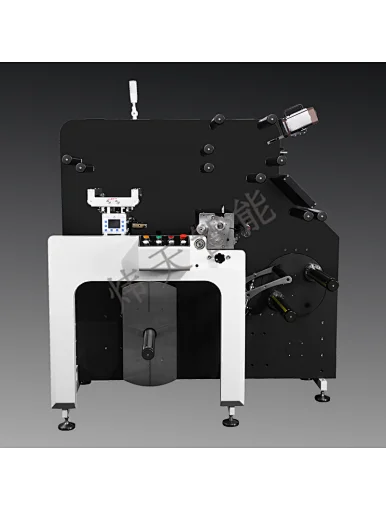

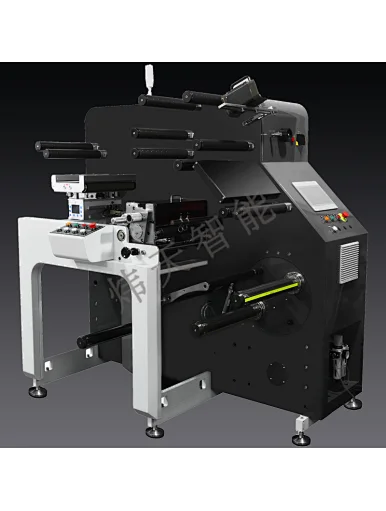

High speed slitting machine
VS-B370
1
Technical Highlights:
1. servo driven unwinder
-precise unwind tension control
-reel end detector
2.electronic webguide with ultrasonic web sensor
3.servodriven precision slitting cassette
-precise slitting tension control
-quick exchange cassette for setup outside the rewinder
-during production to reduce setup time and waste
4.trim waste extraction fan
5.extended web path for automatic stop at splice table during QC-inspection and doctoring mode
6.easy access splice table with web clamps
7.semi automatic, servo driven turret rewinder
-automatic slow down, stop & turn at selected reel diameter or
-label count for signifificant increase in productivity

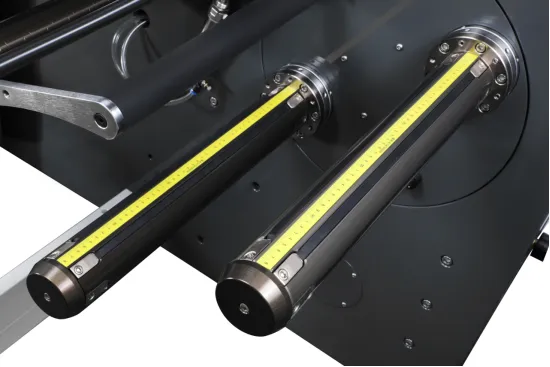

-exchangeable shafts for various diameters
8. user friendly 10” touch screen HMI, job archive (>500 settings) to reduce setup time and waste, remote service access by modem
1. servo driven unwinder
-precise unwind tension control
-reel end detector
2.electronic webguide with ultrasonic web sensor

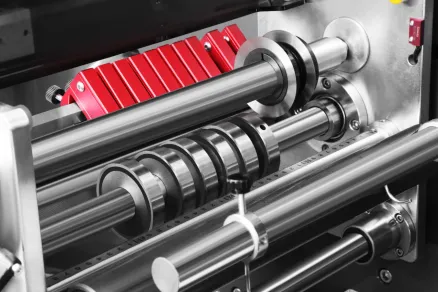

3.servodriven precision slitting cassette
-precise slitting tension control
-quick exchange cassette for setup outside the rewinder
-during production to reduce setup time and waste
4.trim waste extraction fan
5.extended web path for automatic stop at splice table during QC-inspection and doctoring mode
6.easy access splice table with web clamps
7.semi automatic, servo driven turret rewinder
-automatic slow down, stop & turn at selected reel diameter or
-label count for signifificant increase in productivity
-exchangeable shafts for various diameters
8. user friendly 10” touch screen HMI, job archive (>500 settings) to reduce setup time and waste, remote service access by modem
Quantity
| NO. | Name | param eter |
| 1 | Max. Roll Width | 370mm |
| 2 | Max. Mechanical Speed | 300m/min |
| 3 | Max. Unwind Diameter | 800mm |
| 4 | Max. Rewind Diameter | 450mm |
| 5 | Unwind drive | Servo motor |
| 6 | Rewind drive | Servo motor |
| 7 | Semi automatic turret rewinder | Yes |
| 8 | Electronic web-guide | Yes |
| 9 | Slitting Accuracy | +/-0.2mm |
| NO. | Name | param eter |
| 1 | Quick change knives cassette | Yes |
| 2 | Shear knives | Yes |
| 3 | Razor knives | Yes |
| 4 | Trim waste extraction | Yes |
| 5 | Linear meter counter | Yes |
| 6 | Power Consumption | 6kw |
| 7 | Air Supply | 100 psi |
| 8 | Power Supply | 3PH+ N+ PE |
| 9 | Machine Weight | 1.5T |
| 10 | Machine size | 1800mm*1450mm* 1825mm |
