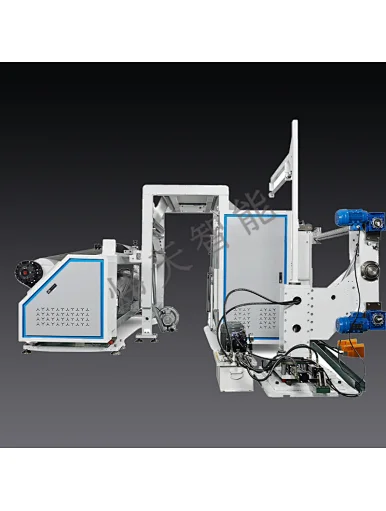

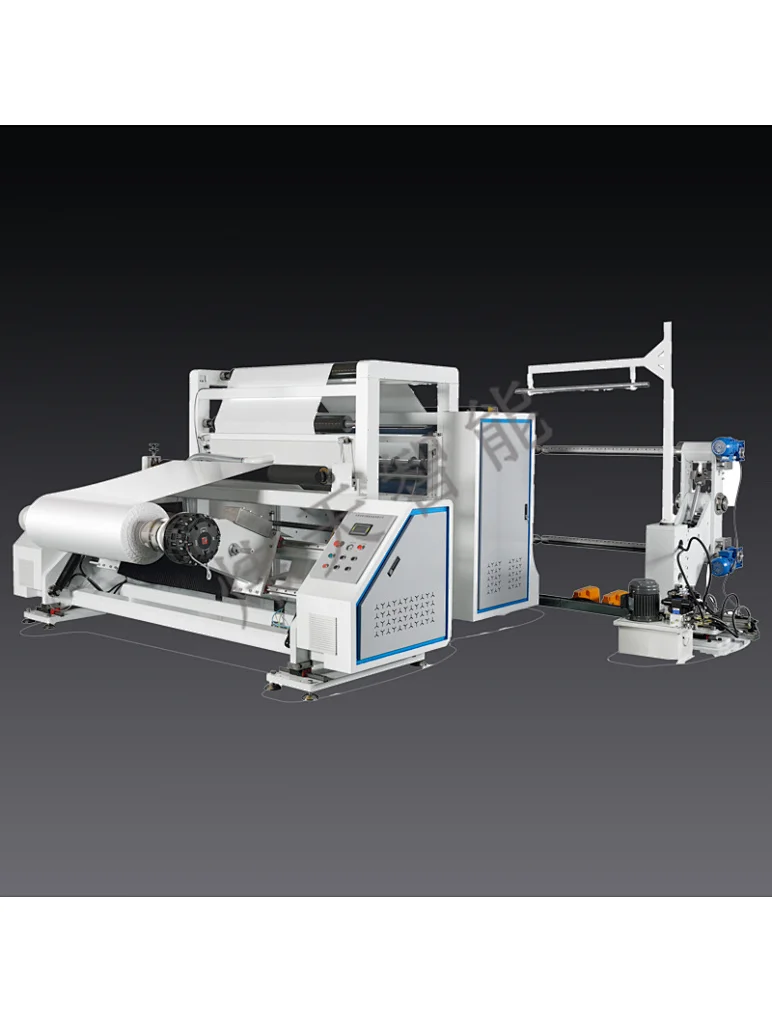

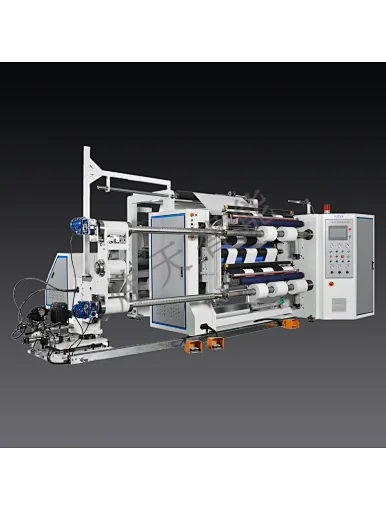

High speed slitting machine

High speed slitting machine
SLM-A
1. Human-machine interface, with the functions of automatic stop of meter counting, automatic detection of remaining amount, automatic speed regulation of line speed, working parameters and display operation status can be set on the screen

2. The main machine and rewinder adopts Chinese good brand independent servo motor and PLC for follow-up control, with the pre-tension system, high speed and stable tension.

3. Rewinder: 3" ball-type friction air shaft, and automatic unload rack is saves time and labour.

4. Unwinder: integrated 3"/6" universal shaftless loading and unloading, automatic hydraulic lifting, saves time and labour.

5. Equipped with a negative pressure paper connect unit, saving time for material change.

6. EPC web-guide device.

7. Pneumatic execution and locking.

8. Low-voltage electrical appliances and pneumatic components are Chinese good brand or imported.

9. Adopting the upper and lower shear knife slitting, and razor knife optional.
Quantity





Application range: Different kinds of self-adhesive labels, kraft paper, release paper,etc.

NO.

Name

CLSP-A1300

 CLSP-A1700

1

Max. Unwind Width

1300mm

1700mm

2

Max. Unwind Diameter

∮1300mm

∮1300mm

3

Max. Rewind Diameter

∮650mm

∮650mm

4

Slitting Width

30 mm - 1300 mm

30 mm - 1600 mm

5

Max. Slitting Speed

300m/min

300m/min

6

Inner paper core size

3 inch

3 inch

7

Slitting accuracy

±0.15mm

±0.15mm

8

Rating Voltage

380V

380V

9

Total power

24KW

28KW

10

Machine Size

L4600mm8*W2900mm*H2000mm

L4600mmW*3200mm*H2000mm

11

Machine Weight

5800KGkg

6200KG
