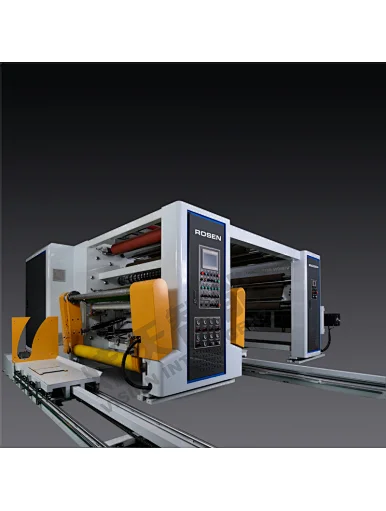

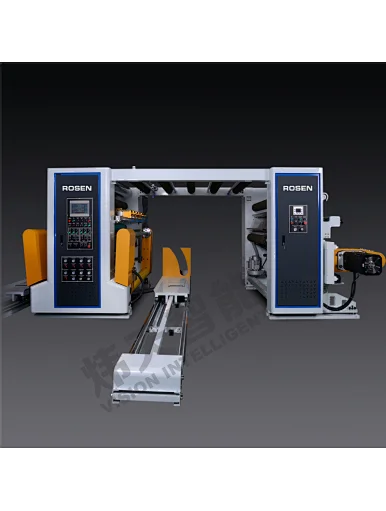

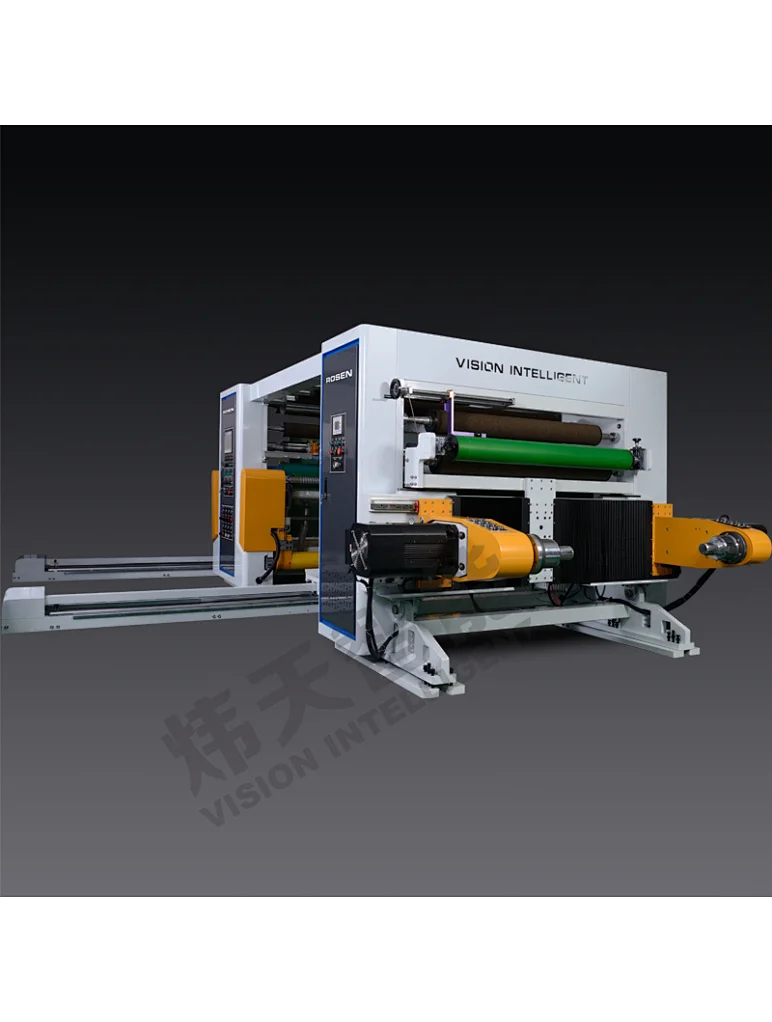

High speed slitting machine
SLM-S
1
1、Main control: Wekoda PLC and man-machine interface, with automatic stop for meter counting, automatic detection of remaining amount, and automatic speed regulation of line speed.

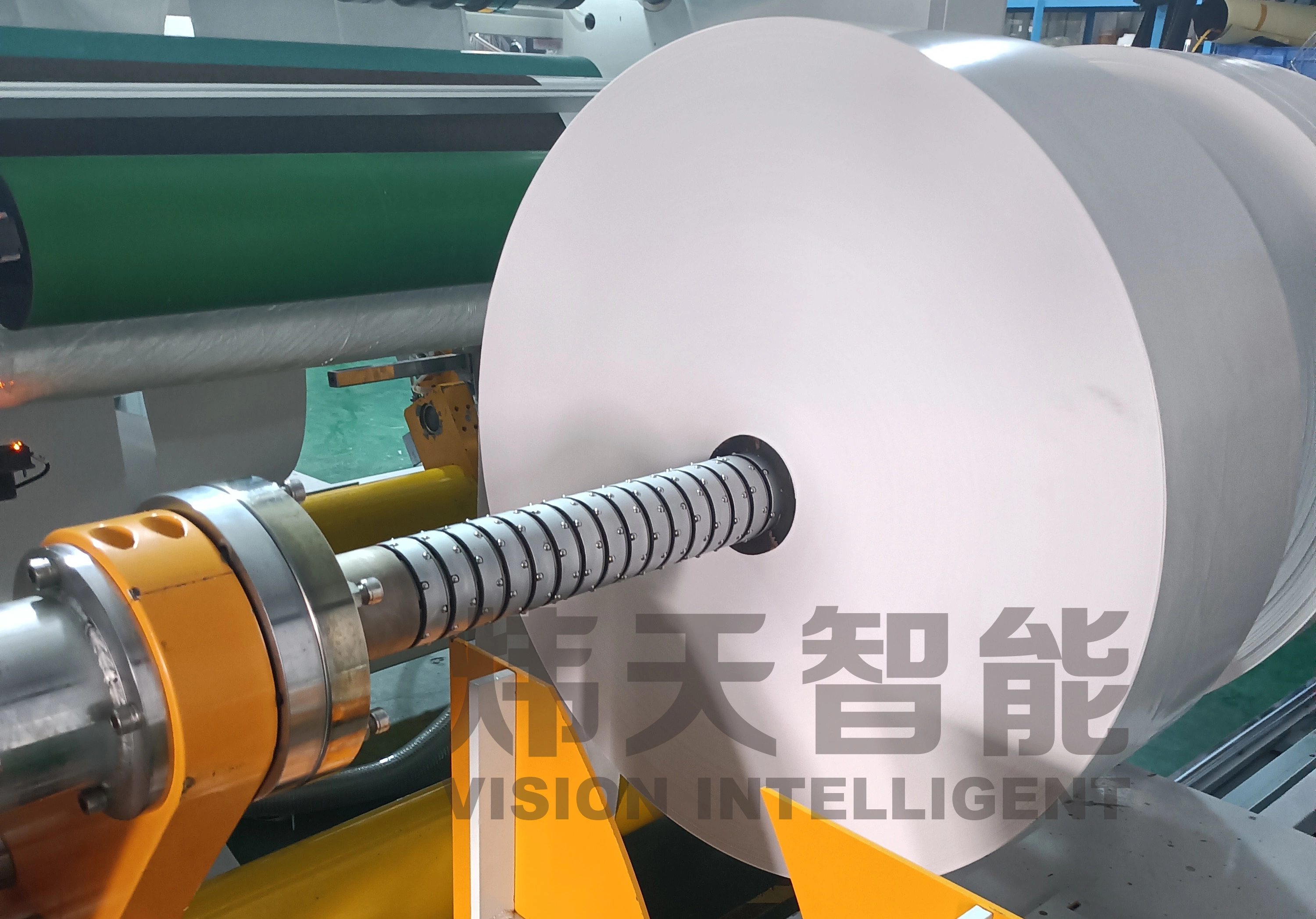

2、Rewind tension: adopts independent motor and PLC for follow-up control, a pre-tension system, and tension automatically controlled by servo motor。
3、Unwind: Adopt integrated 3"/6" universal shaftless loading and unloading, hydraulic lifting and automatic control by servo motor。
4、Web guide system: Pausource web guide,for edge control。

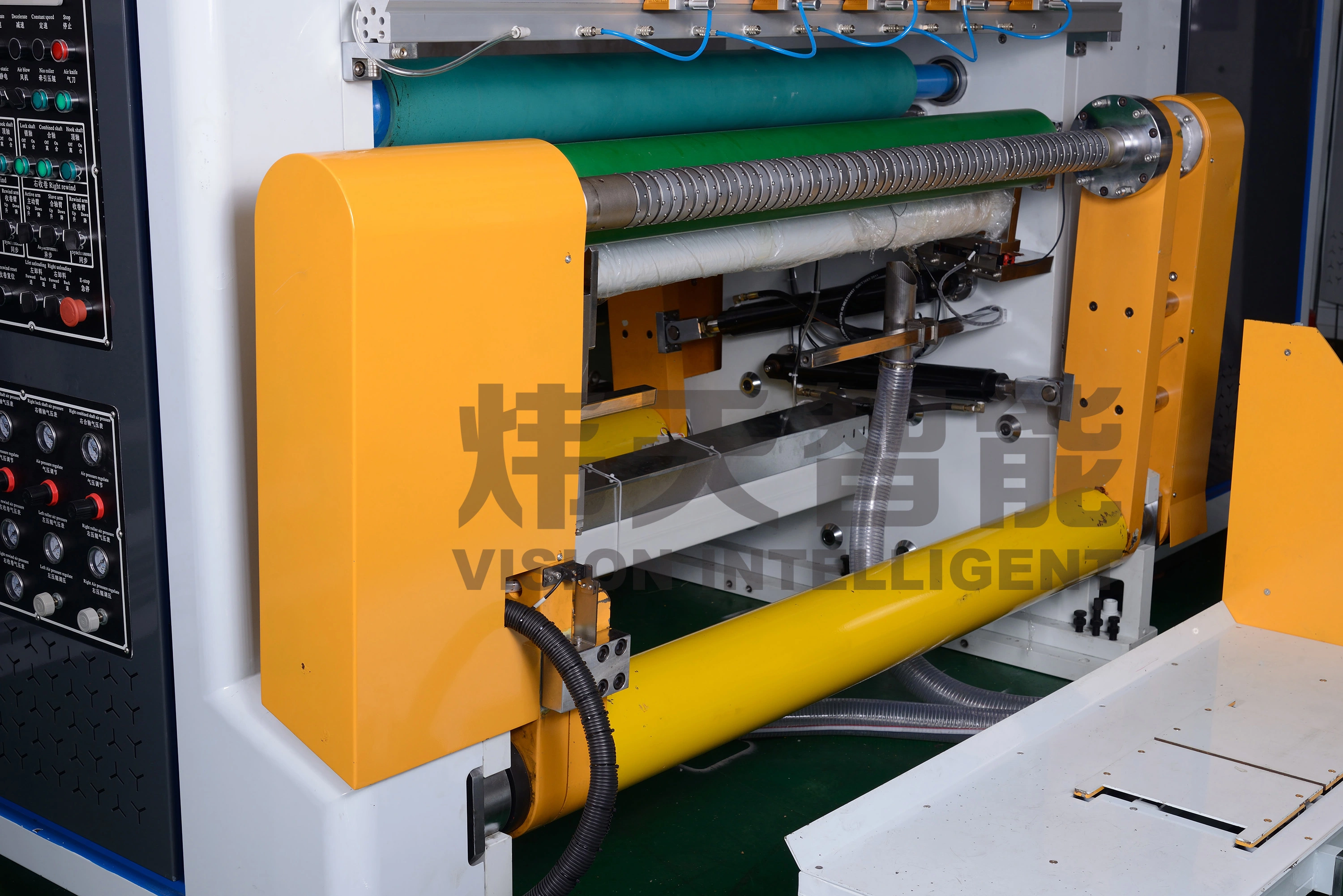

5、Traction: Large-diameter traction steel roller, pressure roller wear-resistant rubber wheel。

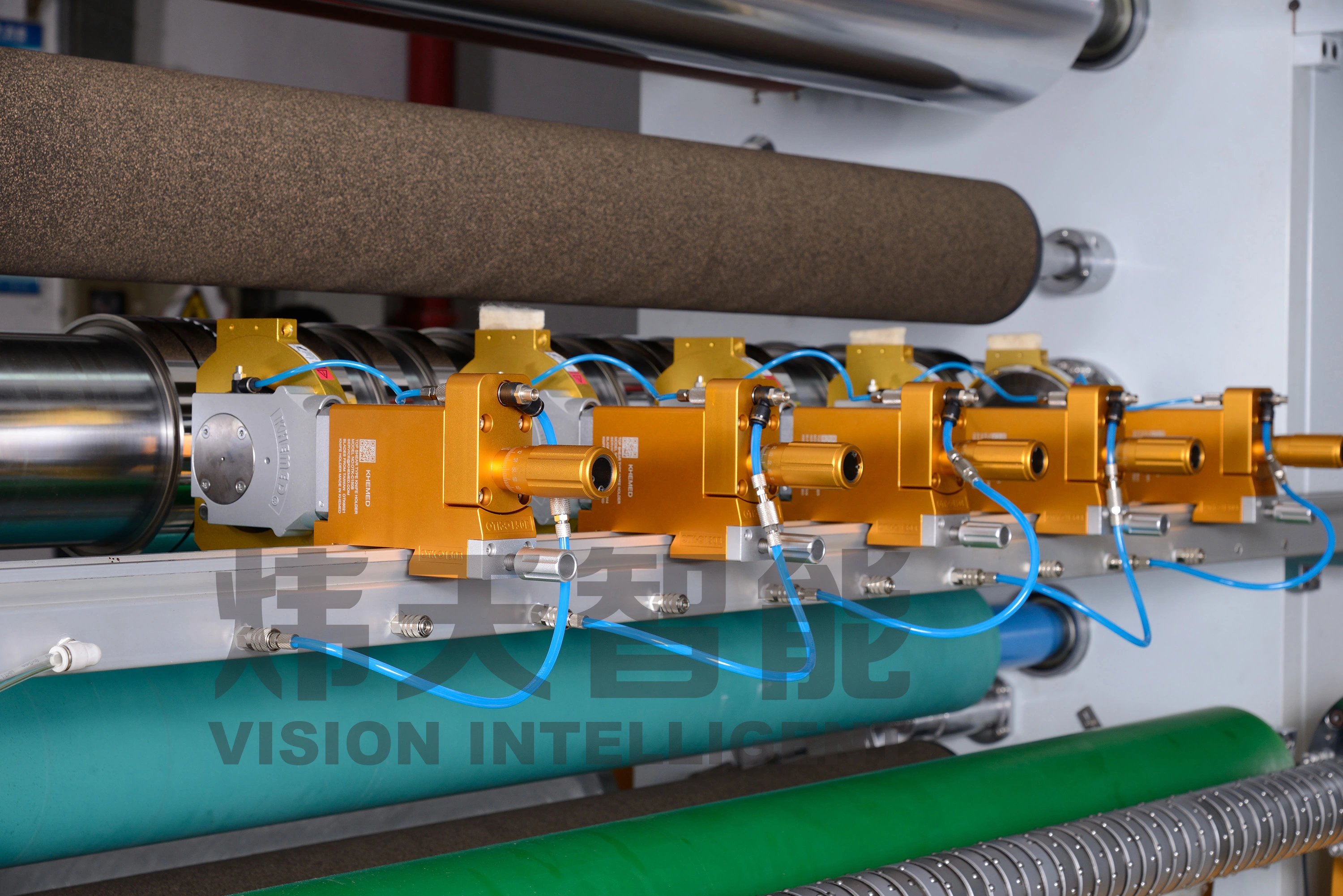

6、Slitter knife : bottom knife with a diameter of ∮180, and the upper knife with a ∮150 manual air knife。
7、Low-voltage electrical appliances and pneumatic components: domestic famous brands and imported ones。
8、Equipped with a line laser, more convenient to rewind and unwind the paper tube positioning。

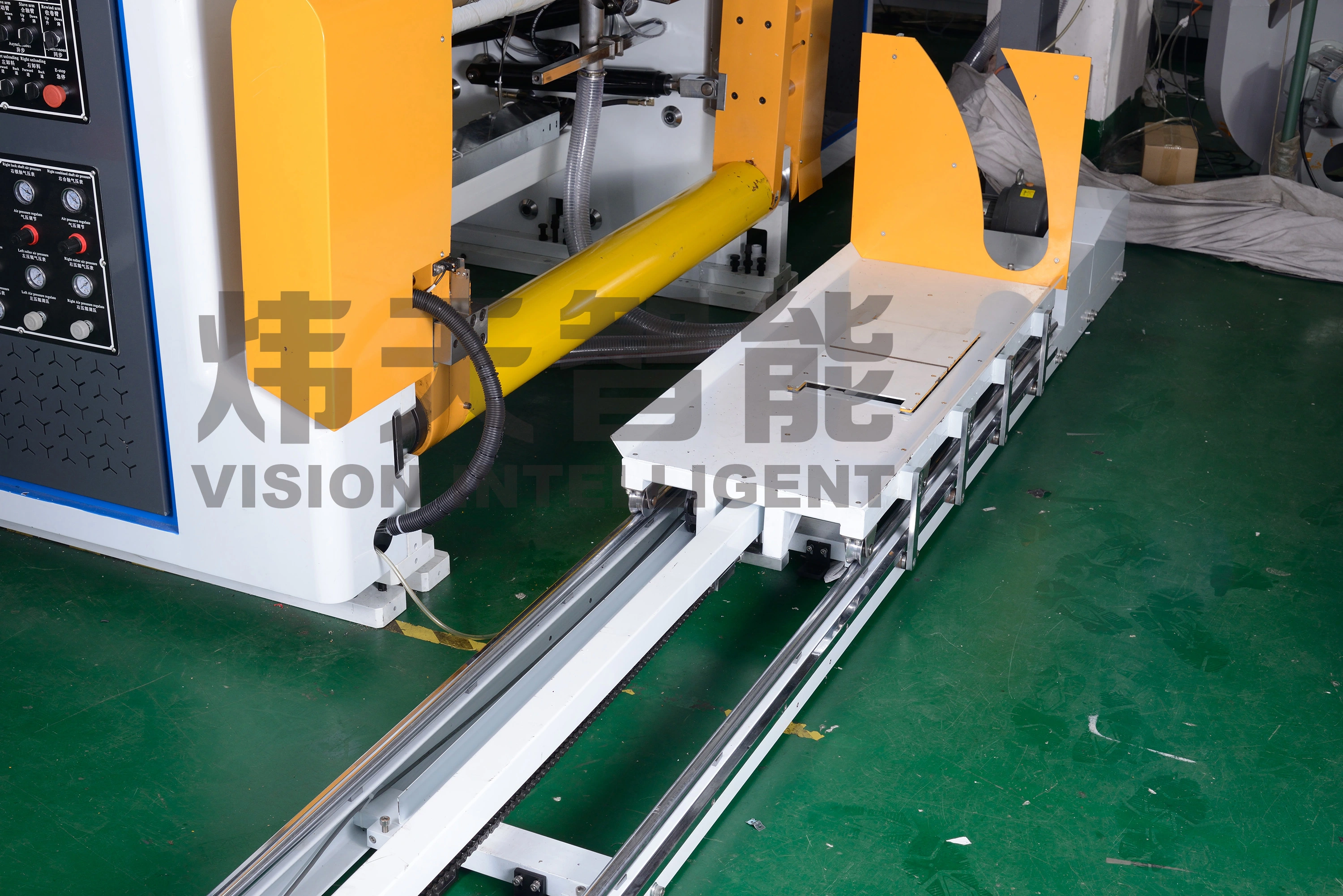

9、Automatic unloading mechanism。
Application range:
Different kinds of self-adhesive labels, kraft paper, release paper, etc
2、Rewind tension: adopts independent motor and PLC for follow-up control, a pre-tension system, and tension automatically controlled by servo motor。
3、Unwind: Adopt integrated 3"/6" universal shaftless loading and unloading, hydraulic lifting and automatic control by servo motor。
4、Web guide system: Pausource web guide,for edge control。
5、Traction: Large-diameter traction steel roller, pressure roller wear-resistant rubber wheel。
6、Slitter knife : bottom knife with a diameter of ∮180, and the upper knife with a ∮150 manual air knife。
7、Low-voltage electrical appliances and pneumatic components: domestic famous brands and imported ones。
8、Equipped with a line laser, more convenient to rewind and unwind the paper tube positioning。
9、Automatic unloading mechanism。
Application range:
Different kinds of self-adhesive labels, kraft paper, release paper, etc
Quantity
Parameters:
| N0. | Name | SLM-S 1300 | SLM-S 1600 |
| 1 | Web width | 1300mm | 1600mm |
| 2 | Unwind Diameter | ∮1300mm | ∮1300mm |
| 3 | Rewind Diameter | ∮1000mm | ∮1000mm |
| 4 | Slitting Width | 50 mm - 1300 mm | 50 mm - 1600 mm |
| 5 | Slitting speed | 500m/min | 500m/min |
| 6 | Web guide range | 150mm | 150mm |
| 7 | Slitting accuracy | ±0.1mm | ±0.1mm |
| 8 | Transmission mode | synchronous belt | synchronous belt |
| 9 | Guide shaft | ∮150 hard aluminum alloy aluminum roller | ∮150 hard aluminum alloy aluminum roller |
| 10 | Total power | 110KW | 153KW |
| 11 | Machine size | L6500mm*W5500mm*H2050mm | 长6500mm宽*5800mm*高2050mm |
| 12 | Total weight | 8000KG | 11000KG |
