High speed slitting rewinding machine

slitting machine

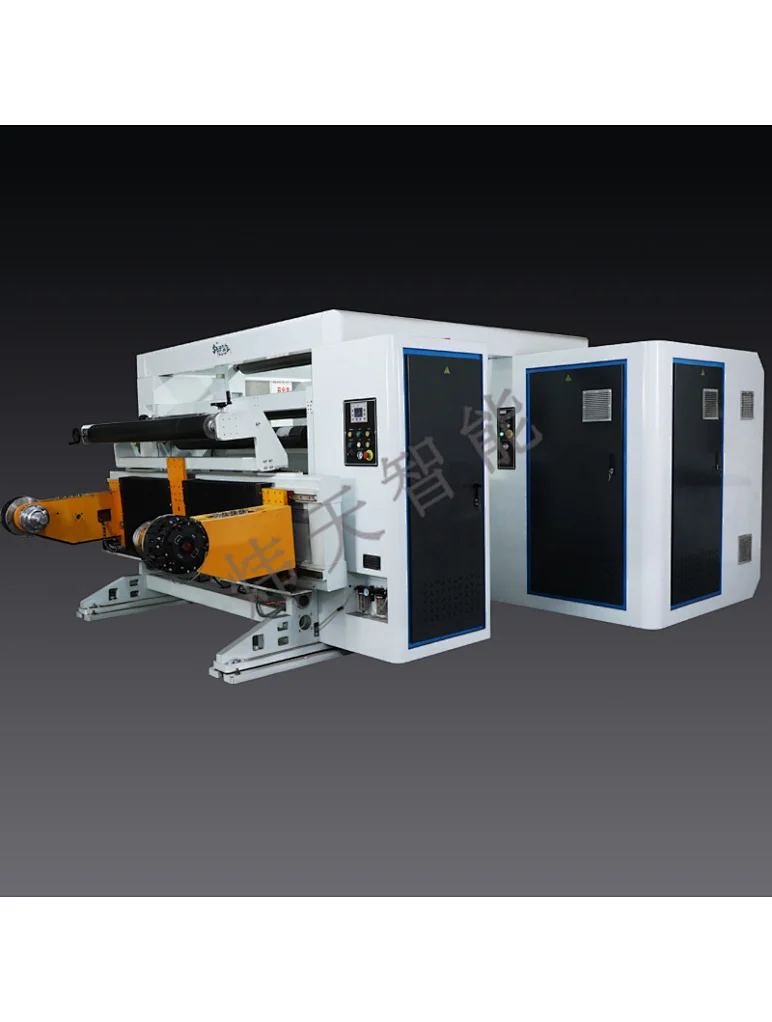

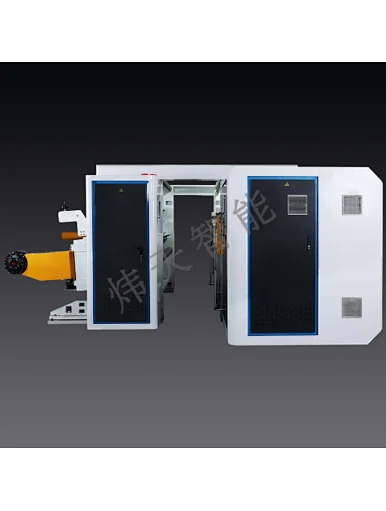

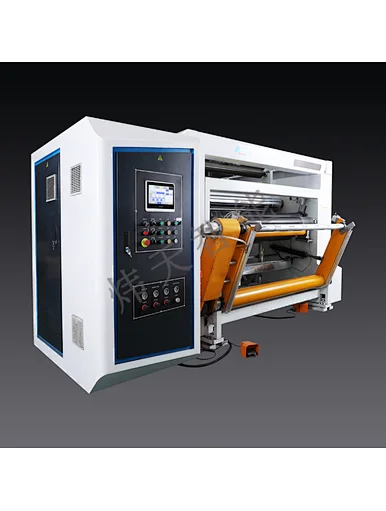

High speed slitting rewinding machine
SLM-R
1. Human-machine interface, with the functions of automatic stop of meter counting, automatic detection of remaining amount, automatic speed regulation of line speed, working parameters and display operation status can be set on the screen

2. The main machine and the rewinding adopts the independent servo motor and PLC of the domestic first-line brand for follow-up control, with a pre-tension system, high speed and stable tension.

3. 3" and 6" air shafts are used interchangeably for rewinding, and automatic hydraulic unloading saves time and effort.

4. Unwinding adopts integrated 3"/6" universal shaft-less loading, automatic hydraulic feeding, strong and powerful.

5. Equipped with a negative pressure paper connection platform, saving time for material change.

6. Web Guiding System uses EPC Web Guiding System

7. The execution and locking are pneumatically.

8. Traction adopts large diameter steel roller.

9. The slitting method adopts the upper and lower shear knives.
Quantity

Scope of application: It is suitable for rewinding and trimming of large roll diameter materials, such as large roll paper (adhesive, label paper, release paper).

NO.

Name

SLM-R 1700

1

Unwind Web Width

1700 mm

2

Rewind DIA

∮1350mm

3

Rewind DIA

∮1350mm

4

Slitting width

100mm - 1600 mm

5

 slitting Speed

500m/min

6

Inner diameter of paper roller

3 inch、6 inch

7

Accuracy of slitting

 ±0.2mm

8

Voltage

380V

9

Total power

100KW

10

Dimension

L4500 *W4000*H2150

11

Weight

 7000KG
