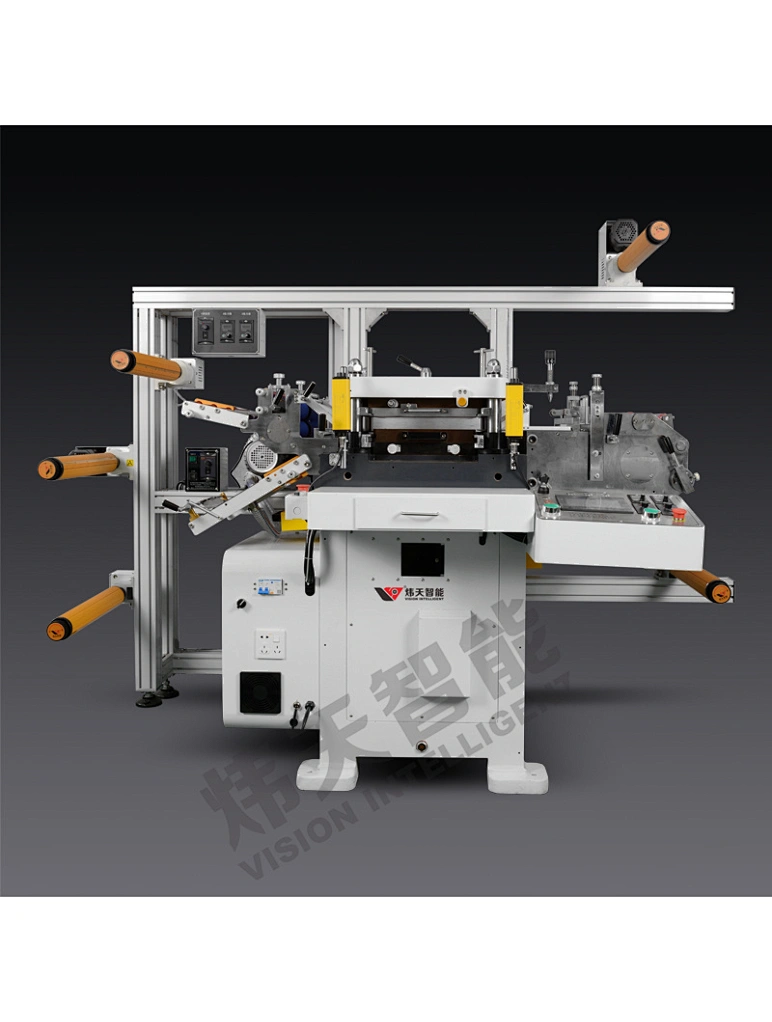

In-mold asynchronous high speed die-cutting machine

In-mold asynchronous high speed die-cutting machine

Model NO. RS-N

1.With in-mold asynchronous function, which can realize traced asynchrony and positioning asynchrony.

2.Double servo drive, low noise, stable pressure, accurate pulling material.

3.Die-cutting host, laminating machine, slicer, can achieve automatic connection.

4.Adopting electronically controlled pressure regulation and automatic lubrication system.

5.QDC dies can be installed

6.Stroke adjustment, one key switch, four kinds of die height selection.

Quantity

Name	RS-N300	RS-N350	RS-N450	Remark
Feed width	310mm	360mm	460mm	RSG high speed precision die cutting
The maximum die cutting area	300mm*250mm	350mm*300mm	450mm*390mm
The maximum operating speed	18000pcs/h	15000pcs/h	12000pcs/h
Stroke of die seat	26mm	26mm	26mm
Stroke regulation quantity	30mm	30mm	30mm
Pulling material precision	±0.03mm	±0.03mm	±0.03mm
Integration seeking precision	75mm-95mm(Adjustable）	75mm-95mm(Adjustable）	84mm-104mm(Adjustable）
Closing height of hardware die	350mm270mm39.5mm	400mm320mm39.5mm	480mm410mm40mm
Dimensions of lower template	350mm270mm29mm	400mm320mm29mm	480mm410mm38mm
Dimensions of upper template	Automatic circulation and oil supply	Automatic circulation and oil supply	Automatic circulation and oil supply
Lubrication mode	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die	Wooden plate die, rubber plate die, AB die, hardware die, QDC die, corrosion die, etching die
Applicable knife die	Auto pressure regulation	Auto pressure regulation	Auto pressure regulation

Name	RS-N300	RS-3N50	RS-N450	Remark
Asynchronous feeding width	310mm	350mm	450mm	RSN Automatic in-die asynchronous die cutting
Asynchronous feeding precision	±0.03mm	±0.03mm	±0.03mm
Feeding method	Servo feeding	Servo feeding	Servo feeding
Control mode	Magnetic powder control tension	Magnetic powder control tension	Magnetic powder control tension
Rewinding axis	1set	1set	1set
Unwinding axis	3set	3set	3set
				RSN Automatic in-die asynchronous die cutting+RSG high-speed machine
Total power	7.2kw	11.7kw	7.2kw
Outline dimensions	2700mm1300mm1850mm	2700mm1350mm1850mm	2850mm1600mm1850mm
Net weight of machine	1800kg	2100kg	2100kg
