Paper rewinding machine

slitting machine
Paper rewinding machine

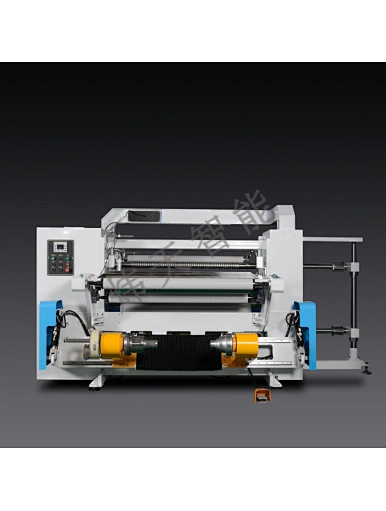

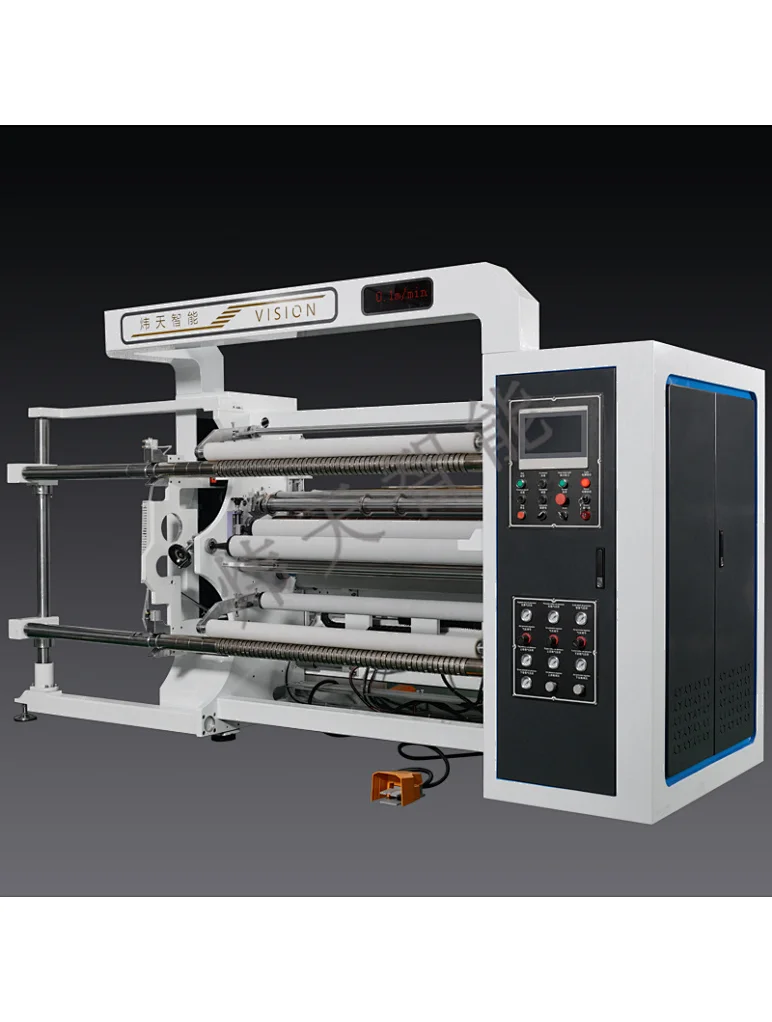

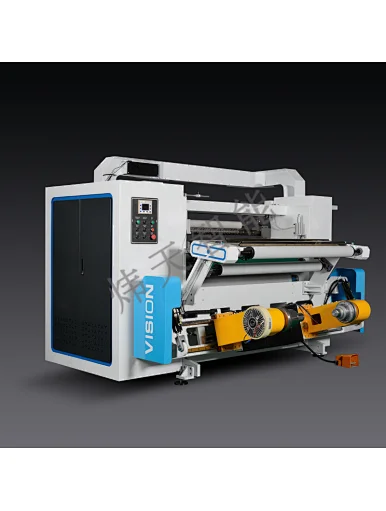

SLM-G
1. Human-machine interface, with the functions of automatic stop of meter counting, automatic detection of remaining amount, automatic speed regulation of line speed, working parameters and display operation status can be set on the screen

2. Chinese good brand for the servo motor driven and PLC with following control system. Pre-tension system, high speed and stable tension

3. Rewinding unit matches with 3” friction shafts, option with automatic unloading unit which can largely safe your time and labour.

4. Unwinding unit matches with 3” or 6” shaft-less for loading, automatic hydraulic feeding saves your time and labour.

5. Negative pressure paper platform saves your time of exchanging materials.

6. EPC web guide

7. Execution and locking pneumatically

8. Low voltage electrical appliances and pneumatic components are Chinese good brand and imported.

9. Slitting unit matches with up and down shear knives, razor knife is optional.
Quantity





Application range: Different kinds of self-adhesive labels, kraft paper, release paper


Name

SLM-G1300

SLM-G1700

Max. web width

1300 mm

1700mm

Max. unwind diameter

∮1000mm

 ∮1000mm

Max. rewind diameter

∮600mm

∮600mm

Slitting width

30 mm - 1300 mm

30 mm - 1600 mm

Max. slitting speed

300m/min

300m/min

Paper core diameter

3 inch

3 inch

Slitting precision

±0.15mm

±0.15mm

Voltage

380V

380V

Total power

16KW

18KW

Machine dimension

L2200mm*W2900mm*H2100mm

L2200mm*W3200mm*H2100mm

Gross weight

3500KG

3800KG
