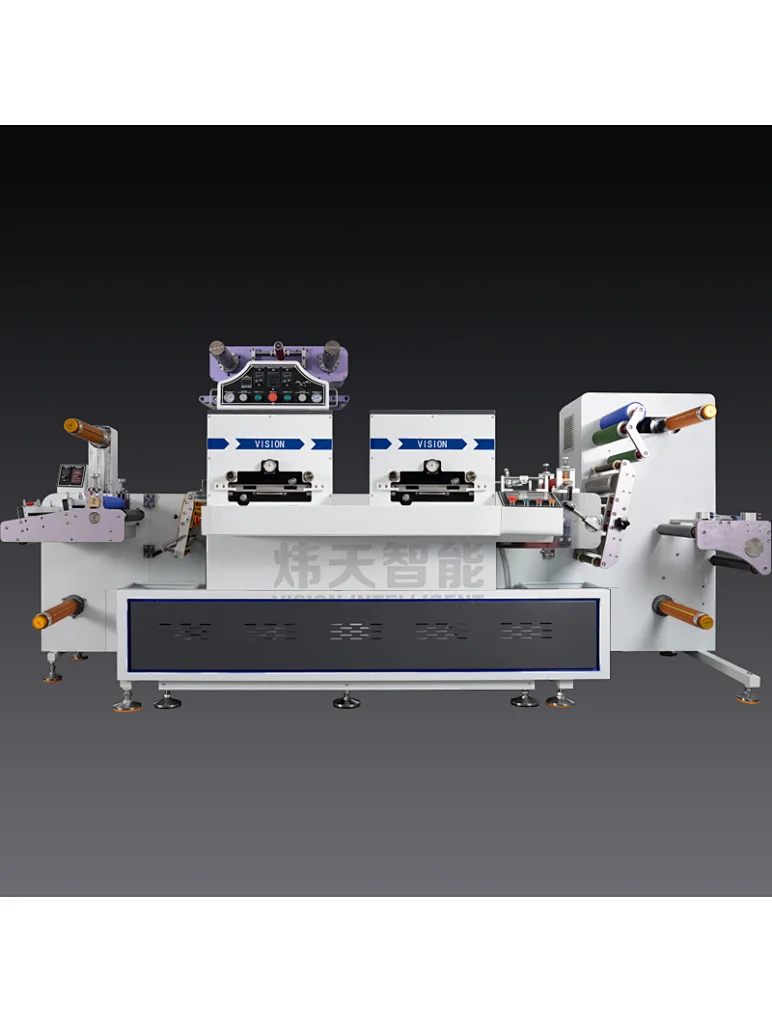

Double stations flatbed die cut machine

Double stations flatbed die cut machine
RS-E
Intermittent flat-bed die cutting unit

- Servo driven. heavy duty frame, accessible design, high precision.

- Automatic/ Manual Die Cutting Registration, die cutting speed can be up to 80m/min

- steady and with short leading time.
Quantity


NameRS-E370RS-E450RS-E530

Max web width

370mm

460mm

540mm

Maximum die-cutting and stamping area

360mm*335mm

450mm*380mm

530mm*450mm

The maximum operating speed

450pcs/min

80m/min

450pcs/min

80m/min

450pcs/min

80m/min

hot stamping speed

200pcs/min

200pcs/min

200pcs/min

Pulling material precision

±0.1mm

±0.1mm

±0.1mm

hot stamping Accuracy

±0.15mm

±0.15mm

±0.15mm

Dimensions of lower template

377mm*350mm*17mm

457mm*400mm*17mm

537mm*470mm*17mm

Dimensions of upper template

389mm*355mm*17mm

469mm*400mm*17mm

549mm*470mm*17mm

Lubrication mode

Automatic circulation and oil supply

Automatic circulation and oil supply

Automatic circulation and oil supply

Applicable knife die

Wooden plate die, rubber plate die,hardware die, corrosion die,

Wooden plate die, rubber plate die,hardware die, corrosion die,

Wooden plate die, rubber plate die,hardware die, corrosion die,

Total power

16kw

18kw

20kw

Outline dimensions

4500mm*1450mm*1860mm

4500mm*1530mm*1860mm

4500mm*1610mm*1860mm

Net weight of machine

5000kg

5400kg

5800kg
