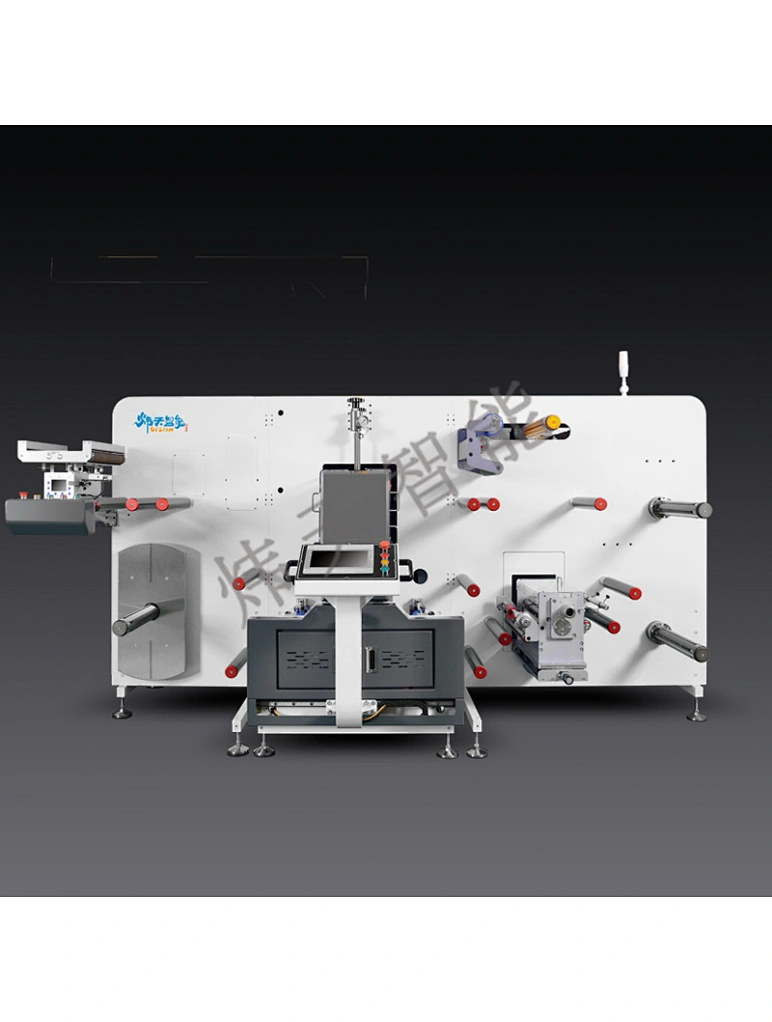

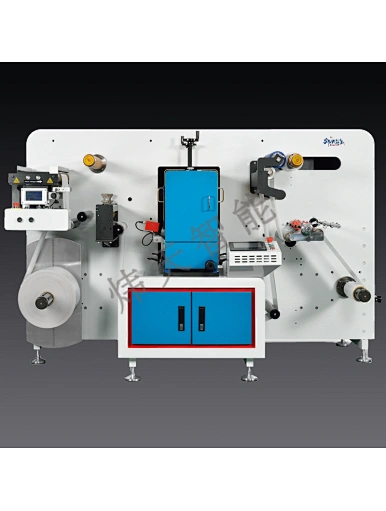

Semi-rotary die cutting machine
RD-330/370R
1.All servo motor control
2.Die cutting unit can be exchanged between full rotary and semi rotary
3.Servo motor for rewind, can be both forward and reverse rewinding.
4.Snow ball matrix rewind.
5.Optional on IML function, gap master, automatic slitting, IML, sheeting, dual rewinds...etc.
2.Die cutting unit can be exchanged between full rotary and semi rotary
3.Servo motor for rewind, can be both forward and reverse rewinding.
4.Snow ball matrix rewind.
5.Optional on IML function, gap master, automatic slitting, IML, sheeting, dual rewinds...etc.
Quantity

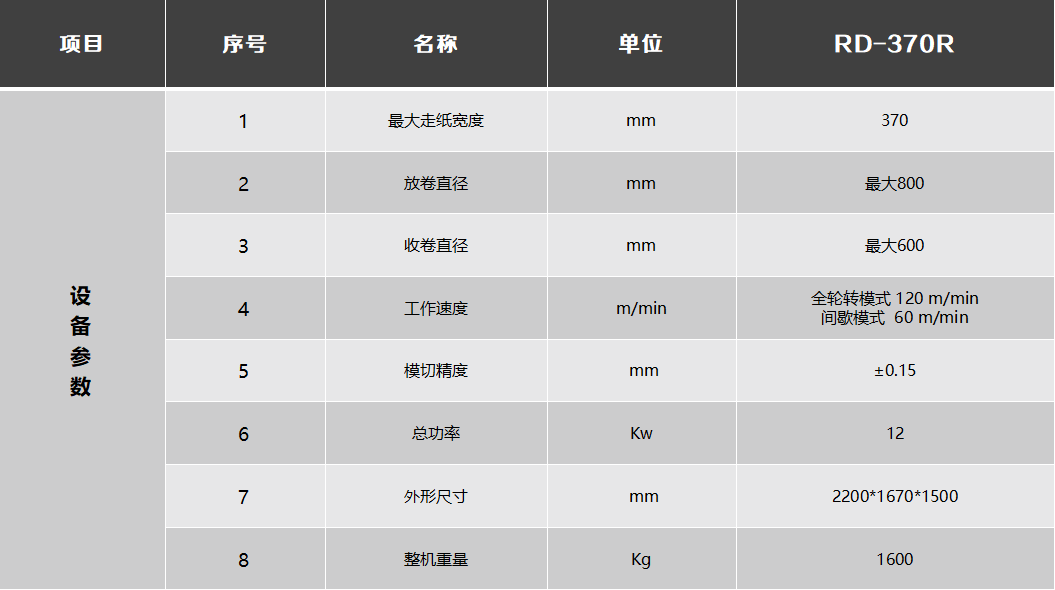

Name | Unit | RD-330R | RD-370R |
Max. Roll Width | mm | 340 | 380 |
Max. Paper Width | mm | 330 | 370 |
Max. Unwind Diameter | mm | 800 | 800 |
Max. Rewind Diameter | mm | 600 | 600 |
Max die-cutting Speed | m/min | Full rotary 120m/min Semi rotary 60m/min | Full rotary 120m/min Semi rotary 60m/min |
Die-cutting Accuracy | mm | ±0.15 | ±0.15 |
Total power | Kw | 12 | 12 |
Dimension | mm | 2200*1620*1500 | 2200*1670*1500 |
Weight | Kg | 1500 | 1600 |
