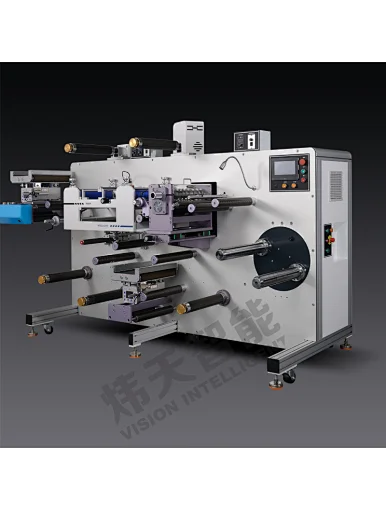

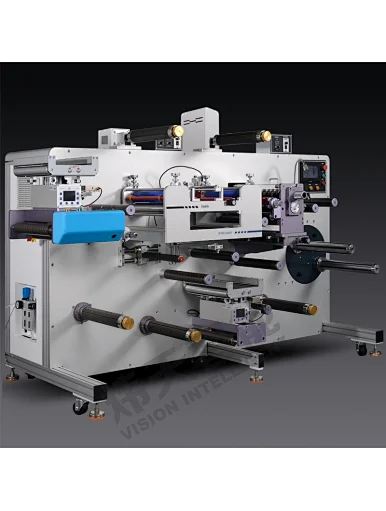

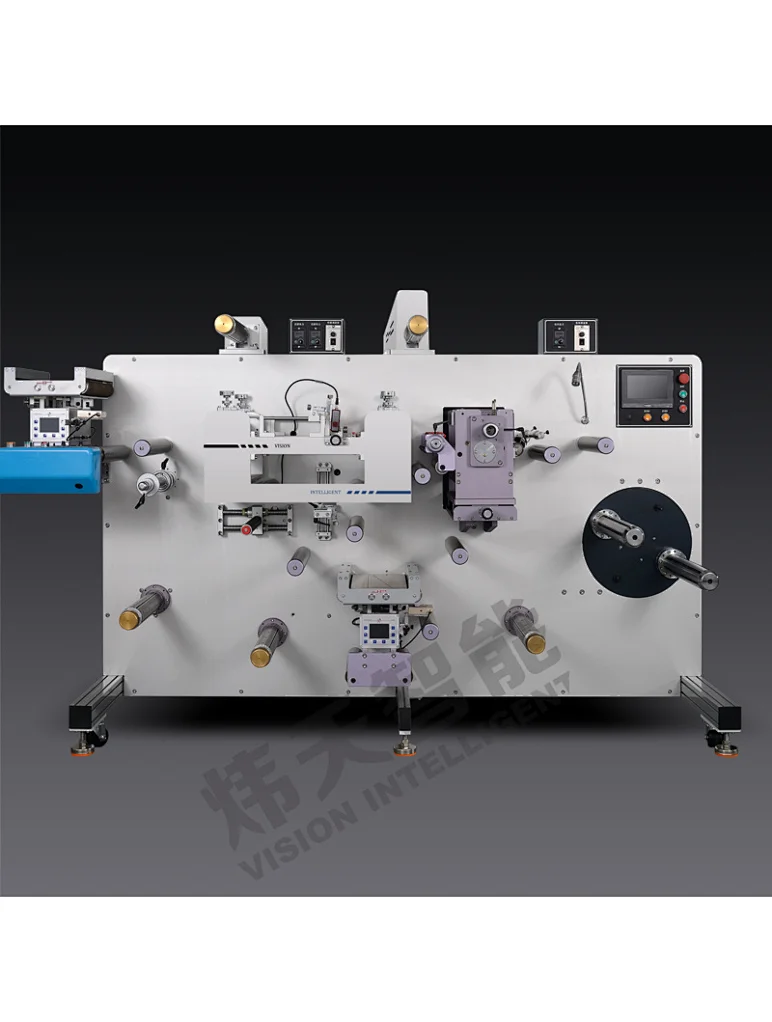

Reel-to-Reel Laminating Machine
RSH-R
1
1. Suitable for high-precision lamination of various materials requiring synchronous transfer and asynchronous transfer, intelligent, convenient and efficient.
2. The equipment is fully functional and compatible with multiple types of material lamination.
3. Each part can be independently controlled, stable and accurate. Easy to operate
2. The equipment is fully functional and compatible with multiple types of material lamination.
3. Each part can be independently controlled, stable and accurate. Easy to operate
Quantity
Name | RSH-R350 |
|
Max web width | 350mm | 450mm |
Sync laminate speed | 35m/min | 35m/min |
Asynch laminate speed | 15m/min | 15m/min |
Positioning accuracy | ±0.05mm | ±0.05mm |
Maxi rewind diameter | 600mm | 600mm |
Revinding servo | 1set | 1set |
Unwinding Servo | 1set | 1set |
Machine size( length*width* height) | 2350mm×1220mm×1440mm | 2350mm×1220mm×1440mm |
Machine net weight | 400KG | 400KG |
Total power | 8.5kw | 8.5kw |
Power | 220V | 220V |
PU/silicone roll | 70-75degrees | 70-75degrees |
