Single Color Screen Printing Machine

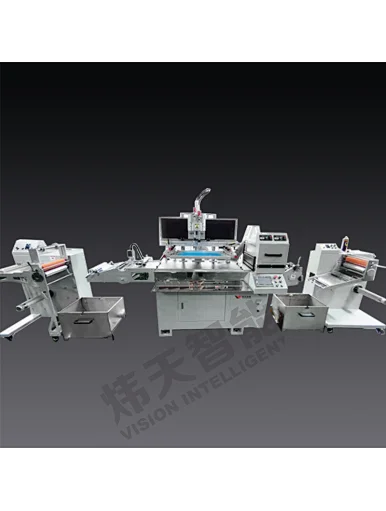

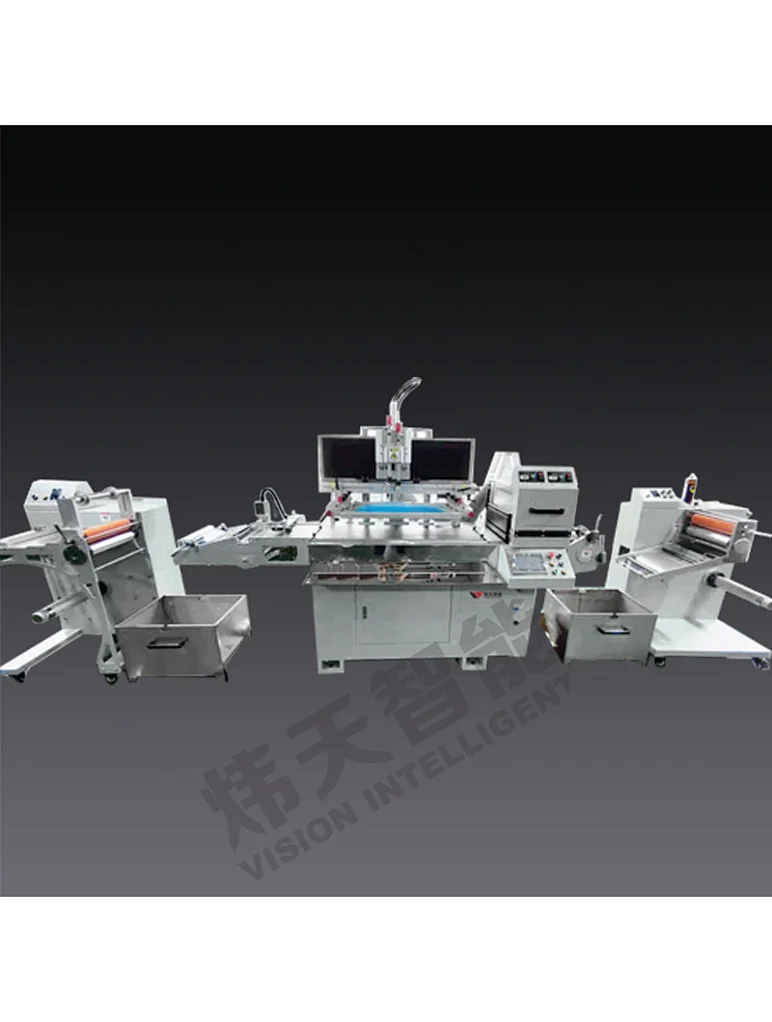

Electronic die cutting

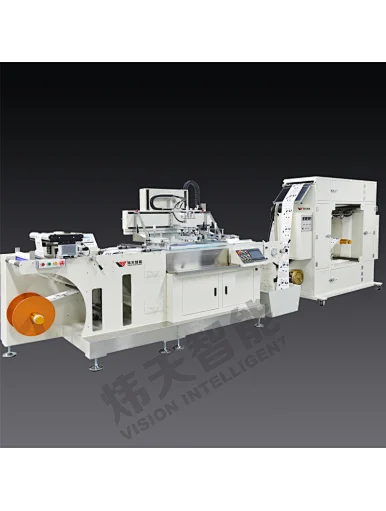

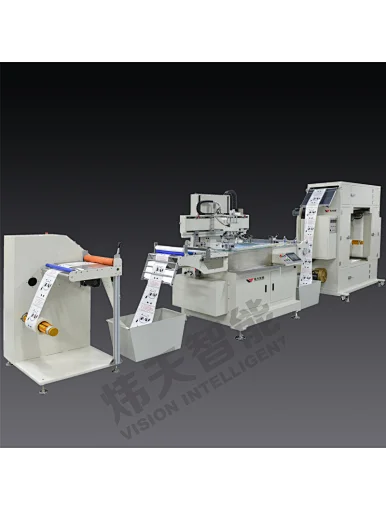

Single Color Screen Printing Machine
RSC-S
1.Multi-color printing automatic electronic eye alignment ,repeatable multi-color registration ,computer control, Simpie operation and accurate
color matching can improve printing quality.

2.The printing speed can be set at will ,the number of sheete can be calculatend ,and the number of sheets can be autom -atically stopped

3.Can print various printing materials :such as self -adhesive trademark
paper ,teduolong ,PVC PET, transfer paper film ,soft circuit board ,mobile
phone keys and other materials

4.Can be connected to a variety of peripheral equipment ,rewinder,cutter,UV dryer
Quantity

name

RSC-S350

RSC-S450

RSC-S550

Maximum printing width

300mm

400mm

500mm

Printing speed

80(r/min)

80(r/min)

80(r/min)

Printing area

300mm*400mm

400mm*600mm

500mm*600mm

Screen frame area

500mm5800mm

600mm*800mm

700mm900mm

Printing Accuracy

8 filament

8 filament

8 filament

Power

2KW

2KW

2KW

Mechanical dimensions

2100mm*1100mm*1700mm

2100mm*1100mm*1800mm

2800mm*1300mm*1900mm

Mechanical net weight

800kg

950kg

1100kg
