slitting machine

slitting machine
slitting machine

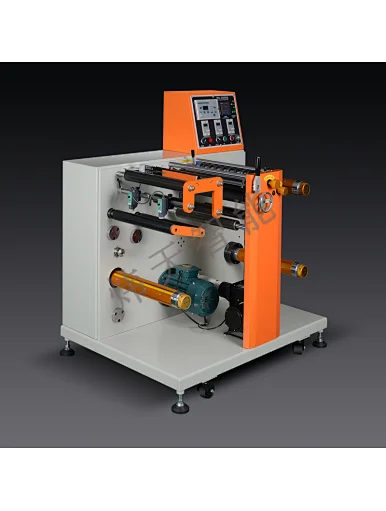

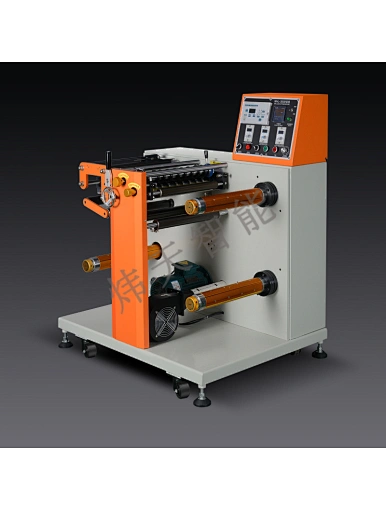

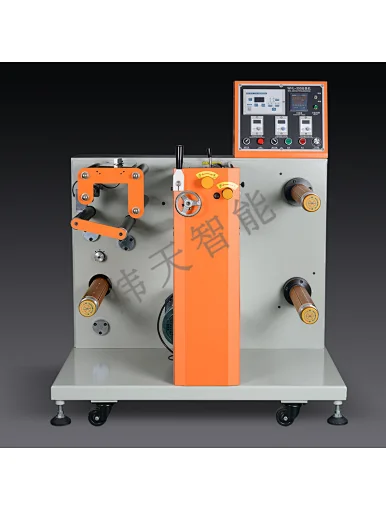

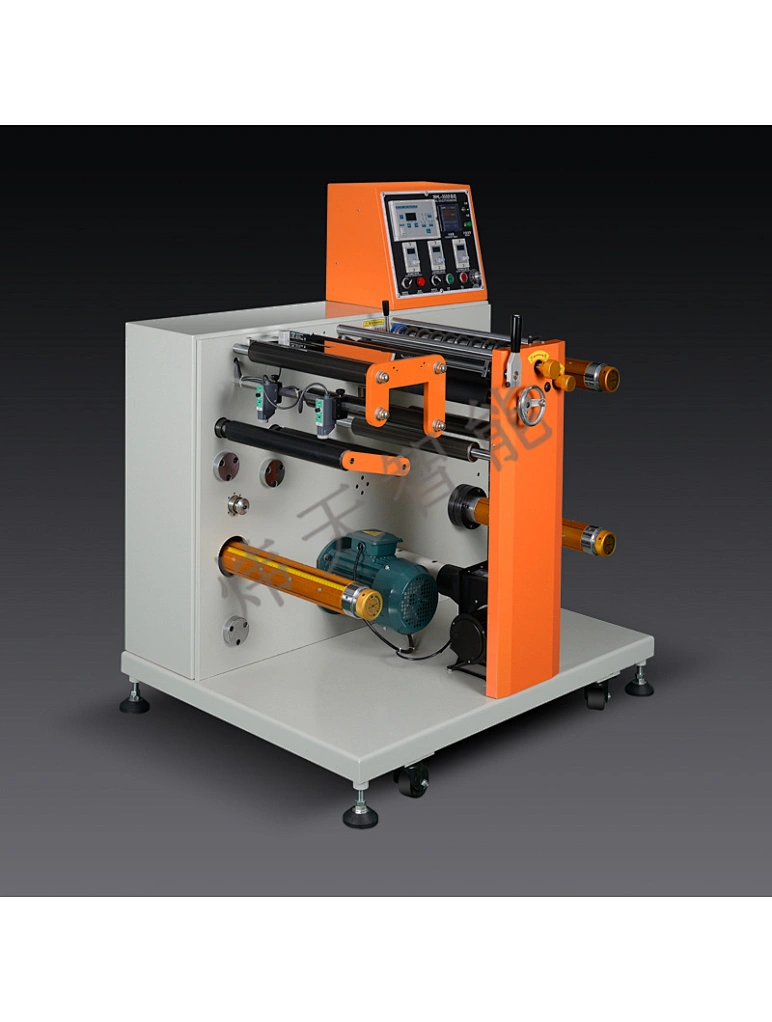

SLM-N
1. High slitting speed, accurate and efficient

2. Controlling the tension of unwinding and rewinding material with magnetic powder

3. The main part of the machine adopts shear knife design imported from Japan. Import bearing, hard bearing steel shaft, ensures the slitting accuracy more effectively

4. With automatic meter counting, sheeting counting, length setting and automatic stop.

5. The whole machine has the advantages of compact structure, convenient and easy operation.。
Quantity


Scope of application: suitable for narrow slitting of roll material and post-press label slitting

NO.

Name

SLM-N350

1

Web with

350 mm

2

Unwind diameter

500 mm

3

Rewind diameter

500 mm

4

Max. Slitting speed

120m/min

5

Unwinding roll diameter

3"

6

Rewinding shaft diameter

3"

7

Rewinding shaft quantity

2pieces

8

Voltage and total power

220V /2.0KW

9

Magnetic powder quantity

3sets

10

Dimension

1250 mm *900mm *1430mm
