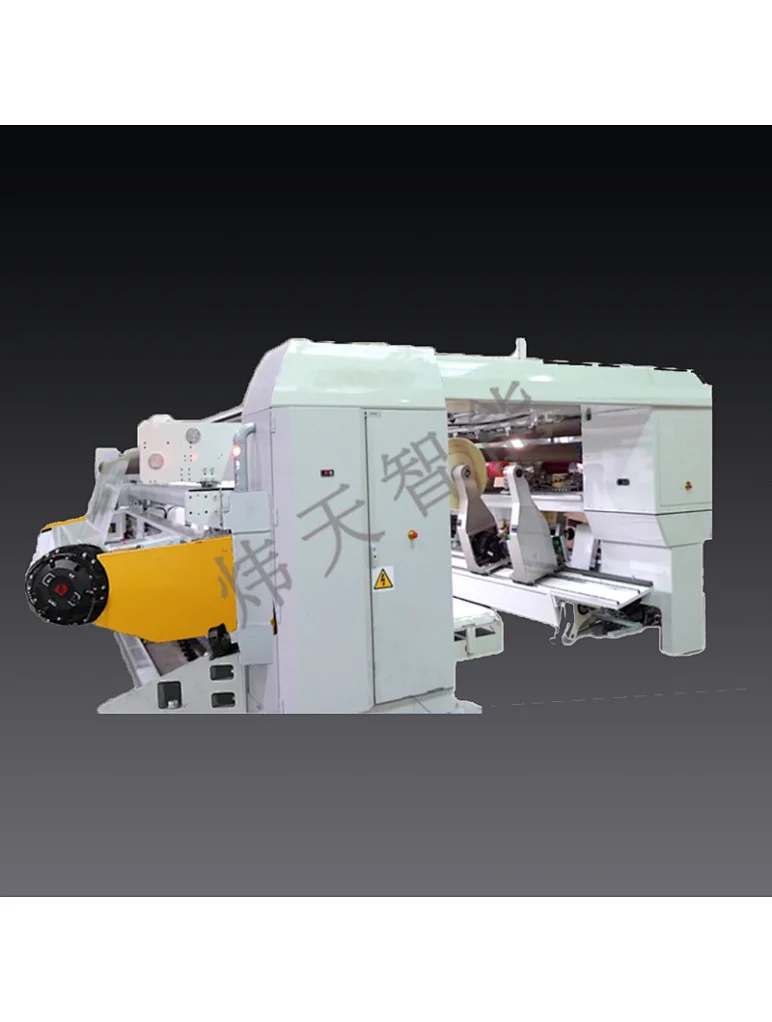

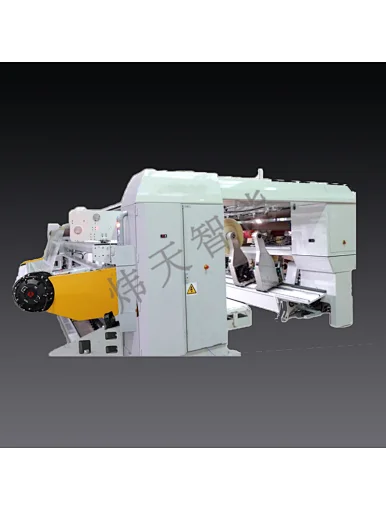

slitting rewinding machine

slitting machine
slitting rewinding machine
SLM-W
1. High speed efficiency

2. Stable performance, convenient operation

3. Intelligent, high degree of automation, improvement accuracy and productivity.

4. Frame structure optimization, make machine operation more stable

5. Effectively avoid warping, tension is uniform, hardness can be adjusted
Quantity


Application range:  PET films, release films,etc.

NO.

Name

SLM-W2700

1

Max. Web Width

2700mm

2

Max. Unwind Diameter

∮1300mm

3

Max. Rewind Diameter

∮800mm

4

Slitting Width

50mm-2600mm

5

Slitting Speed

500m/min

6

Paper core

3 inch、6 inch

7

Slitting accuracy

 ±0.1mm

8

Working voltage

380V

9

Total power

75KW

10

Machine size

L6100mm*W5300mm*H2300mm

11

Machine weight

10T
