slitting rewinding machine

slitting machine
slitting rewinding machine

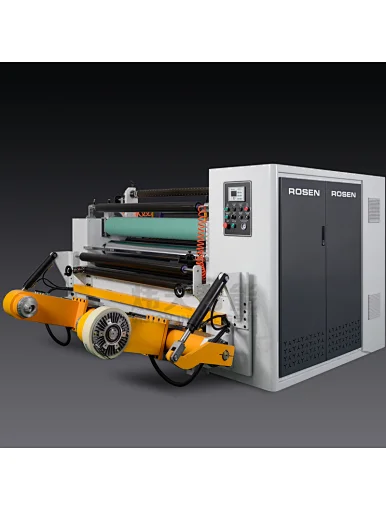

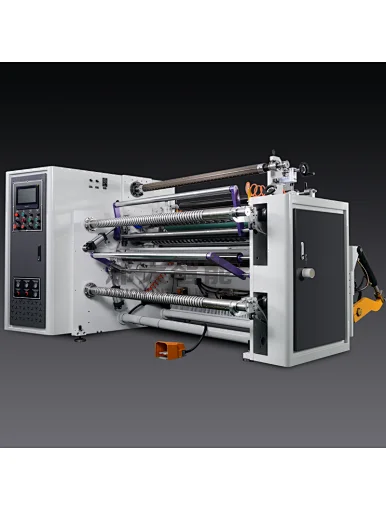

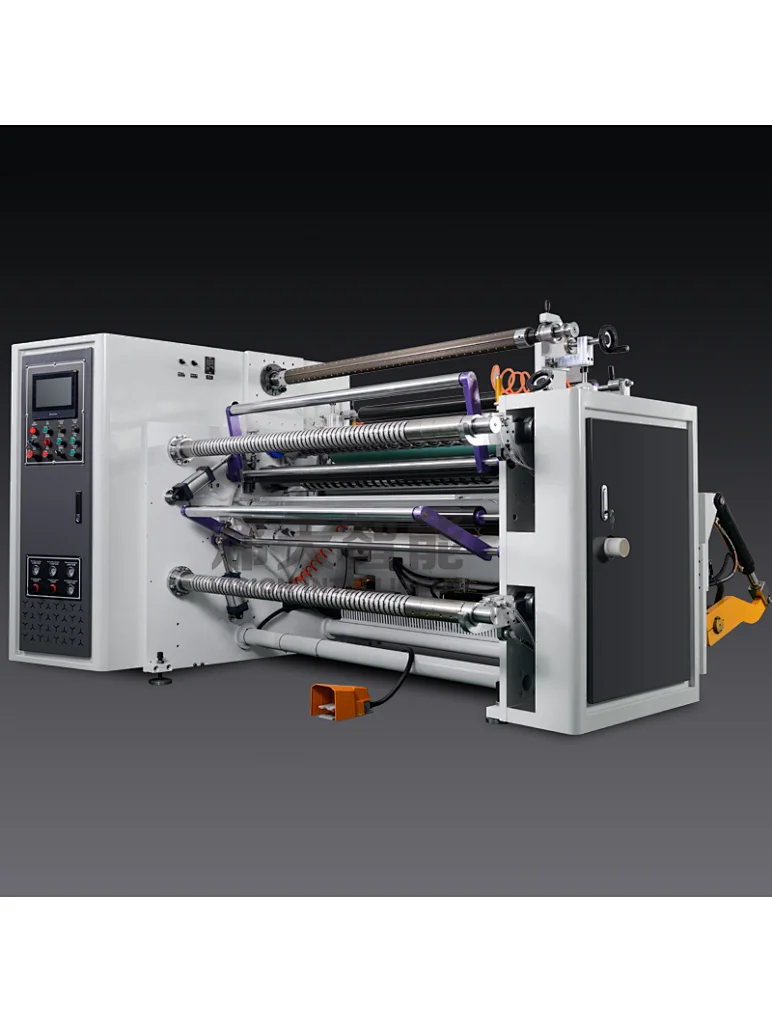

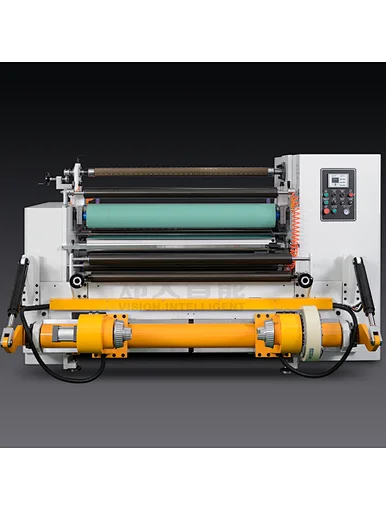

SLM-D
1. Human-machine interface, with the functions of automatic stop of meter counting, automatic detection of remaining amount, automatic speed regulation of line speed, working parameters and display operation status can be set on the screen

2. Low voltage electrical appliances and pneumatic components are Chinese good brand and imported.

3. Chinese good brand for the servo motor driven and PLC with following control system. Pre-tension system, high speed and stable tension

4. Rewinding unit matches with 3’ Spline type friction shafts, it has option with automatic unloading push-out unit which can safe your time and labour.

5. Unwinding unit matches with all-in-line 3’ or 6’ shaft-less loading. Automatic hydraulic feeding saves your time and labour.

6. EPC web guide

7. Execution and locking pneumatically

8. Dual big diameter nip rollers for paper path.

9. It’s assembled with the laminating device, which can be widely used in the protective film industry.

10. Slitting unit matches with up and down shear knives, razor knife is optional.
Quantity




Application range:  PET films, release films, protective film etc.


Name

SLM-D1300

SLM-D1700

Max. web width

1300 mm

1700mm

Max. unwind diameter

 ∮1000mm

 ∮1000mm

Max. rewind diameter

∮450mm

∮450mm

Slitting width

50 mm - 1300 mm

50 mm - 1600 mm

Slitting speed

200m/min

200m/min

Paper core

3 inch

3 inch

Slitting precision

±0.15mm

±0.15mm

Voltage

380V

380V

Total power

10KW

14KW

Machine dimension

 L2580mm*W2590mm*H1520mm

L2580mm*W2990mm*H1520mm

Gross weight

3200KG

3500KG
