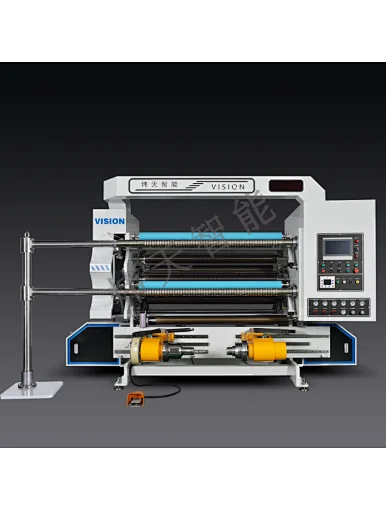

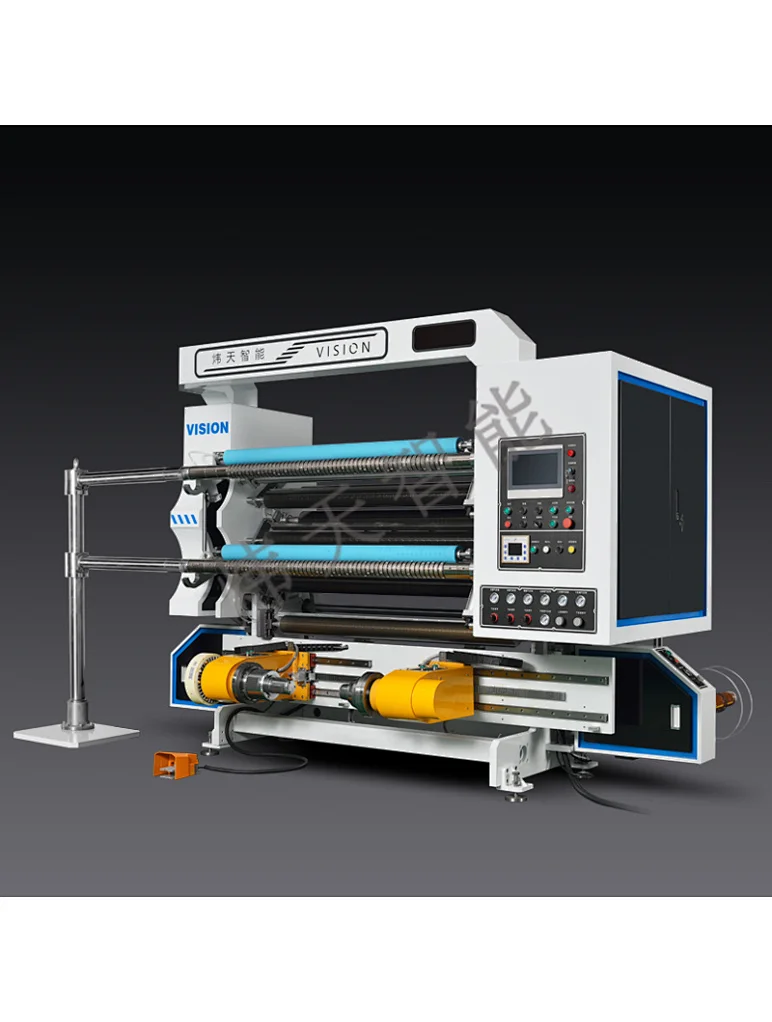

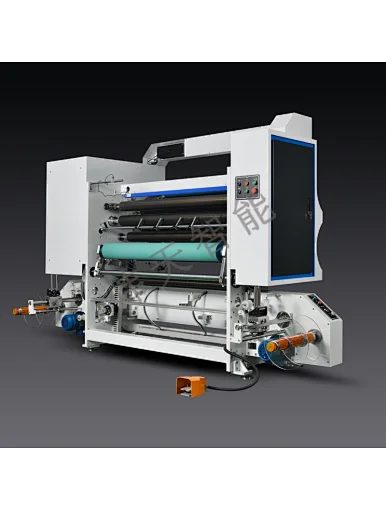

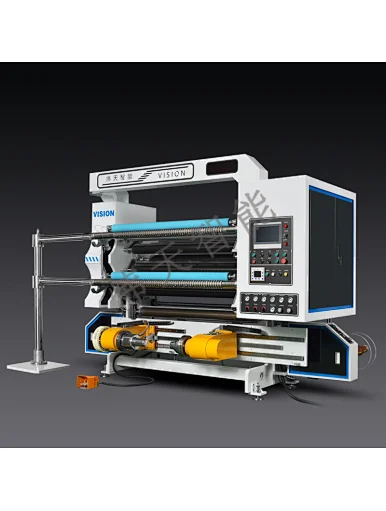

Vertical slitting rewinding machine
SLM-V
1. Human-machine interface, with the functions of automatic stop of meter counting, automatic detection of remaining amount, automatic speed regulation of line speed, working parameters and display operation status can be set on the screen
2. The main machine and the rewinding adopts the independent servo motor and PLC of the domestic first-line brand for follow-up control, with a pre-tension system, high speed and stable tension.
3. Rewinding adopts 3 spline slip friction shaft.
4. Unwinding adopts integrated 36 universal shaft-less loading.
5. The Web Guiding System adopts EPC Web Guiding device
6. Traction adopts active steel rollers, wear-resistant rubber on the surface of passive pressure roller
7. Low-voltage electrical appliances and pneumatic components are domestic famous and imported
8. Slitting method adopts razor blade slitting method
2. The main machine and the rewinding adopts the independent servo motor and PLC of the domestic first-line brand for follow-up control, with a pre-tension system, high speed and stable tension.
3. Rewinding adopts 3 spline slip friction shaft.
4. Unwinding adopts integrated 36 universal shaft-less loading.
5. The Web Guiding System adopts EPC Web Guiding device
6. Traction adopts active steel rollers, wear-resistant rubber on the surface of passive pressure roller
7. Low-voltage electrical appliances and pneumatic components are domestic famous and imported
8. Slitting method adopts razor blade slitting method
Quantity
Material types are applicable to various flexible packaging films: CPP, BOPP, PET, PE, foil film, aluminized films and other soft non-adhesive materials.
| NO. | Name | SLM-V1300 |
| 1 | Max web width | 1300 mm |
| 2 | Unwind DIA | ∮800mm |
| 3 | Rewind DIA | ∮450mm ∮3 friction shaft |
| 4 | Min slit width | 30 mm - 1300 mm |
| 5 | Mechanical speed | 500m/min |
| 6 | Main motor | 2.9kw servo motor |
| 7 | Winding motor | 2.9kw servo motor |
| 8 | Transfer method | synchronous belt |
| 9 | Guide shaft | ∮80~∮100Hard aluminum alloy aluminum roll10、Correction range:150mm、precision ±0.1mm |
| 10 | total machine power | 12kw |
| 11 | Work Voltage | Three-phase four-wire system AC380V |
| 12 | Weight | 2800kg |
| 13 | Dimension | L1600mm*W3300mm*H2100mm |
